Technical specifications
11.11 Interfaces of the connection box standard and connection box advanced
Mobile Panels 2nd Generation
252 Operating Instructions, 09/2018, A5E33876626-AC
Enabling button

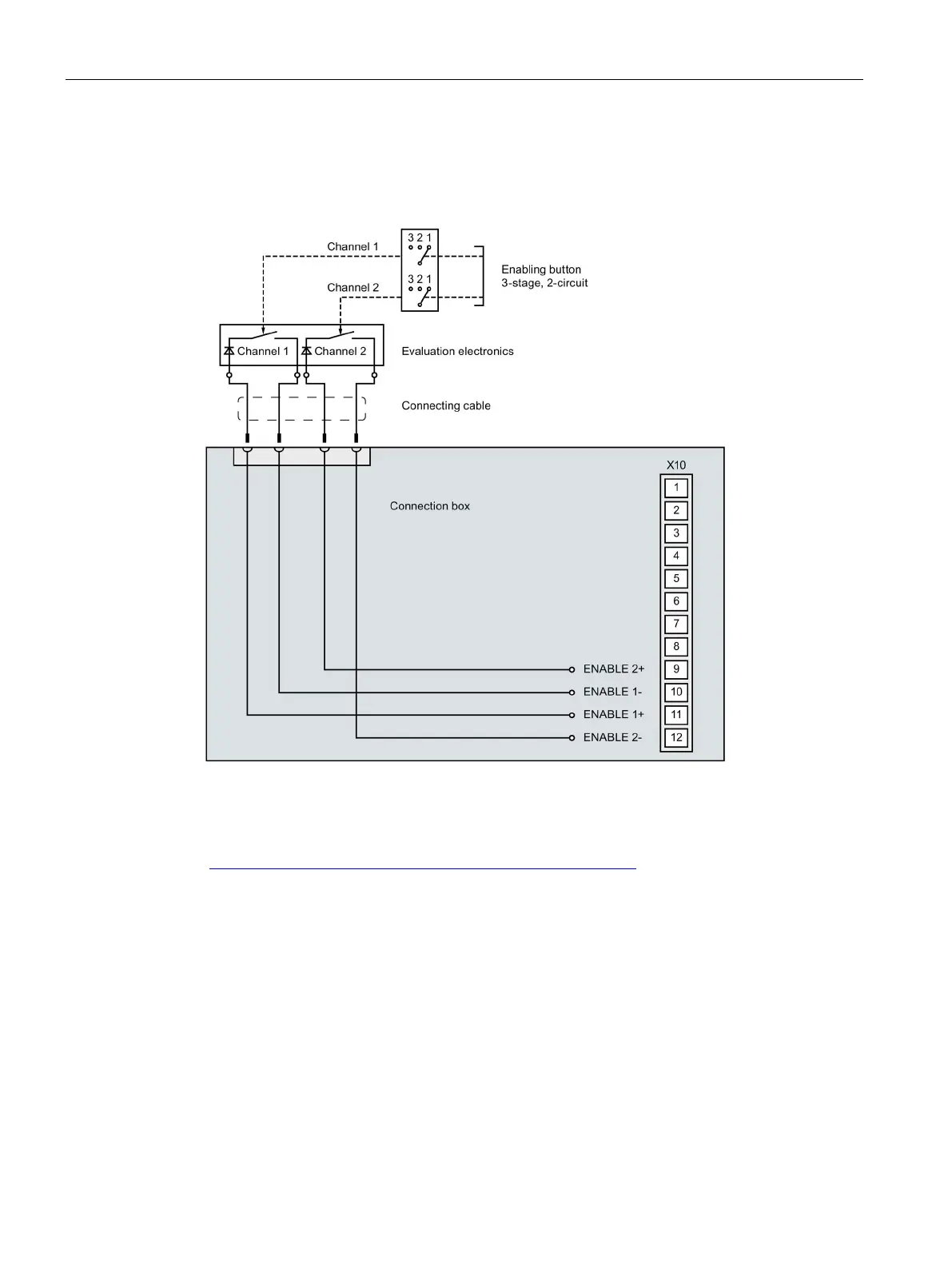

The figure below shows the wiring of the enabling button in the connection box standard and
in the connection box advanced.
See also
FAQs Mobile Panels 2nd Generation
(https://support.industry.siemens.com/cs/ww/en/ps/14746/faq
)
