Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
140 Operating Instructions, 07/2017, A5E36770603-AB

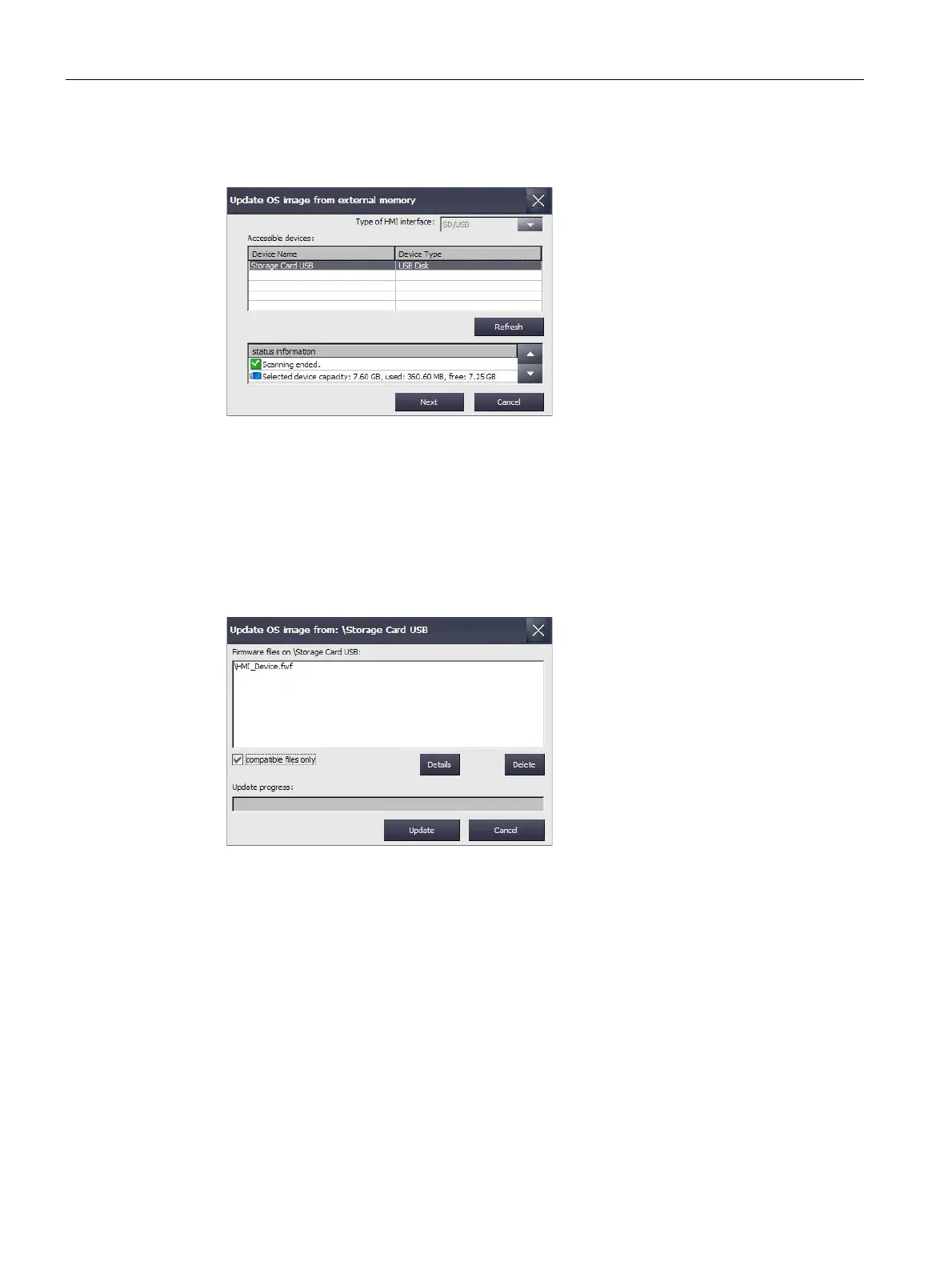

3. Press the "Next" button. The "Update OS image from external memory" dialog is
displayed.
The "0 devices found" message appears if there is no storage medium in the HMI device
or if it is defective. Insert a storage media or replace the storage medium.
4. Press the "Refresh" button, if necessary. The "Accessible devices:" group is updated. The
HMI device checks the storage medium. Information about this storage medium is
displayed in the "status information" field.
5. Select the storage medium with the required HMI device image in the "Accesible
devices:" group.
6. Press the "Next" button. The following dialog is displayed.
7. Select the required HMI device image file in the "Firmware files on" group.
8. If you need information about the selected file, press the "Details" button. The "Properties
of image file" dialog containing the following information is displayed:
– "Supported": HMI devices that are compatible with the HMI device image
– "Image version": Version of the HMI device image
– "Image size": Size of the image file
– "Creation": Date the image file was created
