Mounting and connecting the HMI device
3.1 Preparing for installation
Comfort Panels
36 Operating Instructions, 07/2017, A5E36770603-AB

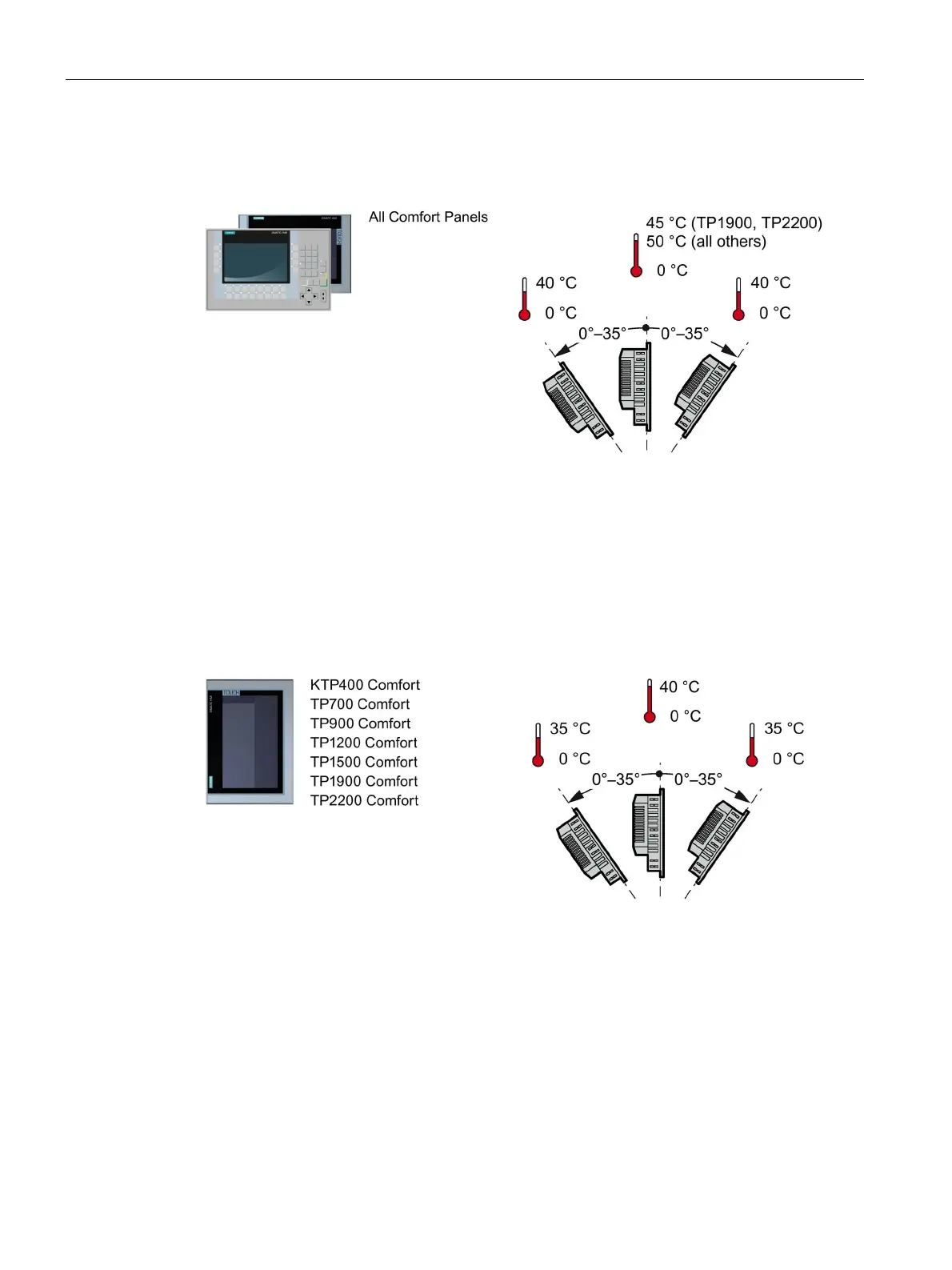

Mounting in horizontal format
All HMI devices are suitable for horizontal mounting positions.
A maximum ambient temperature of +50 °C is permitted for vertical mounting (0° tilt angle); a
maximum of +40 °C is permitted for inclined mounting.
The ambient temperature for TP1900 and TP2200 Comfort when installed vertically should
not exceed +45 °C.
Mounting in vertical format
The Touch HMI devices are also suitable for mounting in vertical format. Select the
appropriate screen format during configuration.
A maximum ambient temperature of +40 °C is permitted for vertical mounting (0° tilt angle); a
maximum of +35 °C is permitted for inclined mounting.
