Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
135

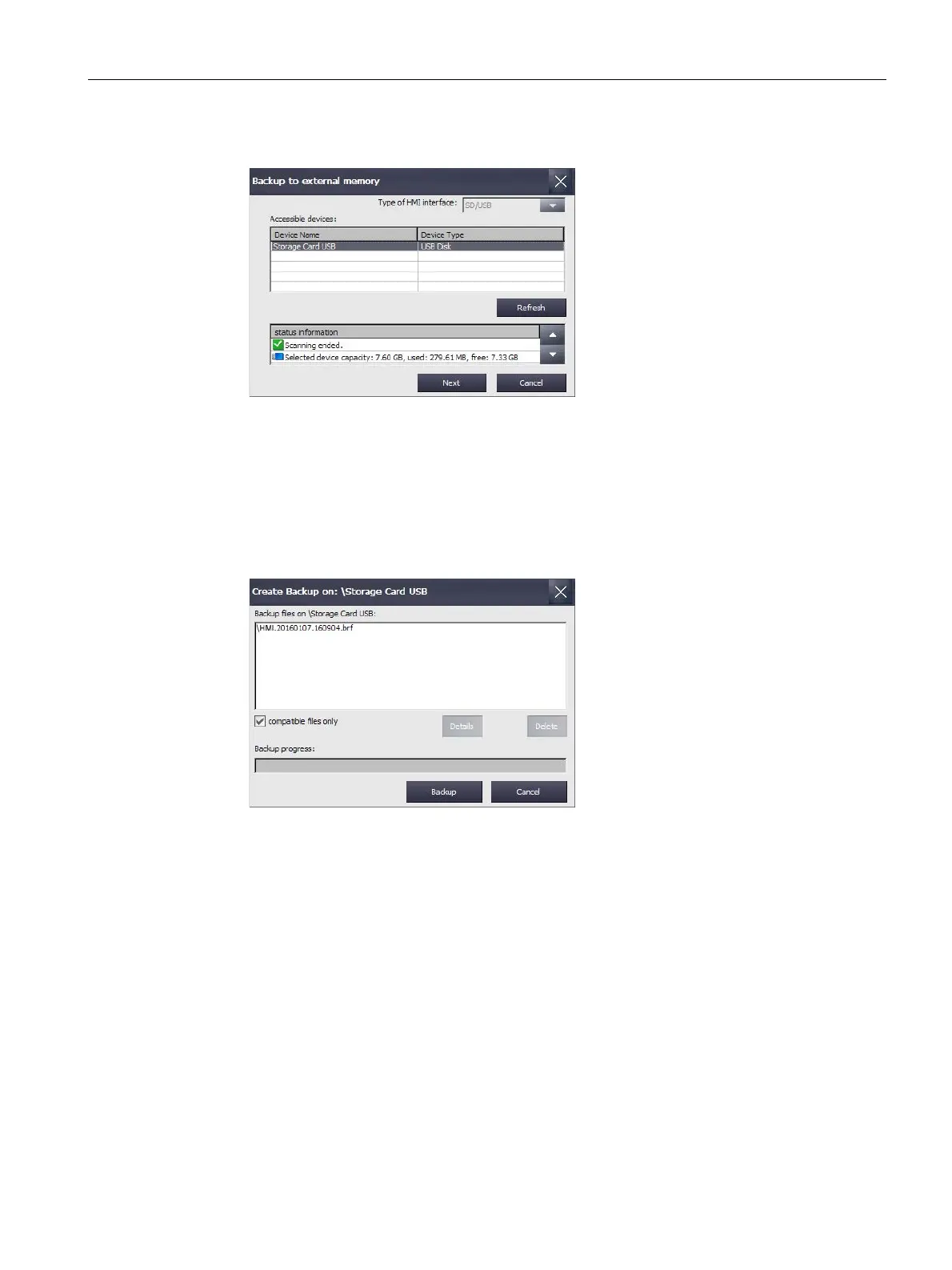

2. Press the "Next" button. The following dialog appears:
The "0 devices found" message appears if there is no storage medium in the HMI device
or if it is defective. Insert a storage media or replace the storage medium.
3. Press the "Refresh" button if necessary.
The "Accessible devices" list is updated and the "status information" field contains
information about the selected storage medium. Note the memory capacity displayed.
4. Select a storage medium from the "Accessible devices" list.
5. Press the "Next" button. The following dialog appears:
6. If you only want to backup compatible files, select the "compatible files only" check box.
– Check box cleared:
The list displays all backup files. This gives the user an overview of the files stored on
the storage medium.
– Check box selected:
The list only displays the backups that are compatible with the device currently in use.
