Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
151

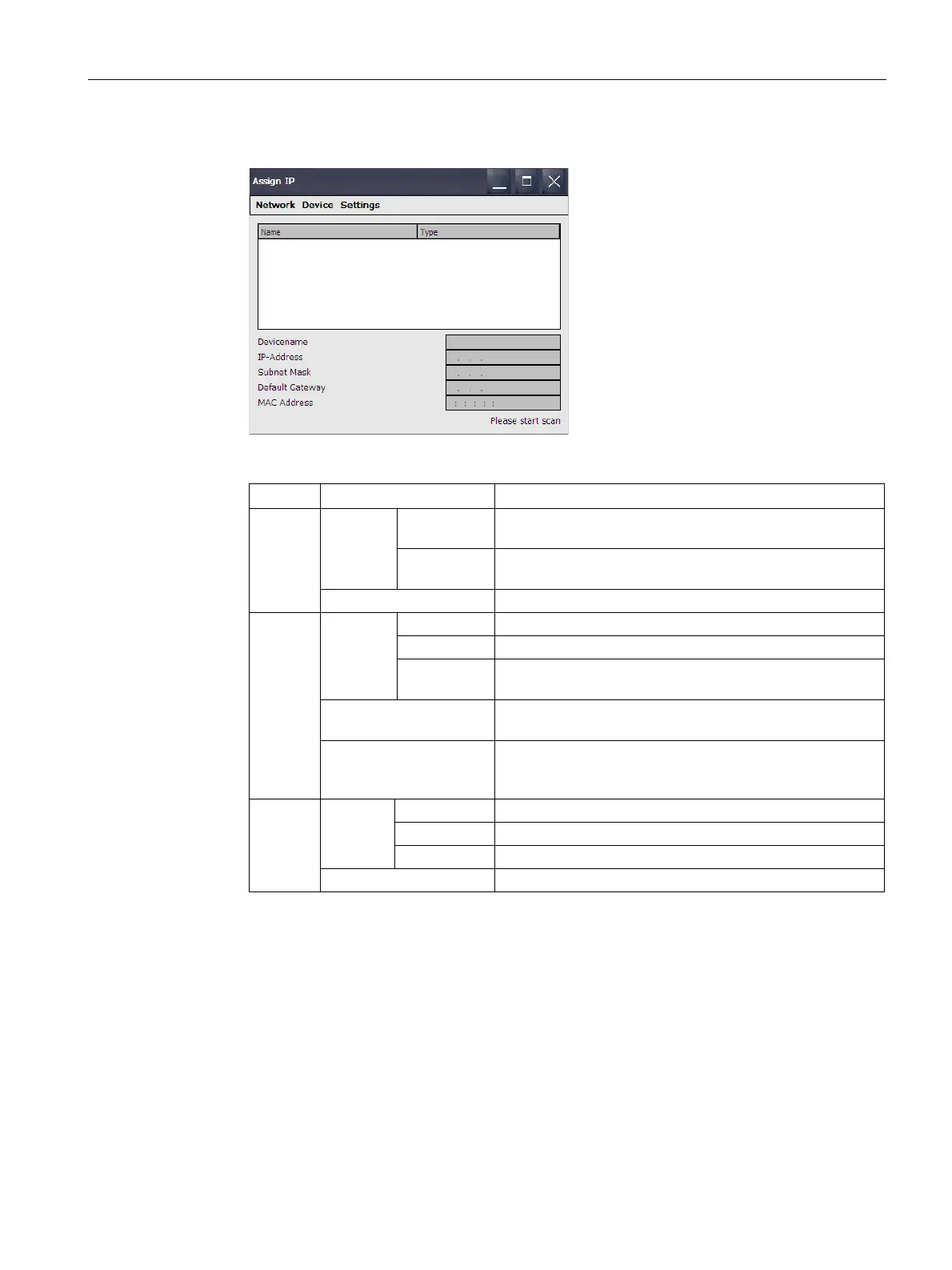

3. Open the "Assign IP" dialog using the "Assign IP" button.
The following functions are available in the menu bar of this dialog:
Network Scan
Start Start search for available devices in the subnet of the HMI
device
Stop Stop search for available devices in the subnet of the HMI
Close the "Assign IP" dialog
Device Download
Update IP address of the selected device
Update device name of the selected device
All Update IP address and device name of the selected
Flash Causes the display of the selected HMI device or the
"RUN/STOP" LED of the selected controller to flash
Reset to Factory Deletes the IP address and device name of the selected
device, provided that this function is supported by the
selected device and allowed by the security settings.
Settings Filter
Find all controllers in the subnet of the HMI device
MAC Address Find a controller with a specific MAC address
Find controllers of a certain type
Select the interface of the HMI device for the search
4. Use "Settings > Interface" to select the interface of the HMI device that is connected to
the subnet that is to be searched for other devices, e.g. X1.
5. If necessary, select "Settings > Filter" to find a controller with a specific MAC address or
controllers of a certain type.
6. Select "Network > Scan > Start".
The search for accessible devices located in the subnet of your HMI device is started.
