Siemens SIMATIC S5 CPU Series User Manual

SIMATIC S5 CPU Direct Driver
GP-Pro EX Device/PLC Connection Manual
8
3 Example of Communication Setting
Examples of communication settings of the Display and the External Device, recommended by Digital
Electronics Corp., are shown.

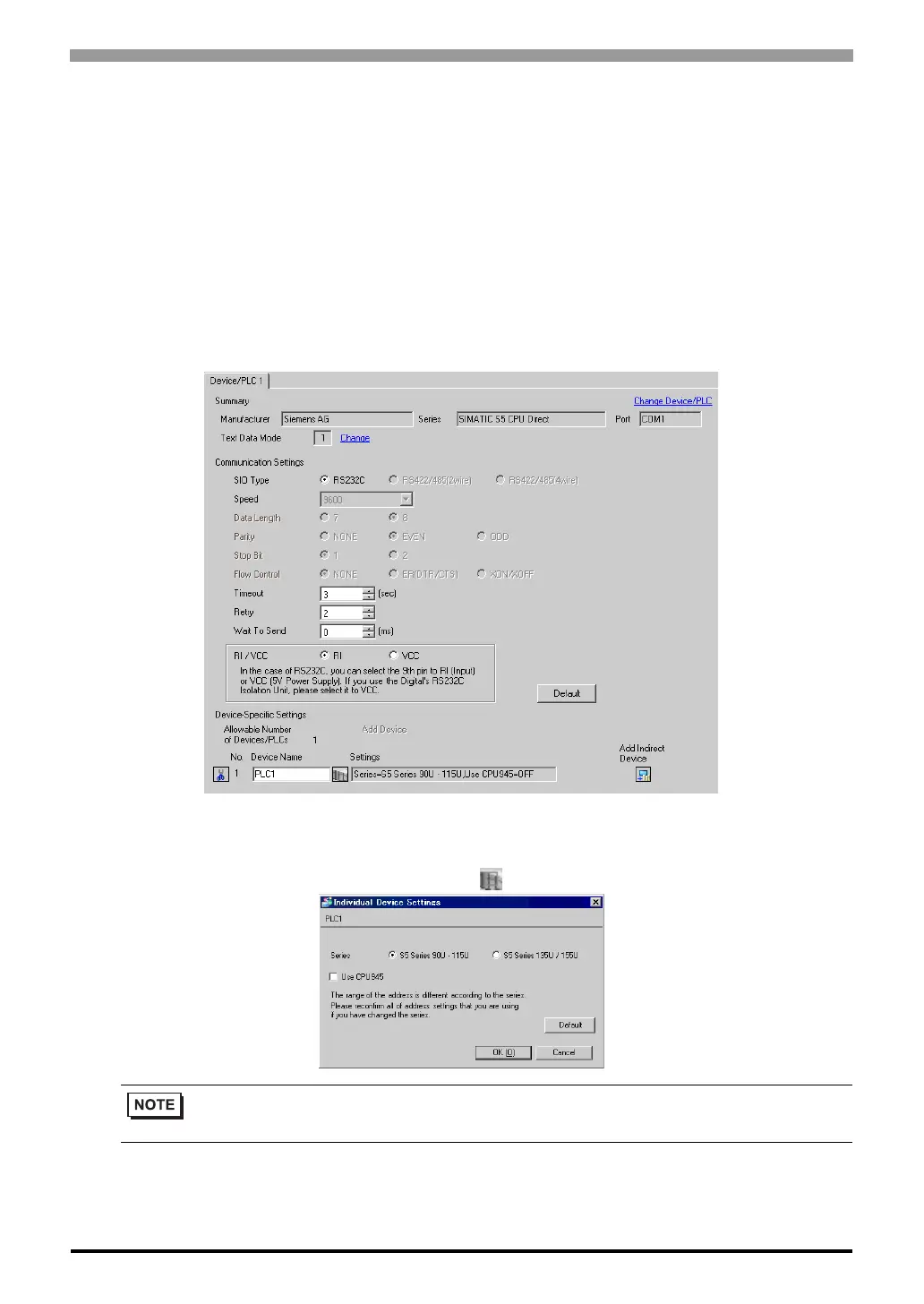

3.1 Setting Example 1
 Settings of GP-Pro EX
 Communication Settings
To display the setup screen, from the [Project] menu, point to [System Settings] and select [Device/PLC].
 Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
 Settings of External Device
The communication setting of the External Device is fixed.
You need not set it.
• When you use CPU 945, CPU946, CPU947 or CPU948, check the [Use CPU945] checkbox or
[Use CPU946/947/948] checkbox. The checkbox is switched depending on the series you select.
