Siemens SIMOTICS XP Series

Electrical connection
6.5 Conductor connection
1MB..1/2/3/4 - shaft heights 63 ... 355
82 Operating Instructions, 06/2020, A5E44455710A

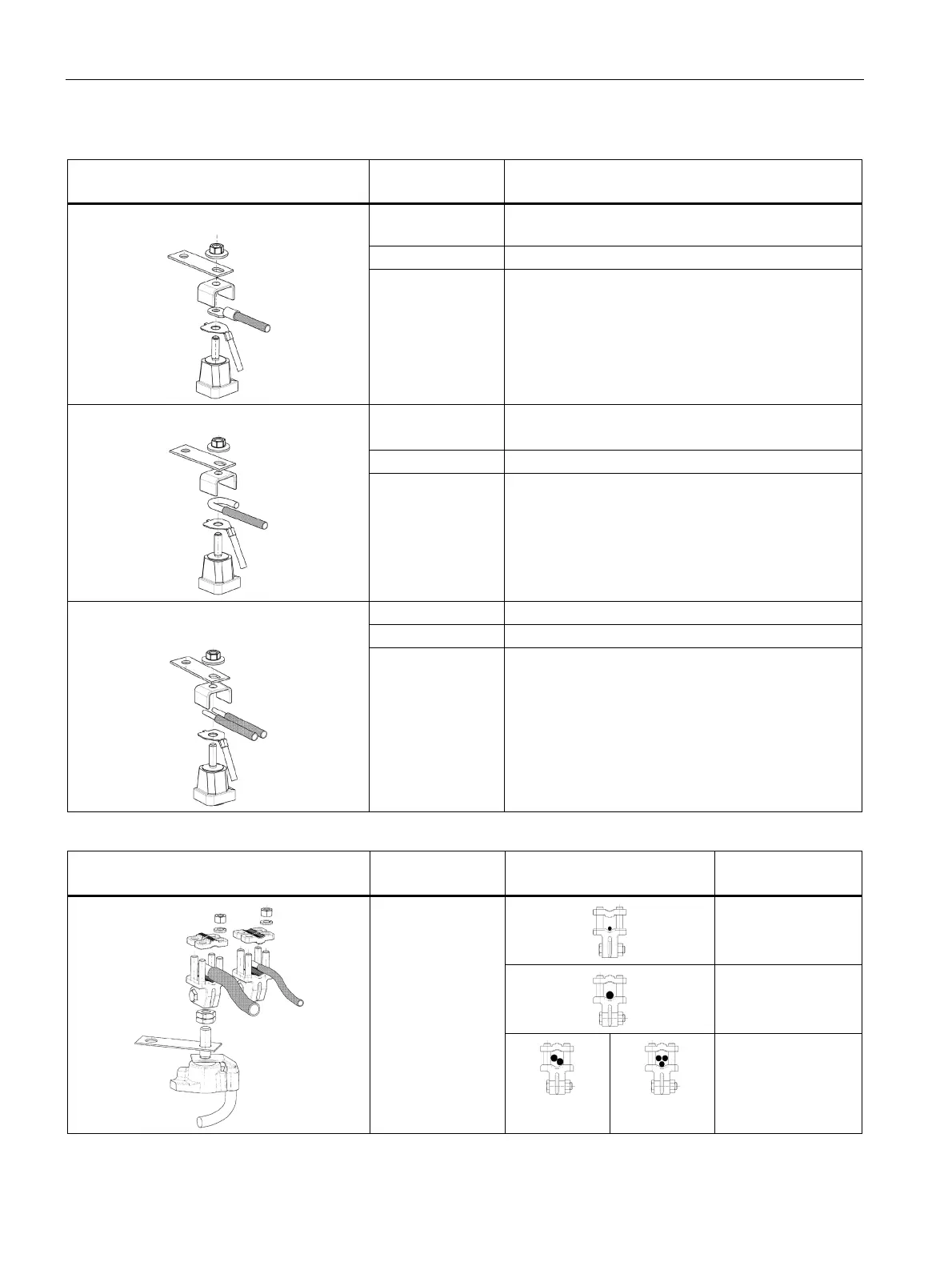

Type of connection
Terminal studs
Cable cross-section
mm²
Connection with cable lug DIN 46234 M4 1 ... 4
1 ... 6 (shaft height 132)
M5
1 ... 16
M6 4 ... 35
Connection of a single conductor M4 1 ... 4
1 ... 6 (shaft height 132)
M5
1 ... 16
M6 4 ... 35
Connecting 2 conductors with the same
thickness using a terminal clamp
M4
Not permitted
M5
Not permitted
M6 4 ... 35
Type of connection
Terminal studs
Cable position with terminal
Cable cross-section
mm²
M8 2.5 … 25
16 ... 50
10 … 16
