Commissioning (software)

6.2 Performing the configuration for the D4x5-2 offline

SIMOTION D4x5-2

162 Commissioning and Hardware Installation Manual, 02/2012

Procedure

While executing the wizard you will be prompted to perform, for example, the following

configuration steps:

1. In the "Option Module" dialog box, select whether you want to use a TB30 as option

module.

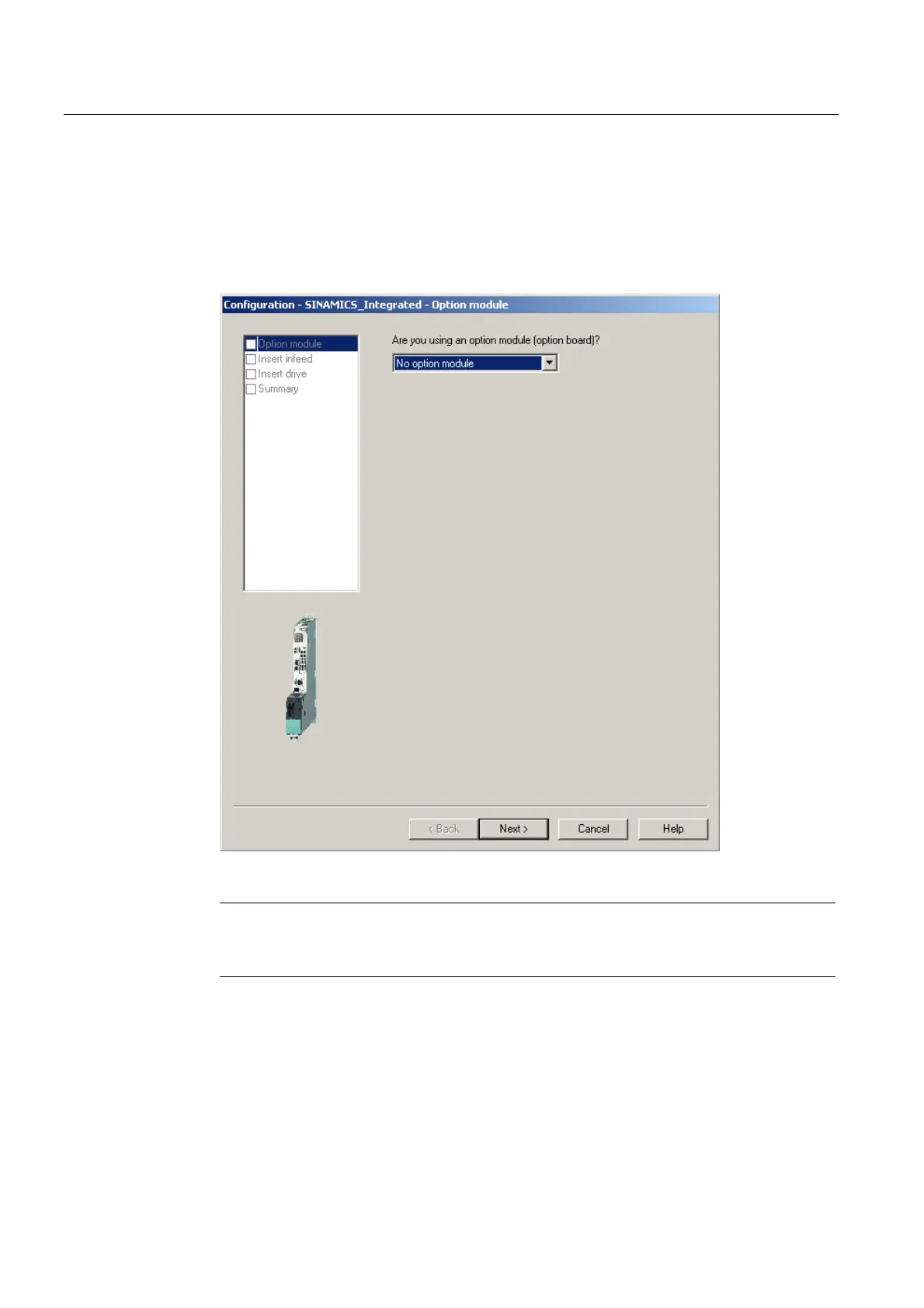

Figure 6-1 Selecting an option module

Note

The TB30 is displayed as drive object below the control unit in the project navigator and

can be configured there.
