maintenance and fully protected from over current of AC input. The recommended spec of AC breaker is
50A for 5KVA.
CAUTION!! There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis-connect
input and output connectors.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It’s very important for system safety and efficient operation to use appropriate cable for AC
input connection. To reduce risk of injury, please use the proper recommended cable size as below.
Suggested cable requirement for AC wires

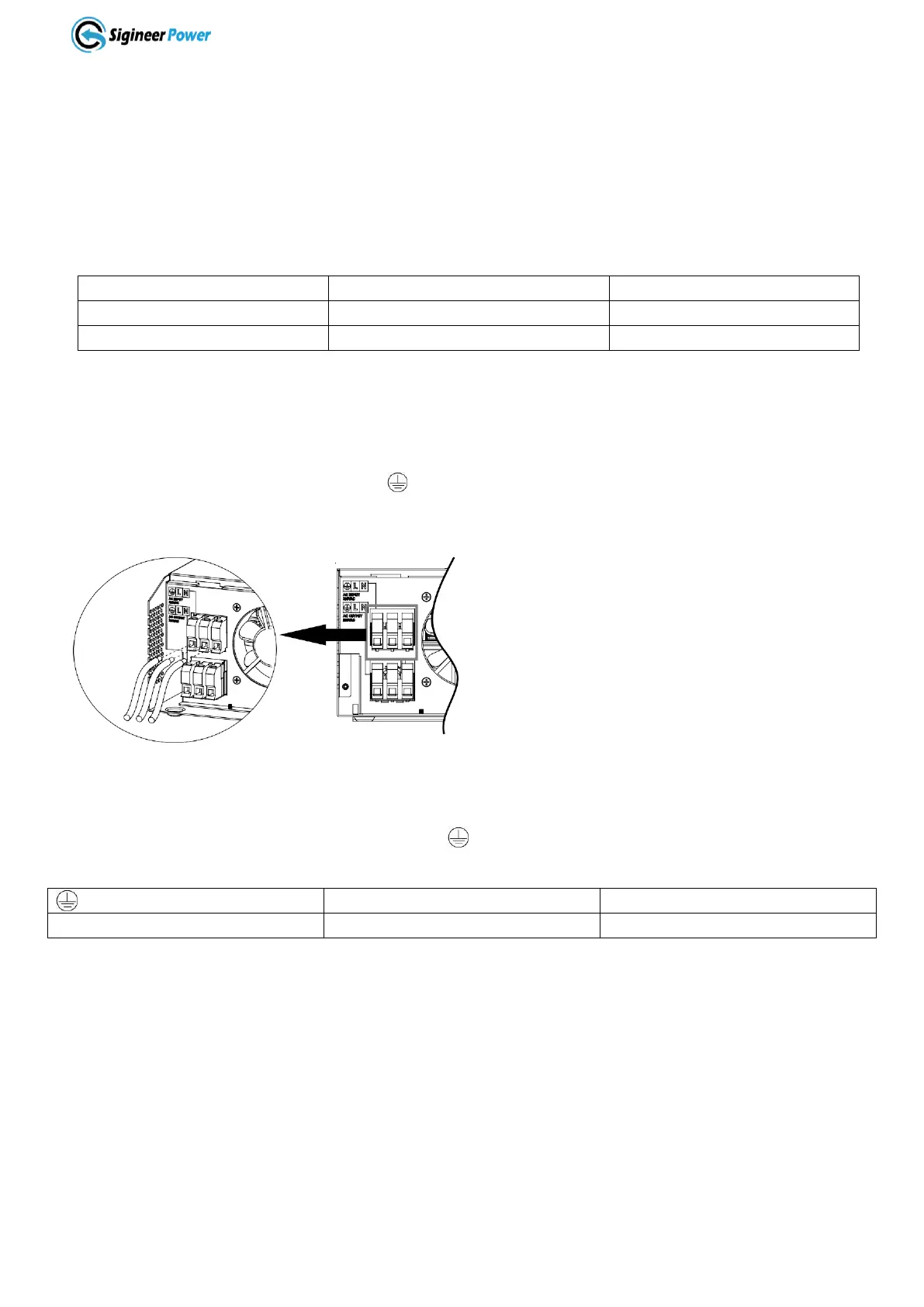

Please follow below steps to implement AC input/output connection:
*Before making AC input/output connection, be sure to open DC protector or disconnector first.
*Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3 mm.
*Insert AC input wires according to polarities indicated on terminal block and tighten the terminal screws.
Be sure to connect PE protective conductor first.
→Ground (yellow-green)
L→LINE (brown or black)
N→Neutral (Blue)
Be sure that AC power source is disconnected before attempting to hardwire it to the unit.
*Then, insert AC output wires according to polarities indicated on terminal block and tighten terminal
screws. Be sure to connect PE protective conductor first.
*Make sure the wires are securely connected.
Wiring Instruction for M5000H 230V Single Phase inverter in 120/240 split phase system
Sigineer Power’s M5000H-48BP 230V single phase inverter is an international model which can be used in
120/240V Split phase systems in America and also 230Vac single phase systems.
Users from 120/240Vac 60Hz split phase phase electricity system( 120VL+120V L+ N+G) must strictly
follow our wiring instructions, or damage to inverter will occur.
