3-SDG2000X Quick Start

The Front

Panel

1. Power Key

2. USB Host

3. Touch Screen Display

4. Numeric Keyboard

5. Knob

6. Arrow Keys

7. CH1/CH2 Control/

Output Port

8. Channel Select Key

9. Function Keys

10. Waveform Option

11. Menu Keys

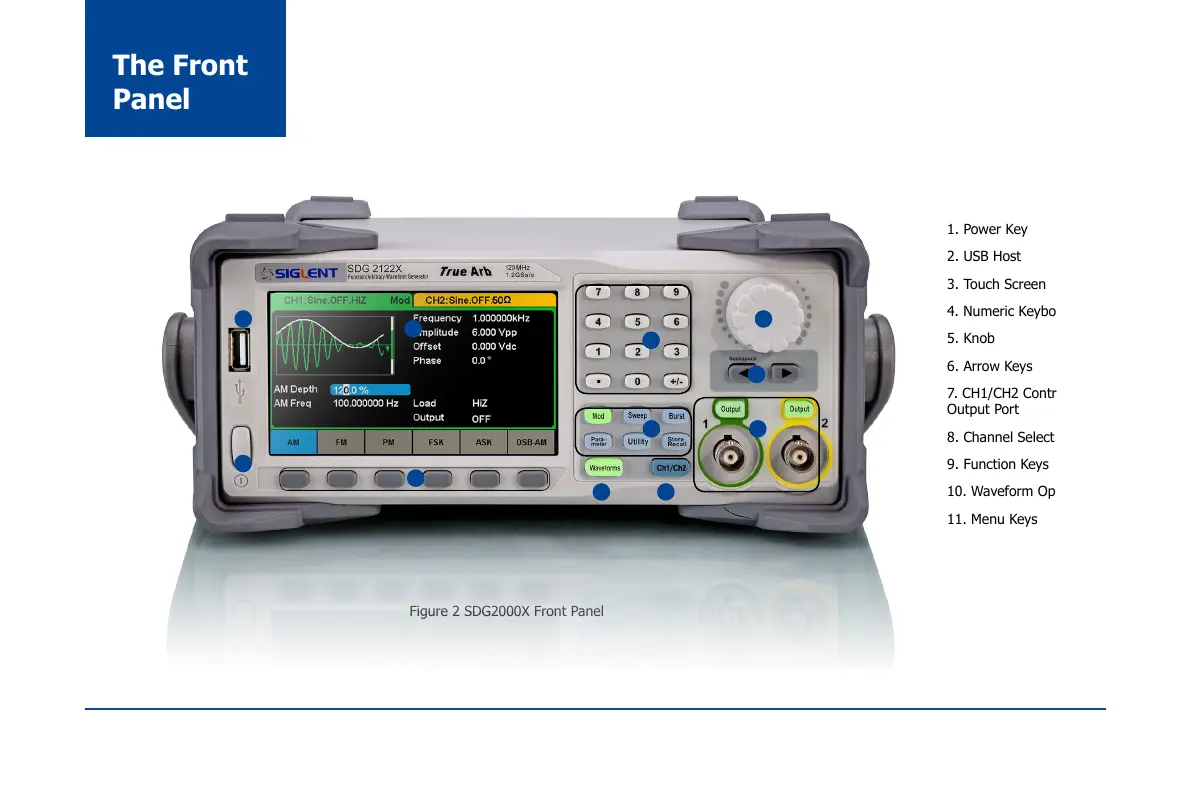

Figure 2 SDG2000X Front Panel

10 8
