SIGLENT SDG2122X Quick Start

15-SDG2000X Quick Start
The SDG2000X series includes arbitrary waveform editing software called EasyWaveX. This software is a platform for easily creating, editing, and transferring
waveforms to the generator. It provides 11 standard waveforms such as Sine, Square, Ramp, Pulse, Noise and DC, which meets most engineers’ basic needs.
In addition, it provides several ways of manual drawing, point-to-point line drawing and arbitrary point drawing. EasyWaveX allows for fast and easy creation of
complex waveforms.

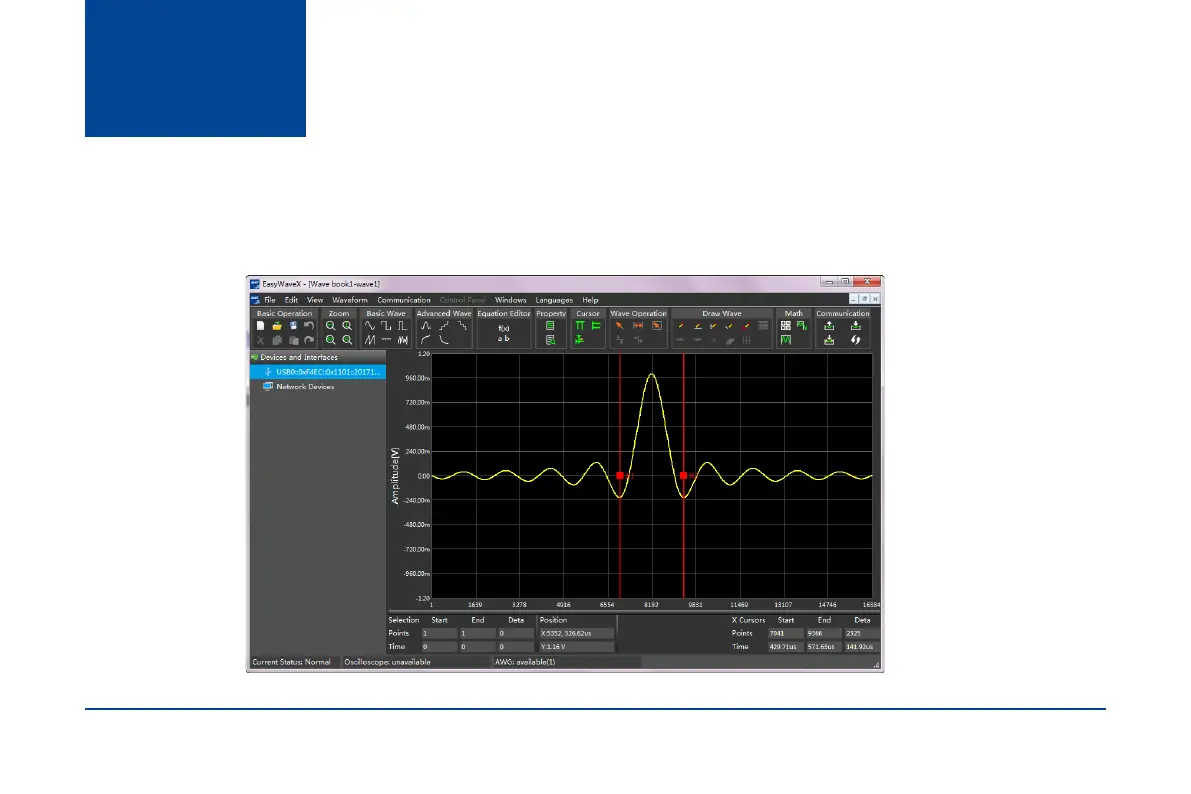

The main interface of EasyWaveX is shown in the following gure.
Introduction
of EasyWaveX
Figure 5 EasyWaveX Interface
