Sigma 6000+ - Page 8

SECTION I (con’t)
Recommended Spare Parts
Parts List Table 13
Upstream Occlusion Assembly
Theory of Operation
Service Information
Drawing Figure 14
Schematic
Parts List Table 14
Temperature Compensation PCB
Assembly
Drawing Figure 15
Schematic
Parts List Table 15
SECTION IN
Repair manual
‘All references to “ATVS — American IV Systems” are to be considered synonymous with

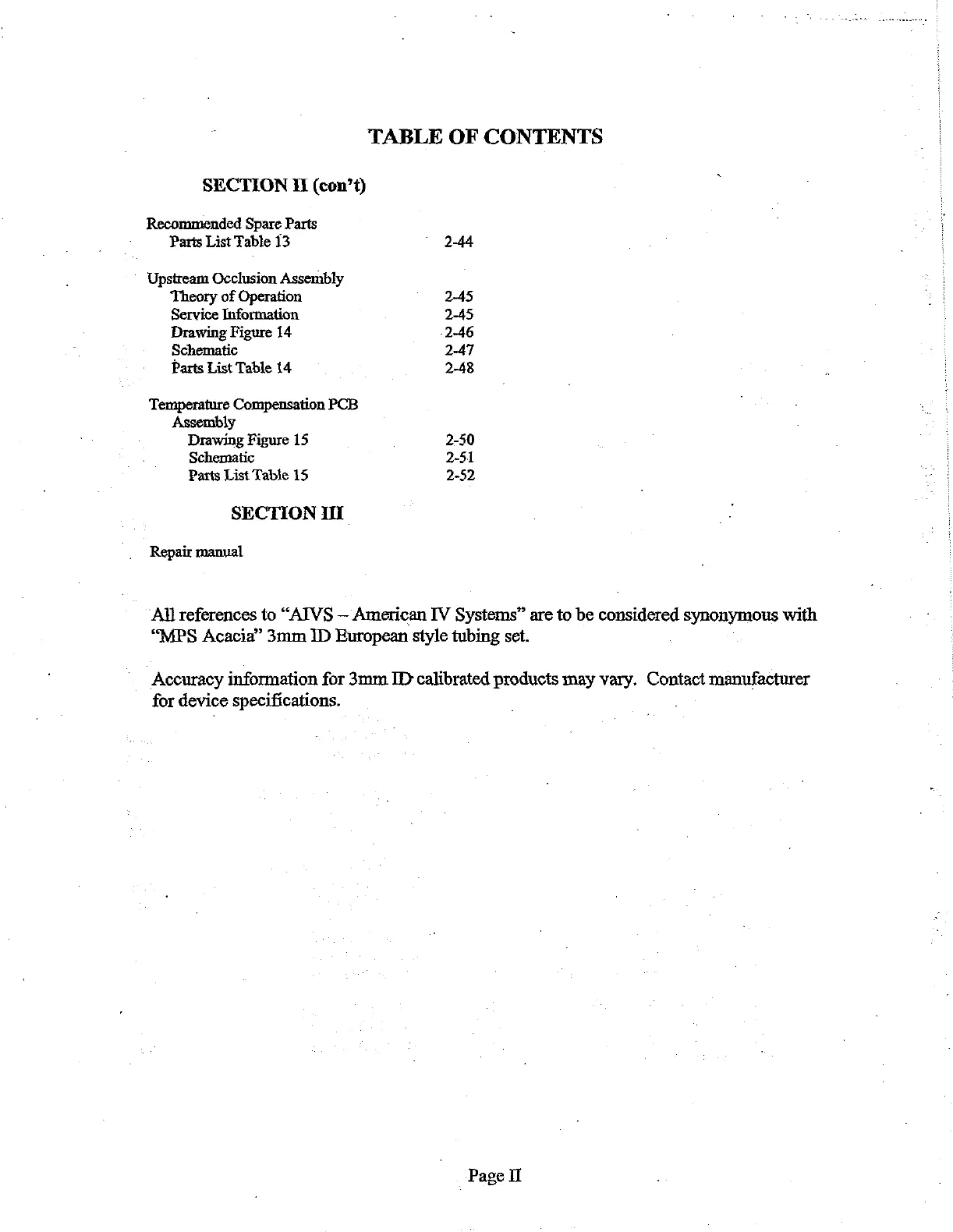

TABLE OF CONTENTS
2-44
2-45
2-45
2-46
2-47
2-48
2-50
2-51
2-52
“MPS Acacia” 3mm ID European style tubing set.
Accuracy information for 3mm ID calibrated products may vary. Contact manufacturer
for device specifications.
Page II
