4. Connecting Noise-Generating Components

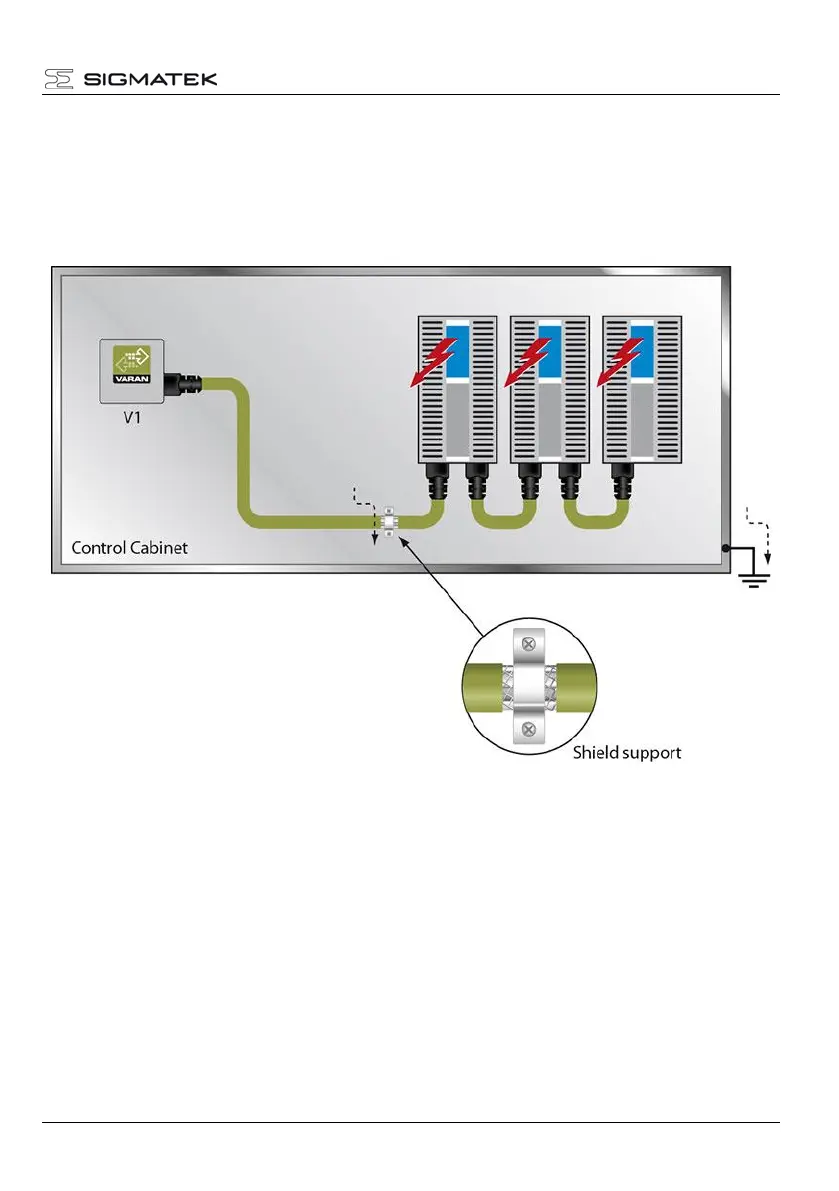

When connecting power lines to the bus that generate strong electromagnetic noise, the
correct shielding is also important. The shielding should be placed before a power element
(or group of power elements).
