Typical Performance | Typical Harmonics

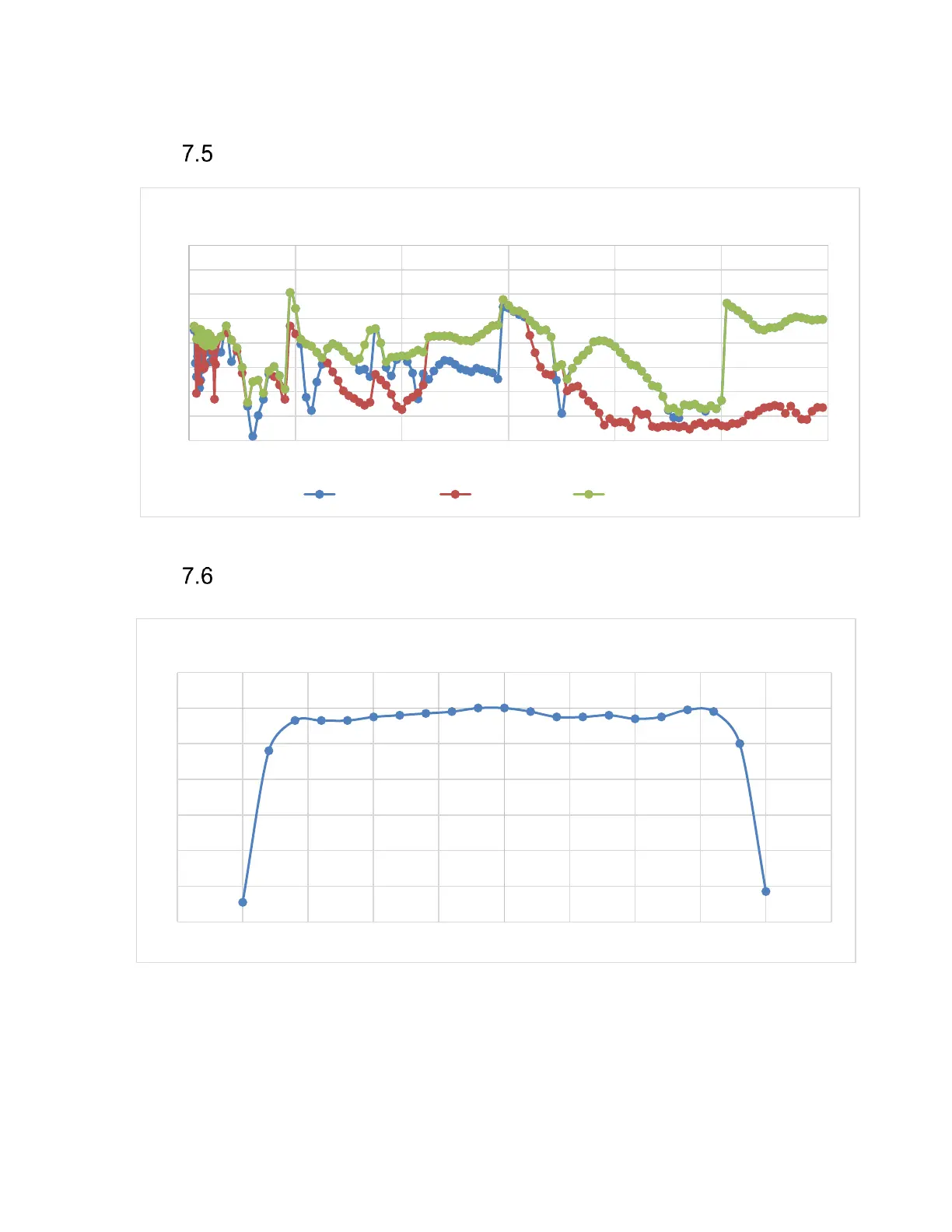

TYPICAL HARMONICS

TYPICAL FLATNESS ACROSS 40 MHZ CHANNEL

-100

-90

-80

-70

-60

-50

-40

-30

-20

0 1000 2000 3000 4000 5000 6000

Frequency (MHz)

Typical Harmonics (dBc), 0 dBm output power

2nd Harmonic 3rd Harmonic Worst Harmonic

-1.2

-1

-0.8

-0.6

-0.4

-0.2

0.2

-25 -20 -15 -10 -5 0 5 10 15 20 25

dB down from Channel Center

Offset from center (MHz)

Typical Flatness Across 40 MHz Modulation Bandwidth, 1 GHz carrier
