13

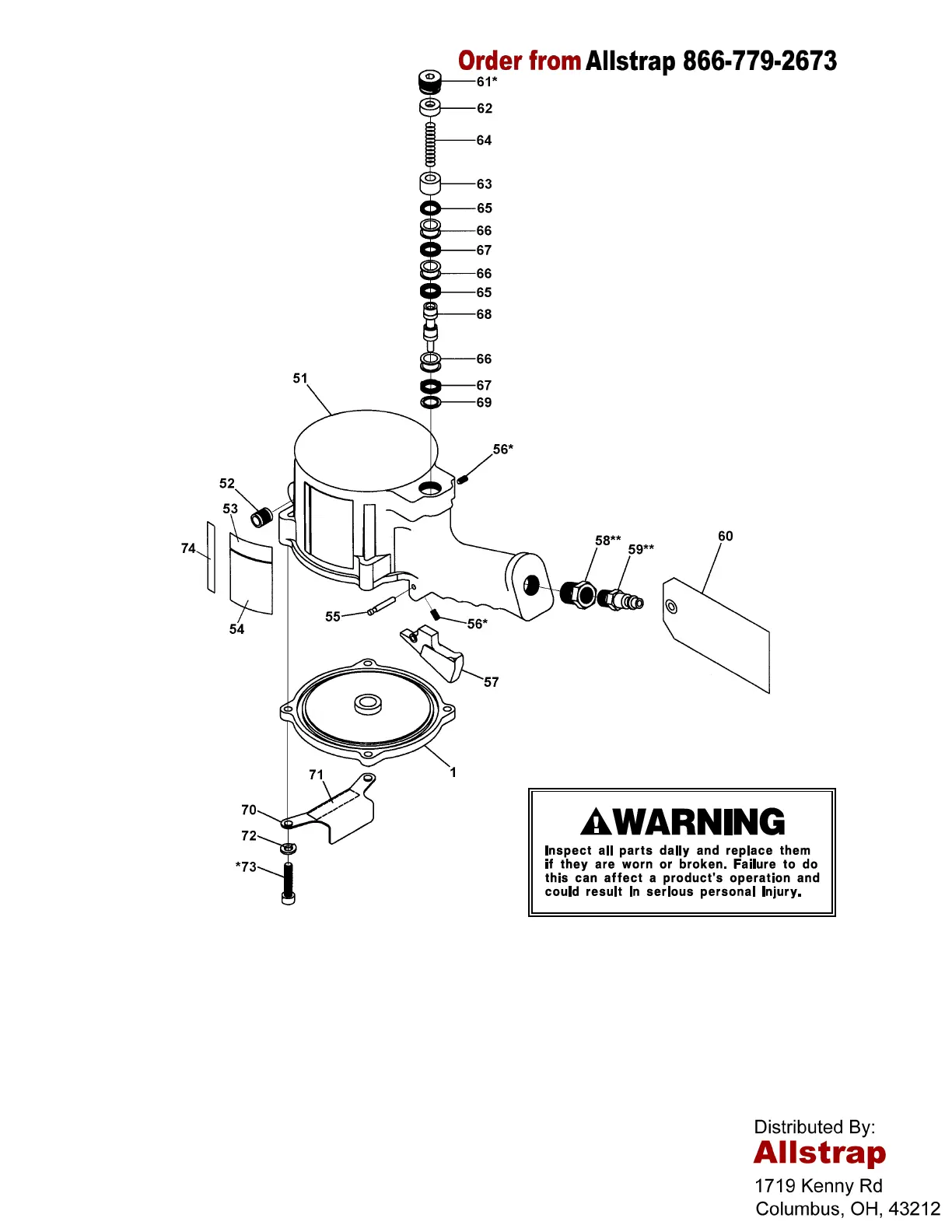

* Install using Loctite #242.
** Install using Teflon pipe tape.
VALVE PLUG ADJUSTMENT:
1. Turn plug until flush with cylinder casting.
2. Connect air to tool and check for leaks with trigger in both the On and OFF positions.
3. If leakage should occur, turn valve plug clockwise (in 1/4 turn increments only) until
leakage stops.
4. Lock valve plug in place with set screw (56).
