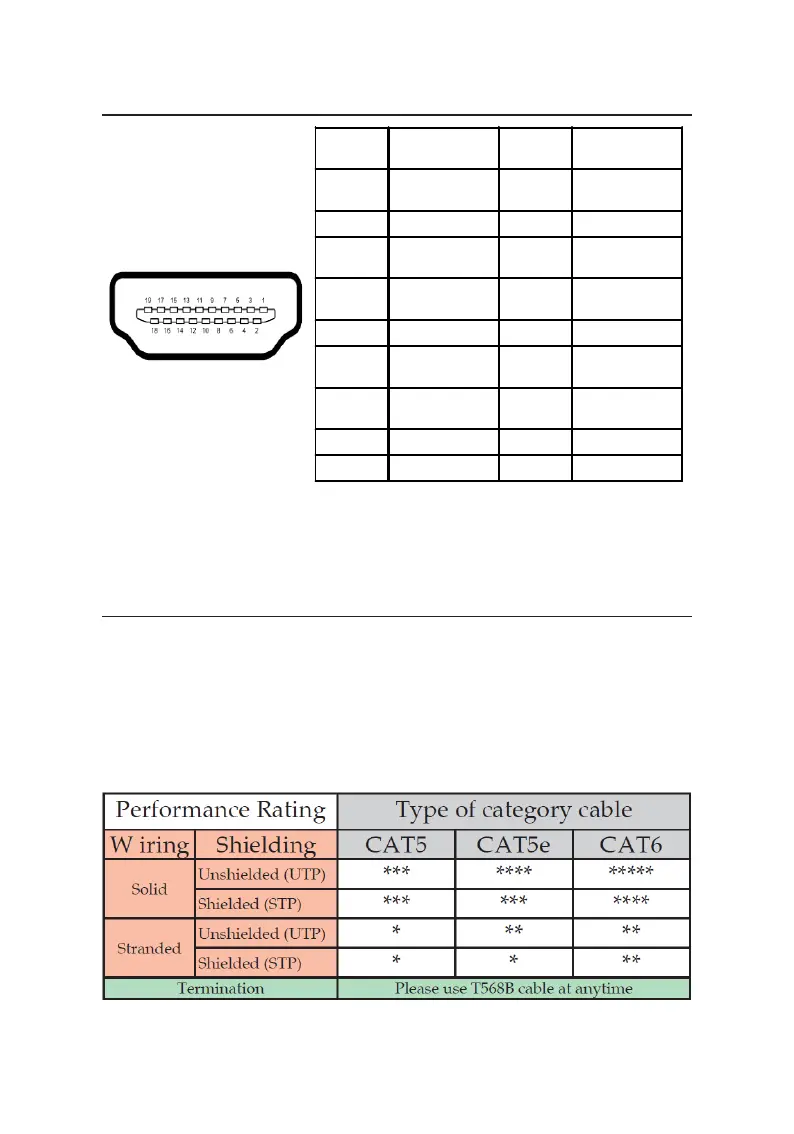

HDMI Pin Definition
Pin 1 TMDS Data2+ Pin 11
TMDS Clock
Shield
Pin 2
TMDS Data2
Shield
Pin 12 TMDS Clock-
Pin 3 TMDS Data2- Pin 13 CEC
Pin 4 TMDS Data1+ Pin 14
Reserved (N.C. on
device)
Pin 5
TMDS Data1
Shield
Pin 15 SCL
Pin 6 TMDS Data1- Pin 16 SDA
Pin 7 TMDS Data0+ Pin 17
DDC/CEC
Ground
Pin 8
TMDS Data0
Shield
Pin 18 +5V Power
Pin 9 TMDS Data0- Pin 19 Hot Plug Detect
Pin 10 TMDS Clock+
Table 2: HDMI Pin Definition
Notice
• T568B CAT cable is recommended for the best
performance
• Use shielded STP cables to avoid EMI problems
• A CAT6 cable is recommended for resolutions
greater than 1080i or 1280x1024
Table 3
