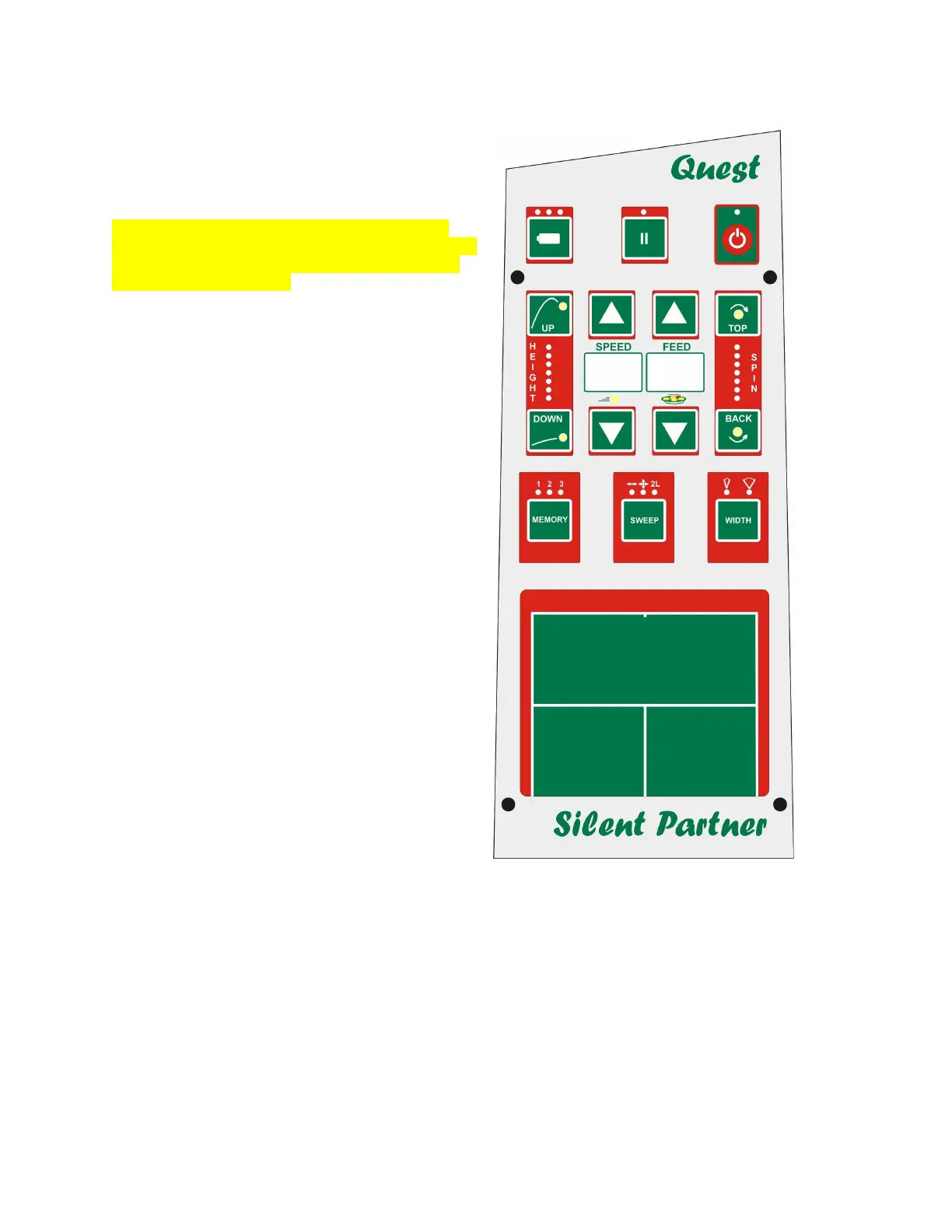

THE CONTROL PANEL OF THE QUEST
POWER BUTTON
Power is turned ON and OFF by pressing the button
in the upper right hand corner. The red light above
the button stays on as long as the machine is on.
The height adjustment goes through a calibration
procedure every time the machine is turned on. Wait
a few seconds until the “height lights” stop flashing
before using the machine.
PAUSE
The pause button controls ball feed. When the
machine is turned on, the feed automatically goes
into pause. This is reflected by the slow flashing of
the light located above the button. To start feed,
press the pause button once. If you wish to delay
the start of the feed by 15 seconds, press the pause
button continuously for two seconds until it starts
flashing rapidly. This will allow you to get to the
other side of the court.
BATTERY LEVEL INDICATOR
Three lights indicate the level of charge of the
battery. Three lights indicate a full battery, while no
lights indicate that it is time to stop playing. The
machine must be turned OFF to check the battery.
For best accuracy, wait a few minutes before taking
the reading.
HEIGHT CONTROL
Pressing the UP button causes the ball to be ejected
increasingly high, while pressing the DOWN button
lowers the trajectory. The elevation control stops at
each end of the travel. The seven lights between the
two buttons provide a reference for the height
adjustment. These lights flash during height
calibration every time the machine is turned on.
SPEED CONTROL
Ball ejection speed can be adjusted from a soft toss
to a challenging drive. Press the UP ARROW to
increase speed, and the DOWN ARROW to reduce
it. Speed is shown in the window between the two
buttons.
FEED RATE
The interval at which balls are ejected can be adjusted from a full stop to a rapid fire rate. Pressing the
upper key increases the feed rate while pressing the lower key reduces it. The Feed rate is shown in the
window between the two buttons on a scale of 0 (full stop) to 10 (maximum).
-4-
