Osiris-Jaegar – Installer Guide
Appendix 3 – Power and signal connections
Camera power requirements
The camera can accept a range of input voltages, as follows:
Input voltages 28VDC (26-36VDC)
Power 70W (150W peak) Standard payloads.
100W (150W peak) Large / Dual payloads.
These figures do not include the requirements of any optional heating or cooling devices added within the
camera, nor optional infra-red lighting systems.
Power supply units are available for both mains feeds and low voltage DC automotive power sources.

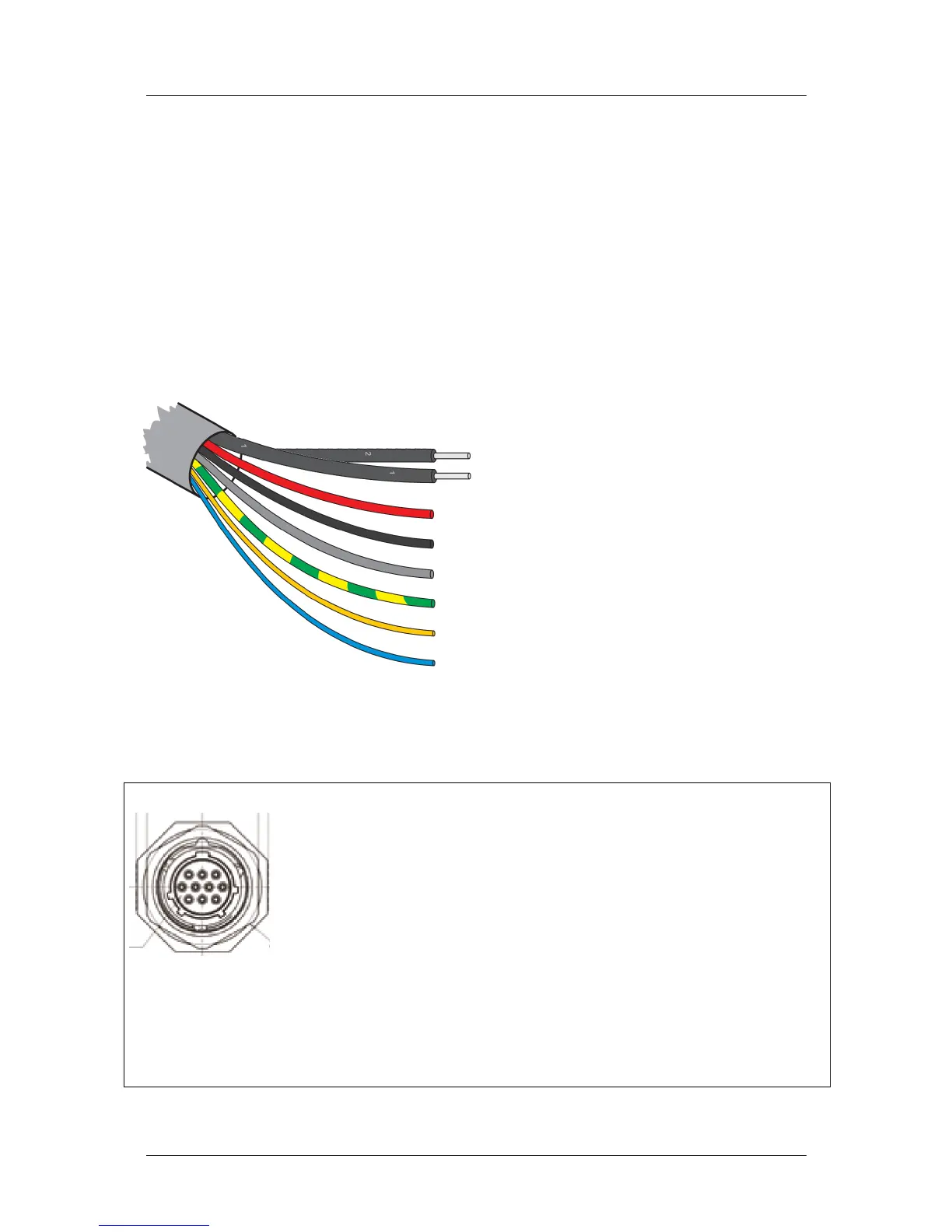

Multicore Cable and Connector Termination.
Co-axial: Composite Video (mini RG59).
(Two video connections on some models)
Red: Power (+28VDC).
Black: Power Ground.
Grey: Cable Screen.
Green+Yellow: Chassis Earth.
Yellow (Green): RS-485 Telemetry (Dx+).
(sleeving may be Green on some models)
Blue: RS-485 Telemetry (Dx-).
Orange and White Auxiliary conductors on some models.
UTS 12-10 Layout
H A B
G K J C
F E D
Contact Assignments.
A Power+ [Red]
B Power – (Gnd) [Black]
C Video 1 Signal [Coax 1]
D Video Ground [Coax Screen] Common
E Auxiliary A [Orange]
F Auxiliary B [White]
G Telemetry A+ [Yellow (or Green) – UTP]
H Telemetry B- [Blue – UTP]
J Earth Green+Yellow (stripe)
K Video 2 Signal [Coax 2]
Silent Sentinel SilSen DN145003 - 1.2b (Fork)
17
