Base connection

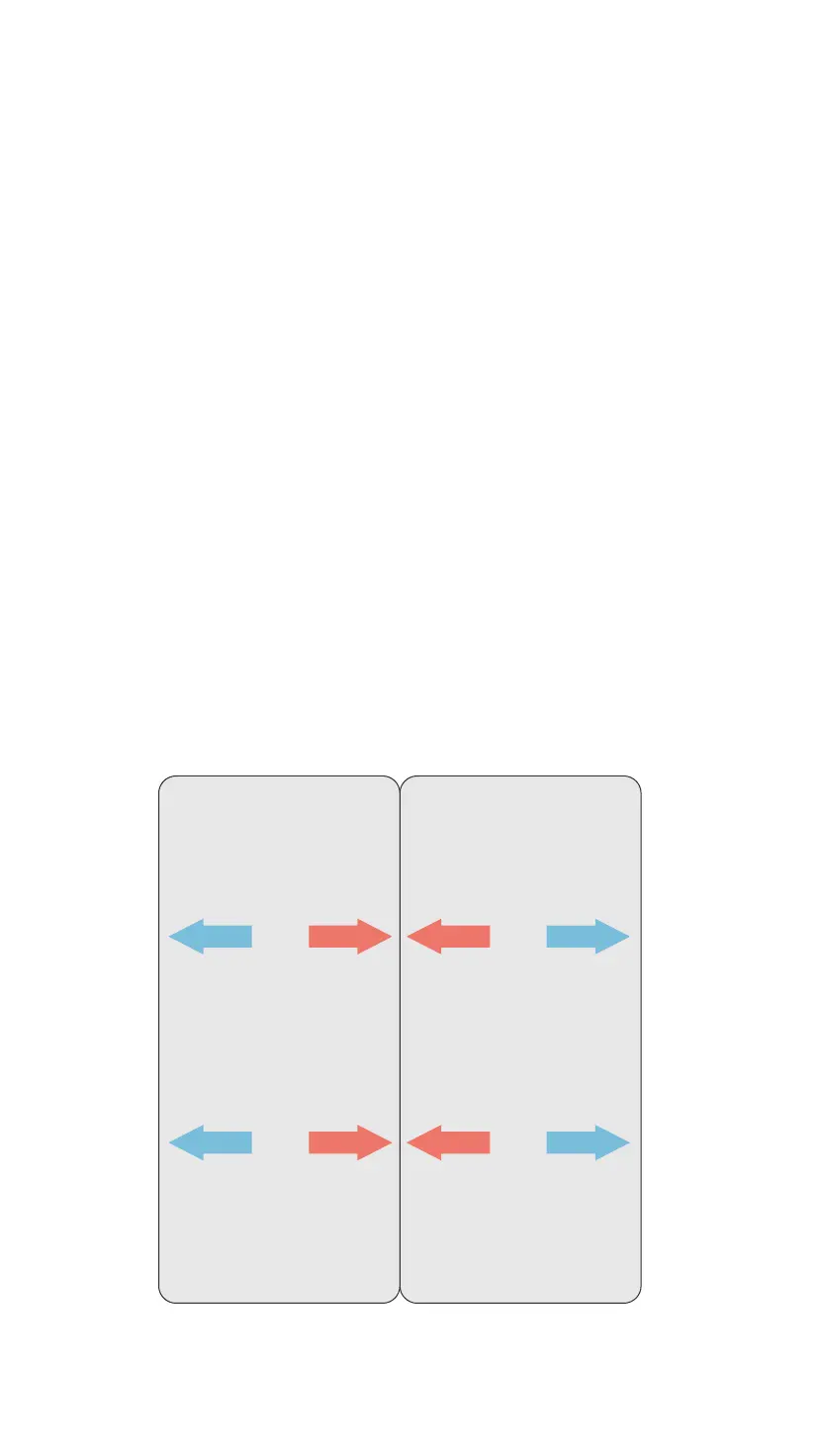

1. Identify the 2 drilled connecting holes on the
outer sides of each base unit (blue arrows) and it
the beige plastic hole plugs. Remove the ‘Pierce
Here’ labels from the outside of the base units.
2. Identify the 2 drilled connecting holes on the
inner sides of each base unit (red arrows)
identiied on the outside of the base by ‘Pierce
Here’ labels which should be removed.
Using the large bradawl, pierce the fabric and
make a hole large enough for the ‘female’
connector in all 4 aligned holes.
3. Push both base units together and align.
