Getting Started with Silhouette CAMEO®
Prepare the blade plunger by removing the protective covering and adjusting the blade to the
appropriate number setting for the material you plan to cut. Refer to Silhouette Studio® for
recommended blade settings for different materials.
fastenloosen
lock lever
blade
blade holder
9
ratchet cap
blade
numbered blade setting

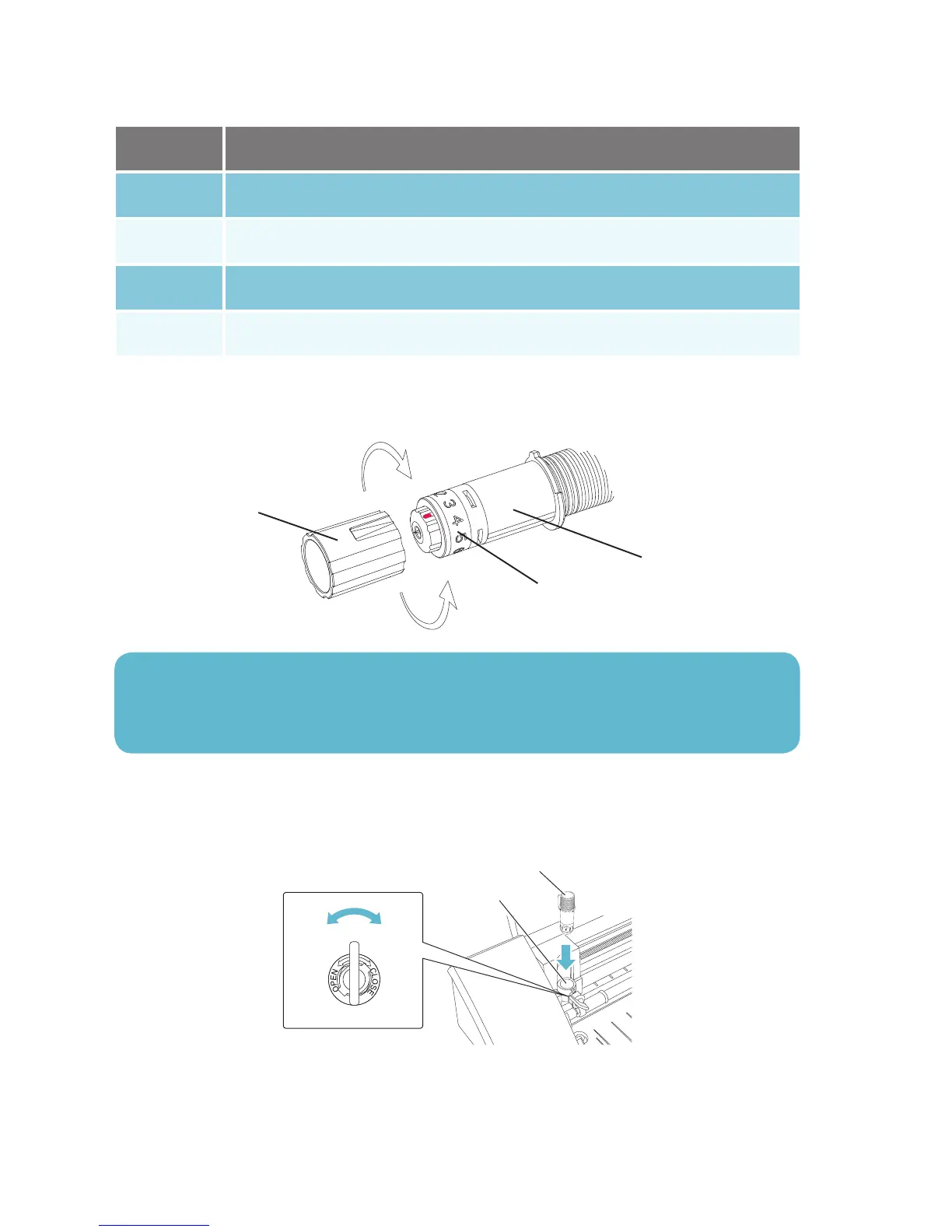

To adjust the blade setting, place the grey ratchet cap on the end of the blade so the arrow on the cap
lines up with the red line on the blade. Turn the ratchet to the desired number.
Unlock the blade holder by turning the lock lever counter-clockwise. Place the blade housing in
the blade holder and turn the lock lever clockwise to secure the blade. Be sure the blade housing is
pressed completely into the holder.
Blade setting
1
4-6
7-10
2-3
Material
Thin materials such as vinyl and smooth heat transfer material
Thicker materials such as textured cardstock and pattern papers
Thick materials such as canvas
Medium-weight materials such as paper, cardstock and flocked heat transfer material
NOTE: To remove fibers from blade housing, ratchet blade down to 0 and carefully grasp the
white tip turning it counterclockwise to remove the small end cap. Blow fibers away (do not
touch blade). Replace and hand-tighten cap.
