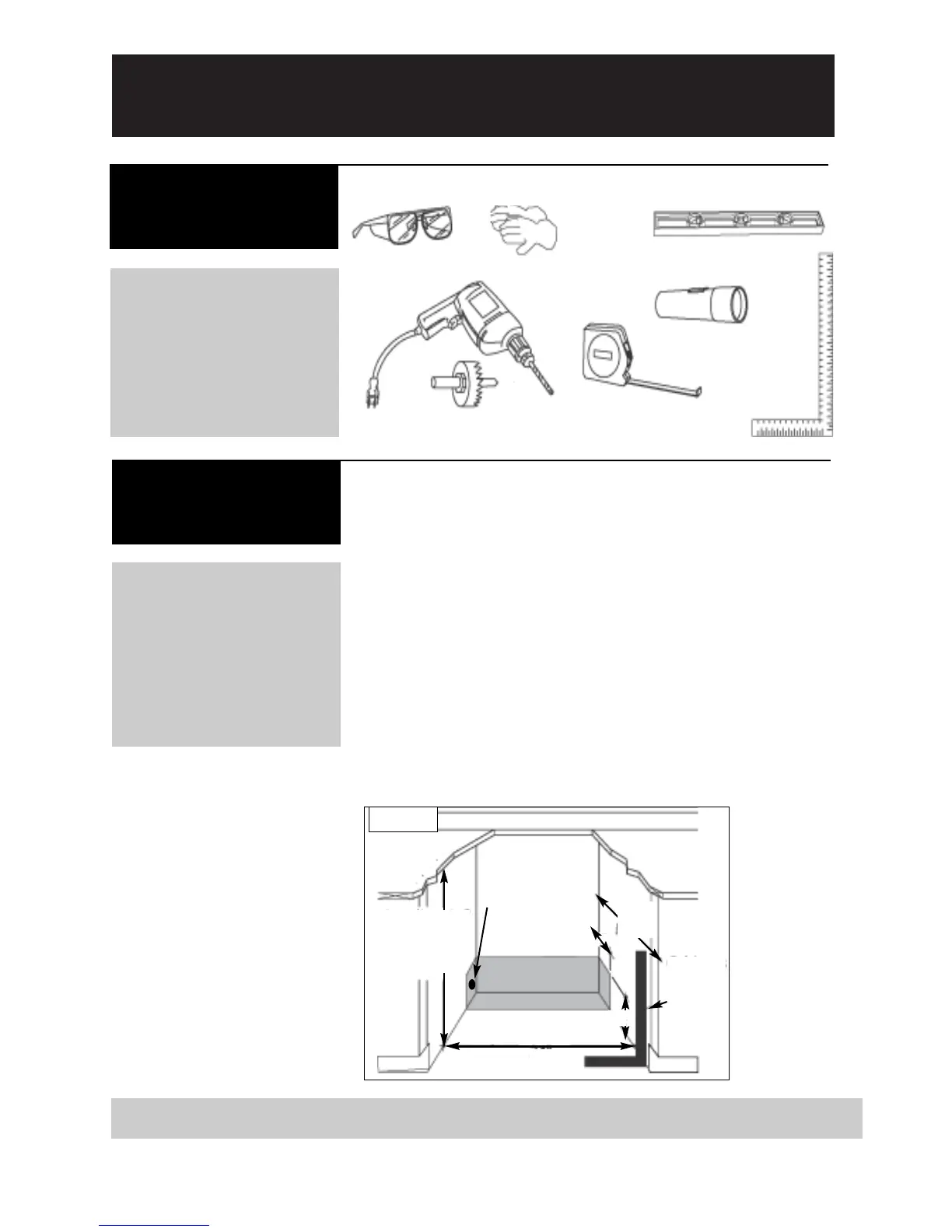

Installation Instructions - Intergrated Application
Preparing the
Enclosure
FOR YOUR SAFETY:
While performing
installations described in
this section, gloves, safety
glasses or goggles should
be worn.
Tools You Will
Need
Carpenters
Square
Measuring
Tape
Level
Drill & Hole Saw set
Gloves
Safety Glasses
Flashlight
Electrical Requirements:
The appliance must be
connected to an individual
properly grounded electrical
outlet, protected by a 15 or
20 ampere circuit breaker or
time delay fuse.
• It is recommended that you do
not install the Beverage Center into a
corner (i.e. directly beside a
wall). This is to allow the door(s)
to have a greater then 90° open-
ing swing. A limited door swing
will prevent the shelves from
sliding out as intended, and may
lead to damaging the door gas-
ket(s).
• The rough cabinet opening
must be on a level floor area
and at least 24” deep* by 24”
wide. The opening should also
have a height of at least 34-1/2”.
• The electrical outlet may be
positioned from within either
side of the adjacent cabinetry, or
the rear of the shaded area (as
shown in Fig C.).
Important: If the electrical out-
let is surface mounted (not flush)
within the enclosure, the depth
requirment for the installation be
affected.
• If the electrical outlet is located
inside the adjacent cabinetry, cut
a 1-1/2” diameter hole to admit
the power cord.
Electrical Access
Fig C
Cabinets
Square
and
Plumb
34-1/2” From
Underside of
Countertop to
Floor
24”
6”
2”
24”
Min*
1-1/2” dia. hole
*if electical outlet
is in adjacent
cabinetry
*The listed depth requirment for the installation is assuming that the electrical outlet is located in the adja-
cent cabinetry or is flush mounted in the rear wall, not surface mounted in the enclosure.
