8

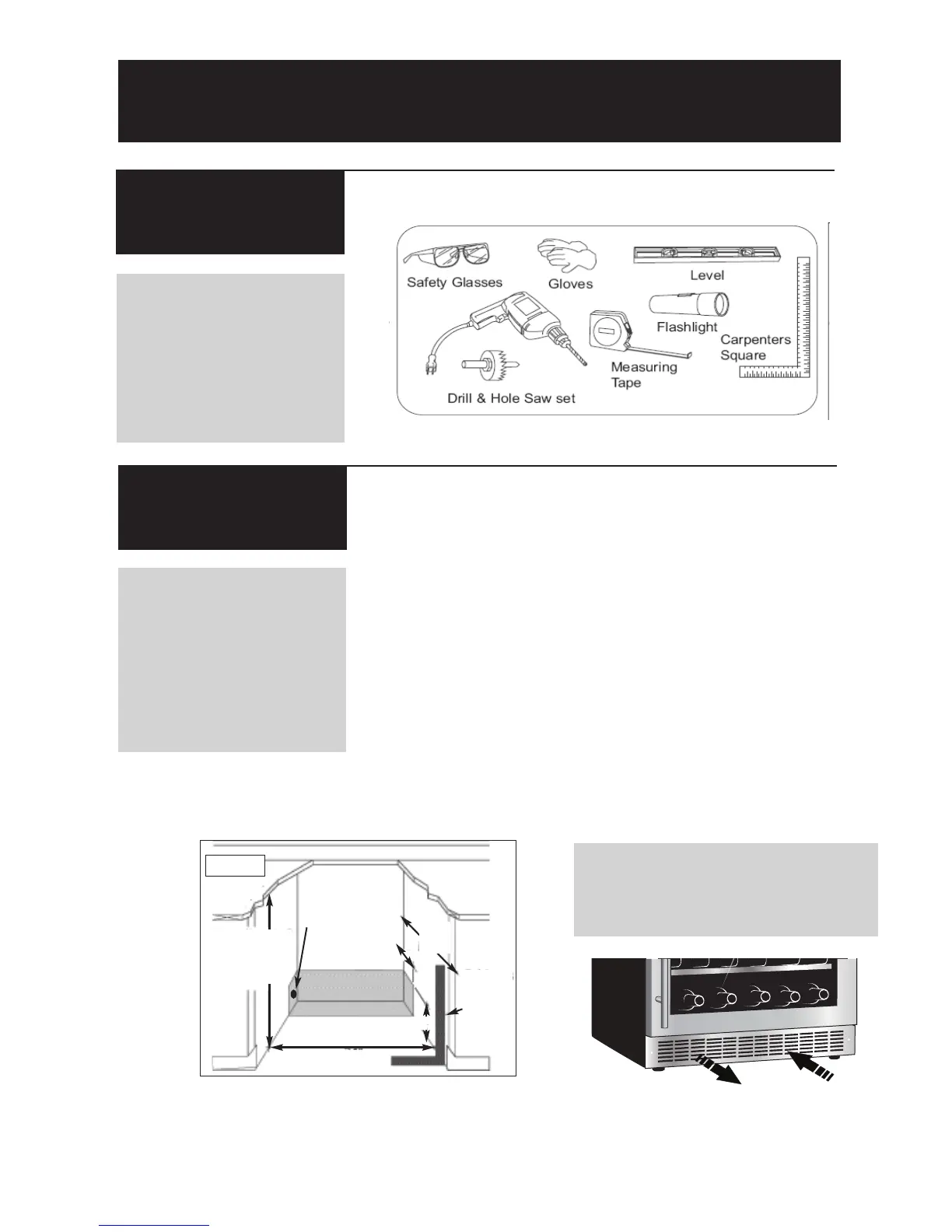

Installation Instructions - Intergrated Application
Preparing the
Enclosure
FOR YOUR SAFETY:
While performing
installations described in
this section, gloves, safety
glasses or goggles should
be worn.
Tools You Will
Need
Electrical Requirements:
The appliance must be
connected to an individual
properly grounded electrical
outlet, protected by a 15 or
20 ampere circuit breaker or
time delay fuse.
• It is recommended that you do
not install the wine cooler into a
corner (i.e. directly beside a
wall). This is to allow the door(s)
to have a greater than 90° open-
ing swing. A limited door swing
will prevent the shelves from
sliding out as intended, and may
lead to damaging the door gas-
ket(s).
• The rough cabinet opening
must be on a level floor area
and at least 25” deep by 24”
wide. The opening should also
have a height of at least 34-9/16”.
• The electrical outlet may be
positioned from within either
side of the adjacent cabinetry, or
the rear of the shaded area (as
shown in Fig C.).
Important: If the electrical out-
let is surface mounted (not flush)
within the enclosure, the depth
requirment for the installation
will be affected.
• If the electrical outlet is located
inside the adjacent cabinetry, cut
a 1-1/2” diameter hole to admit
the power cord.If the cabinet wall
is metal, the hole edge must be
covered with a bushing or grommet.
Electrical Access
Fig C
Cabinets
Square
and
Plumb
34-9/16”From
Underside of
Countertop to
Floor
24”
6”
1-3/16”
25”
Min*
1-1/2” dia. hole
*if electical outlet
is in adjacent
cabinetry
Fig.D
NOTE: This unit is front breathing.
Do not block the front air vent. Blockage
of the vent will result in high operating
temperatures and system failure. (Fig.D)
To Next Page
