Installation Instructions - Door Swing Reversal
1 Bottom hinge (Right) 2 Screws 3 Door axis
4 Screws 5 Reed swith 6 Top hinge (Right)
7 Screws 8 Top hinge (Left) 9 Decorative nail

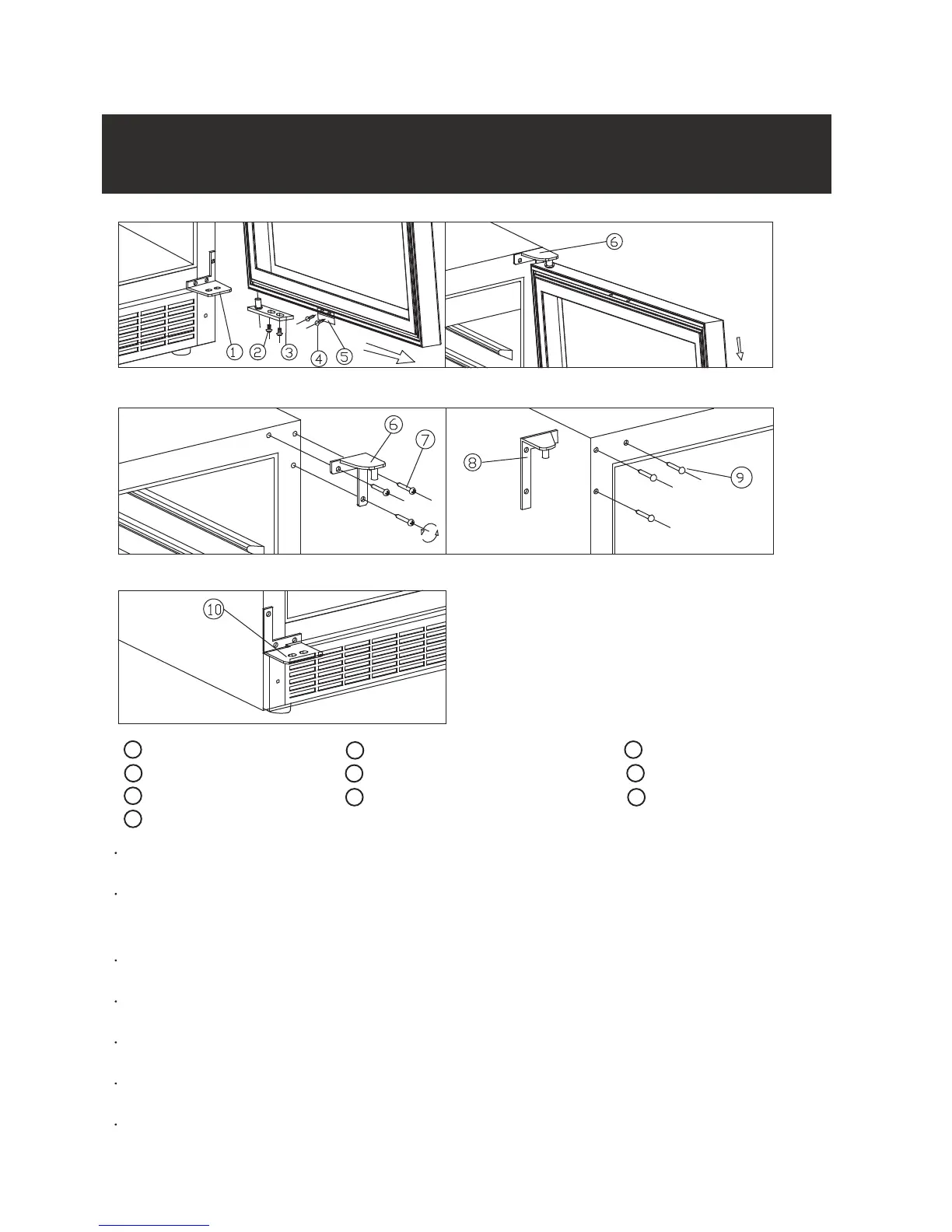

Fig 1A
Fig 1B
Fig 1D
9
Fig 1C
1 When open the door 90 degree, take out 2 screws from lower door axis (3),
remove the door refer Fig. 1A, then pull out the door and door axis (Fig. 1A).
2
Put the door safety,unscrew 2 screws (4) at bottom and remove
the Reed switch (5),then install (5) at top of door frame,
(Fig. 1A/1B)
3
Make out 3 screws (7) from top hinge (right) (6) and remove the right top
hinge. (Fig. 1C)
4
Remove decorative nail (9) from left top of cabinet and install spare top
hinge (Left) (8) at left top of cabinet with 3 screws. (Fig. 1D)
5
According above procedure, install spare lower hinge (left) (10) onto left
lower cabinet. (Fig. 1E)
6
The door revolves 180 degrees, install the door with same way it was removed
and fix it with door alightment.
7
Block the hole at right top of cabinet with spare decorative nail.
Fig 1E
10 Bottom hinge (Left)
Please note: Do not lay unit on it's back.
