16
DETAIL A
HARDWARE NEEDED (ACTUAL SIZE)
WASHER M10 X 30mm
2B-6795-00
10
(QTY. 1)
11
43

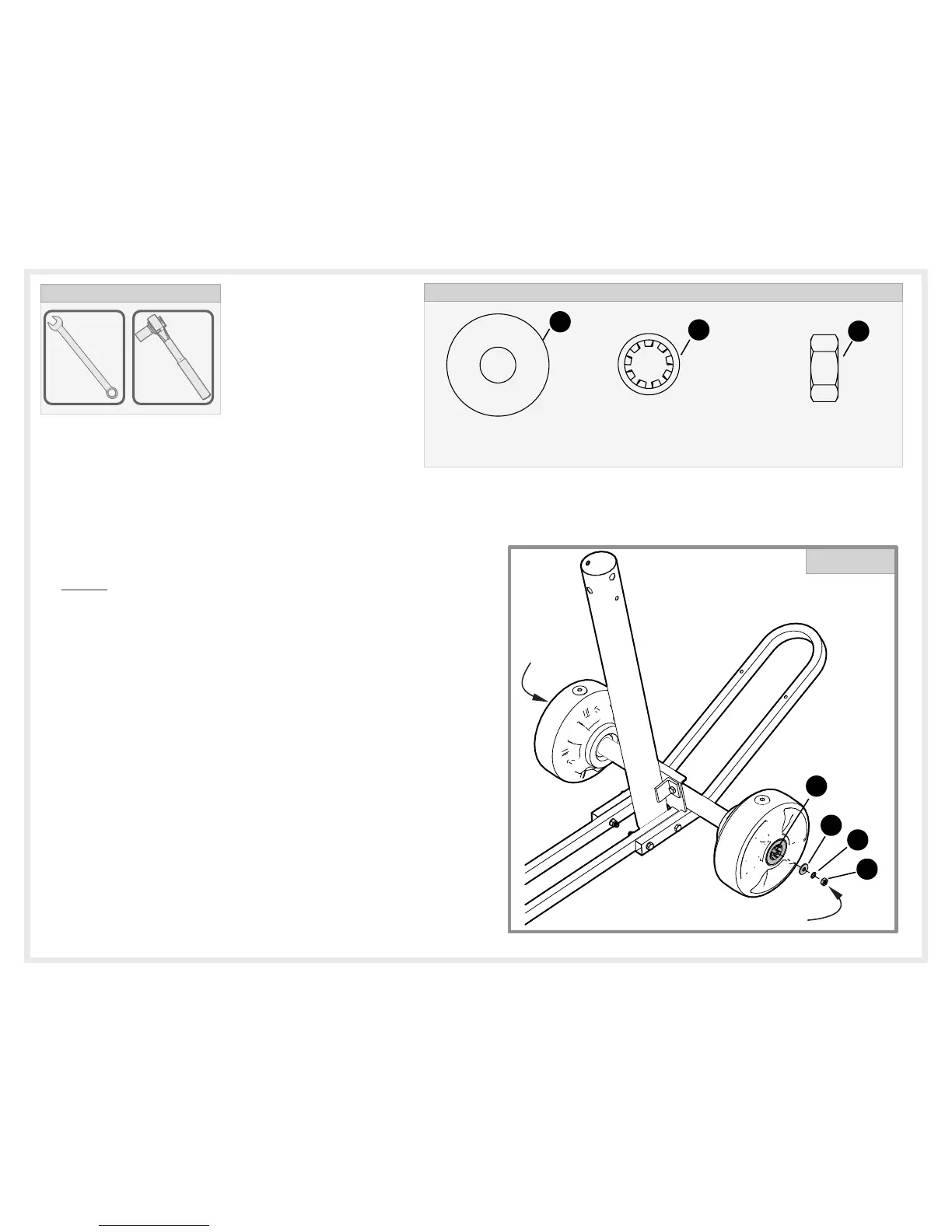

9. Secure Axle Rod (9) with Washer (10), Lock Tooth
Washer (43) and Hex Nut (11). Tighten Nut (11) until
there’s about 1/4” of thread of the Axle Rod sticking
out of nut. Do not overtighten. See Detail A.
9
HEX NUT M10-1.5
2B-6796-00
11
(QTY. 1)
WASHER, LOCK INTERNAL-TOOTH
2B-6806-00
43
(QTY. 1)
16mm
TOOLS NEEDED
16mm
NOTE: Wheels must sping freely, there should also
be some side to side play on both wheels.
Use 16mm Socket
on Nut (11).
Use 16mm
Wrench for
Axle Rod.
10
To Next Page
