29
2.64"
65”-70”
2.16"
4’
SIDE VIEW
4’ step ladder or
other 4‘ support
structure.
DETAIL A
Prepare a flat area that is clear of debris. Keep children away from the
assembly area. Two capable adults are needed for the following steps.
NOTE:
DETAIL B
HEIGHT DECAL
WARNING LABEL
NOTE: Rest the system above the bolts of the
actuator bracket so the ladder does not
damage the warning label.

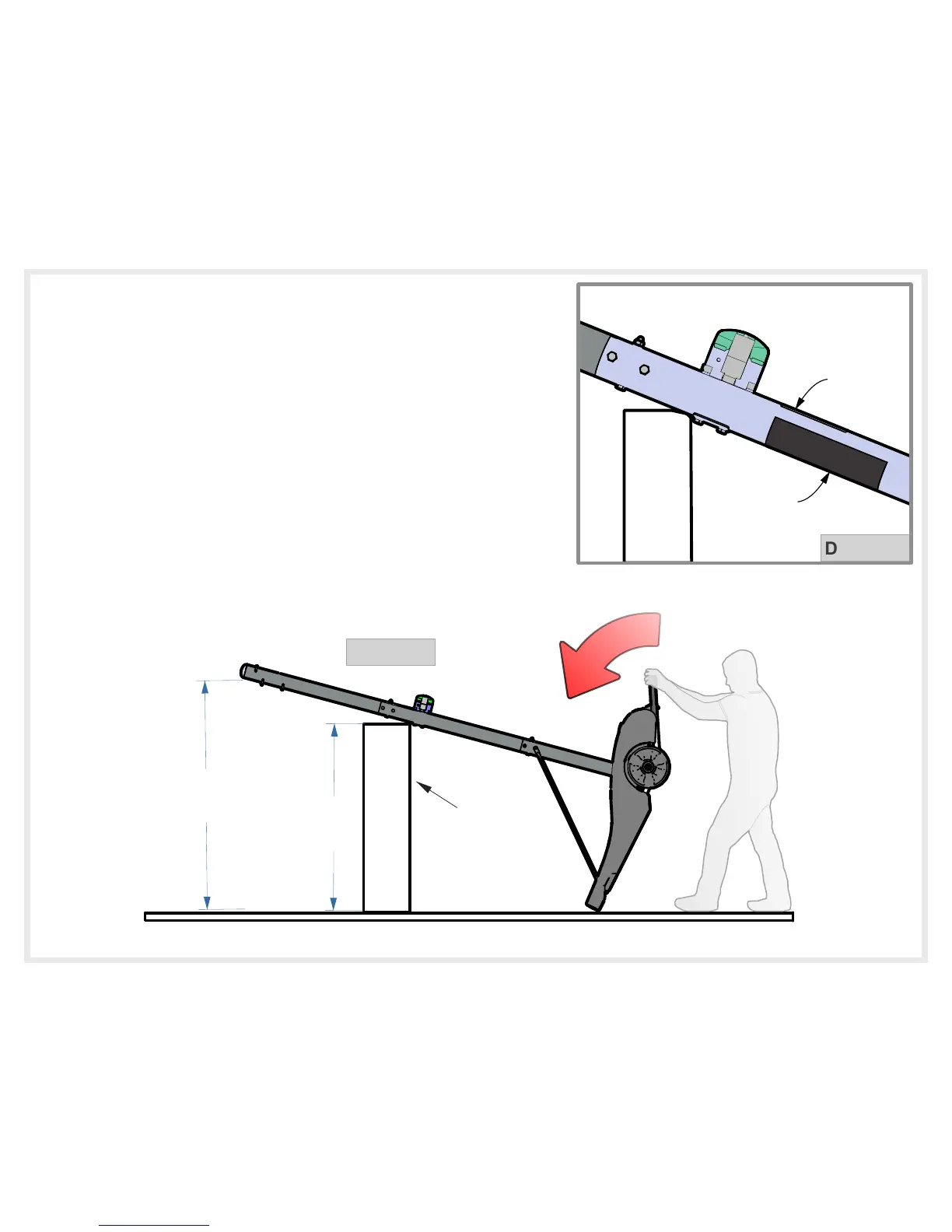

25. You will need a 4’ step ladder or something similar (4’ high) that can
support your system. Alternatively you can use the cardboard box
that your basketball system came in, just make sure that it is in good
condition, if needed tape the box together so it can support the
basketball unit.
26. With the help of another capable adult, tilt your assembly and
rest it on a 4’ step ladder, rest the system above the bolts of the
actuator bracket so the ladder does not damage the warning
label. The height of the end of the pole should be approximately
from 65-70” from the ground. See Detail A & B.
27. Do not set assembly upright until instructed to do so. Have a helper
hold the pole to keep the unit from moving until the arms are attached.
To Next Page
