SilverBack B8401 - Page 30

30

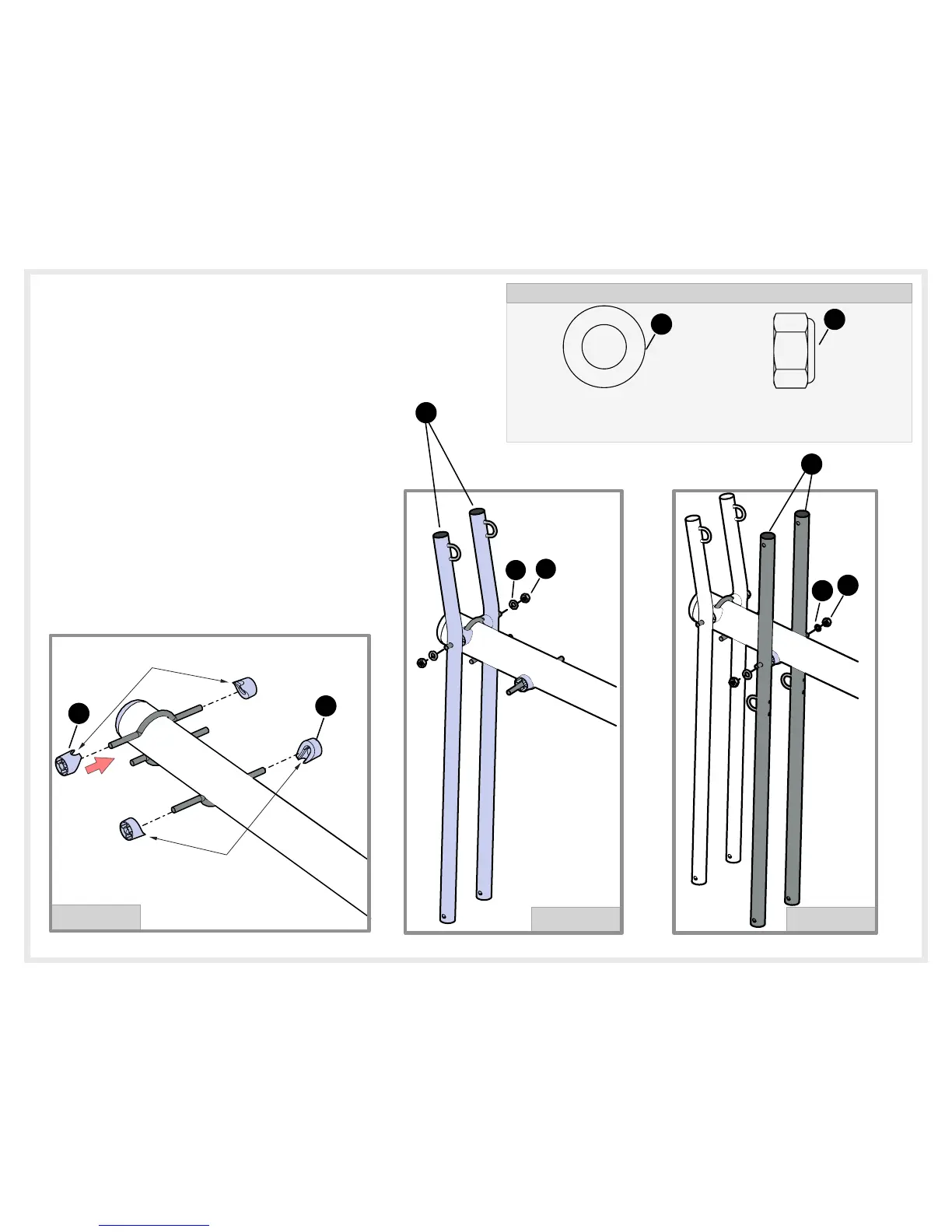

HARDWARE NEEDED (ACTUAL SIZE)
HEX LOCK NUT M12-1.75
2B-6805-00
29
(QTY. 4)
WASHER M12 X 24mm OD
2B-6804-00
28
(QTY. 4)
28. With a helper still holding the pole, attach the
arms to upper pole as shown in Detail A-C.
Finger Tighten Nuts (29) only, you will
tighten this hardware in the next page.
DETAIL CDETAIL B
DETAIL A
NOTCH AT TOP
NOTCH AT BOTTOM
25
25
52
49
28
29
28
29
