31
DETAIL BDETAIL A
HARDWARE NEEDED (ACTUAL SIZE)
26
HEX HEAD BOLT M10-1.5 X 220mm
1B-7085-00
30
(QTY. 2)
WASHER M10
2B-6800-00
23
(QTY. 4)
WASHER, NYLON
3M-9000-00
27
(QTY. 4)
HEX LOCK NUT M10-1.5
2B-6801-00
24
(QTY. 2)
24
23
30
30
24
23
27
27
23
23
27
27

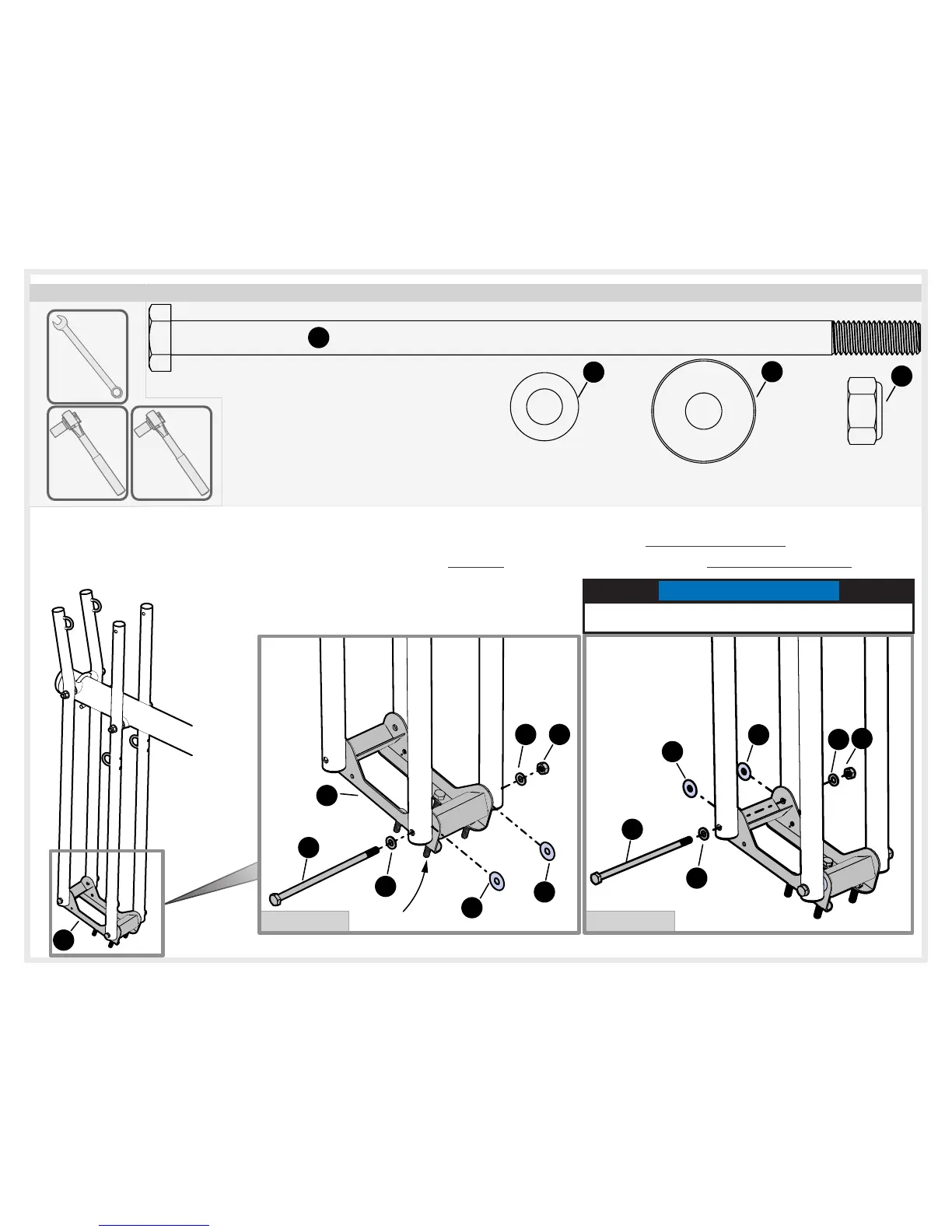

29. Attach Backboard Box (26) to lower and upper arms as shown in Detail A & B. Make sure to put a (27) Nylon washer in
between the Arms and the Backboard Box. Tighten hardware from Detail A & B but back off half a turn once you feel the
hardware is snug. At this time also tighten Nuts from STEP 28 with a19mm Socket and also back off half a turn once you
feel the hardware is snug.
16mm
TOOLS NEEDED
16mm
FINGER TIGHTEN ONLY UNTIL
INSTRUCTED.
26
19mm
IMPORTANT NOTE
DO NOT over tighten hardware, parts
must be able to pivot freely.
Bolts face down
To Next Page
