SilverBack NXT54 - Page 18

18
DETAIL A
DETAIL B
17
16
15
16
18
19

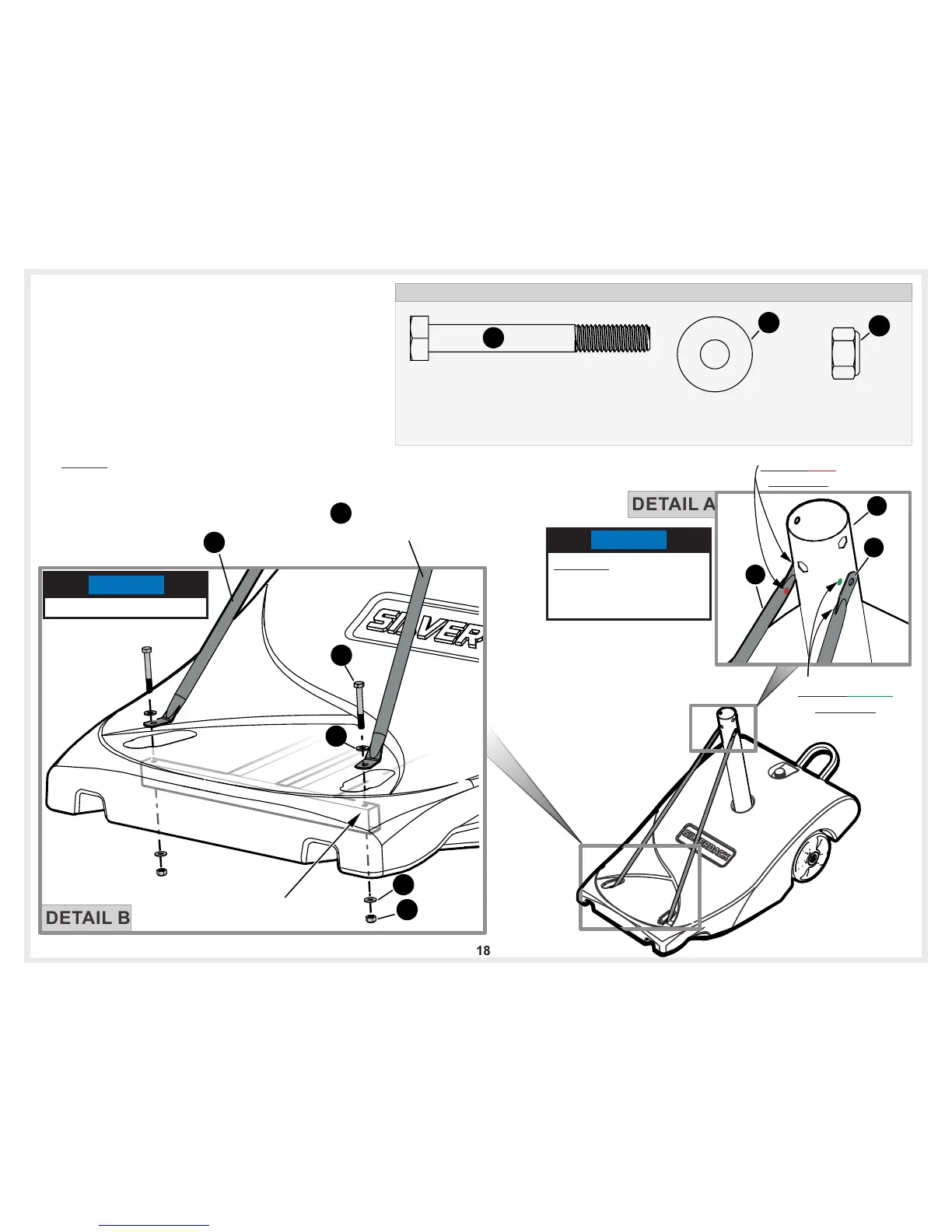

12. Attach Left Brace tube (19) and Right brace Tube
(18). Match up the color coded stickers on green
the Right Brace tube and the lower pole and
match the color stickers on the Left Brace tube Red
and Lower Pole as shown in Detail A. Insert the
hardware through brace tubes, Ballast and Frame
assembly as shown in Detail B.
BRACE TUBE, RH
BRACE TUBE, LH
Lower Frame Assembly
HARDWARE NEEDED (ACTUAL SIZE)
WASHER M8
2B-6797-00
(QTY. 4)
Hex Lock Nut M8-1.25
2B-6808-00
17
(QTY. 2)
HEX HEAD BOLT M8-1.25 X 65mm
1B-7077-00
15
(QTY. 2)
18
19
16
Match Green
Stickers.
Match Red
Stickers.
( Sticker)Green
( Sticker)Red
12
NOTE: Finger Tighten only!
NOTE
FINGER TIGHTEN ONLY!
DO NOT INSERT A BOLT
INTO LINKAGES (18,19)
OR POLE (12) UNTIL
STEP 15.
NOTE
