SilverBack NXT54 - Page 19

19

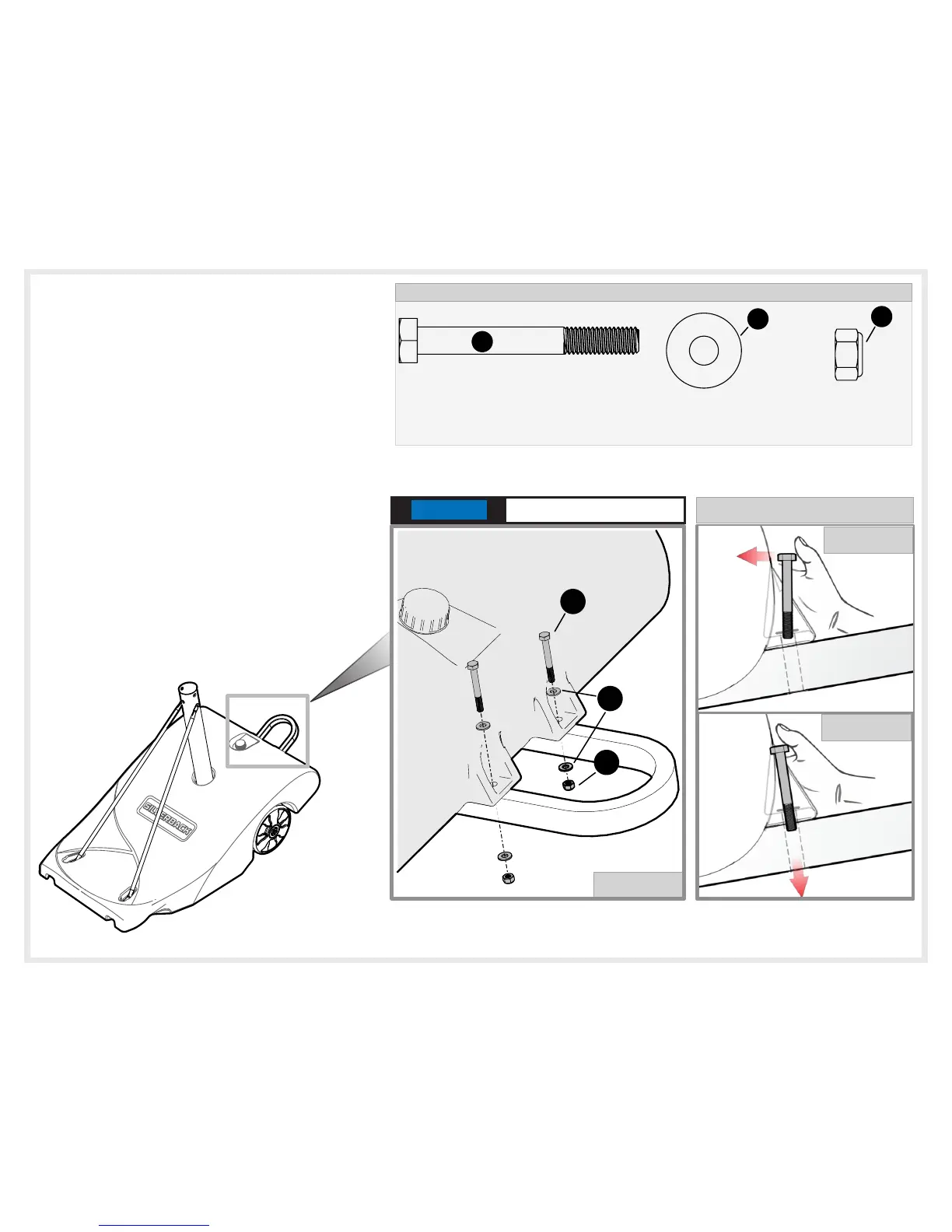

HARDWARE NEEDED (ACTUAL SIZE)
HEX HEAD BOLT M8-1.25 X 65mm
1B-7077-00
15
Hex Lock Nut M8-1.25
2B-6808-00
17
(QTY. 2)
WASHER M8
2B-6797-00
(QTY. 4)
16
(QTY. 2)
DETAIL A
16
17
15
NOTE
FINGER TIGHTEN ONLY!
DETAIL B
DETAIL C
SIDE VIEW
13. Secure ballast to lower assembly as shown in
Detail A. Finger Tighten hardware.
NOTE: If needed use your thumb to push bolt
forward (see Detail B) and then down
(see Detail C) so it goes in easier through
ballast tabs and kick stand tube.
