37
DETAIL A
HARDWARE NEEDED (ACTUAL SIZE)
HEX HEAD BOLT M10-1.5 X 220mm
1B-7085-00
30
(QTY. 1)
WASHER M10
2B-6800-00
23
(QTY. 2)
HEX LOCK NUT M10-1.5
2B-6801-00
24
(QTY. 1)
24
23
23
53
16mm
TOOLS NEEDED
16mm
30

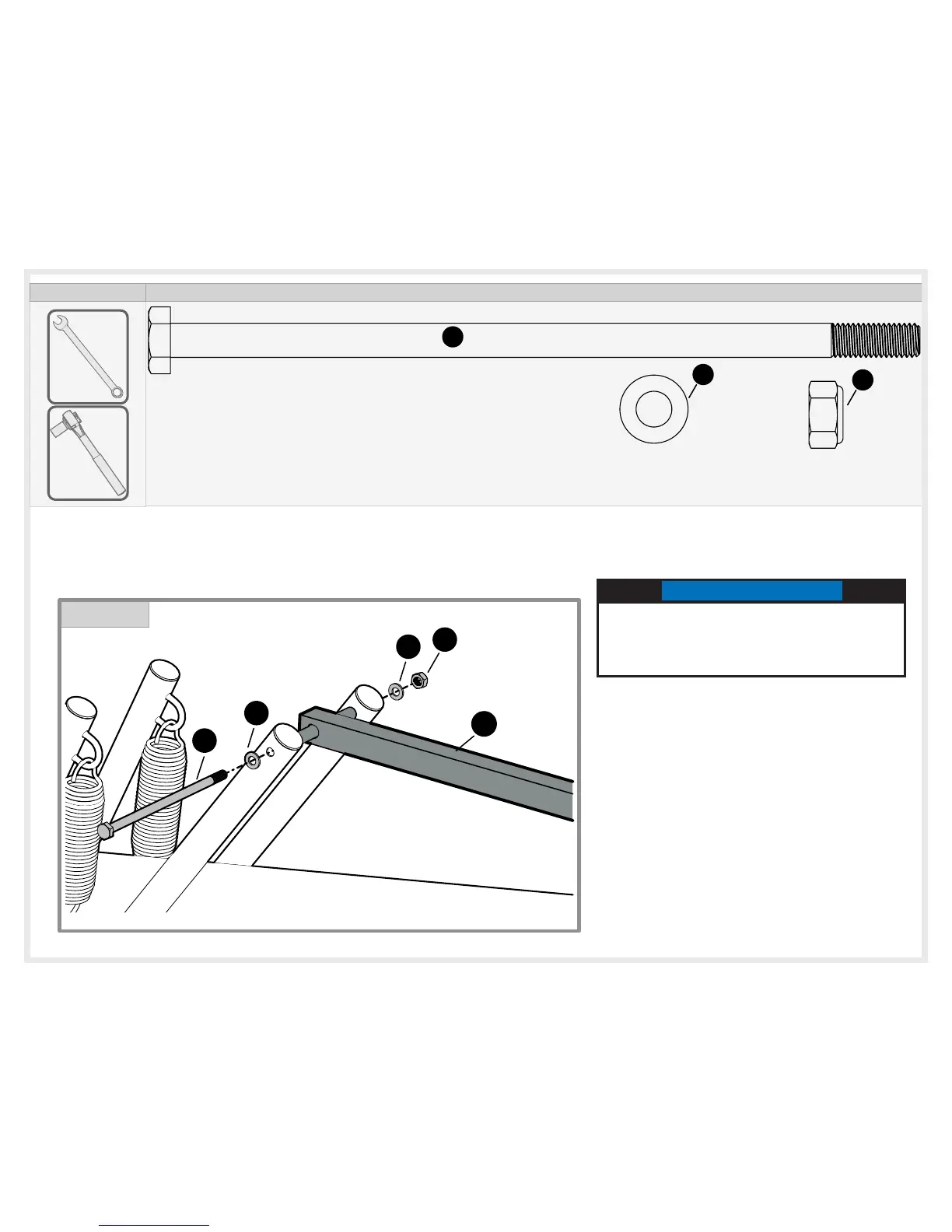

38. Attach other end of the Actuator Bar (#53) to the lower arms, as shown.
You may have to pivot the arms to align actuator. See Detail A.
IMPORTANT NOTE
DO NOT over tighten Hardware, arms must
pivot freely. There should only be about
two threads sticking out past the nut.
To Next Page
