30.

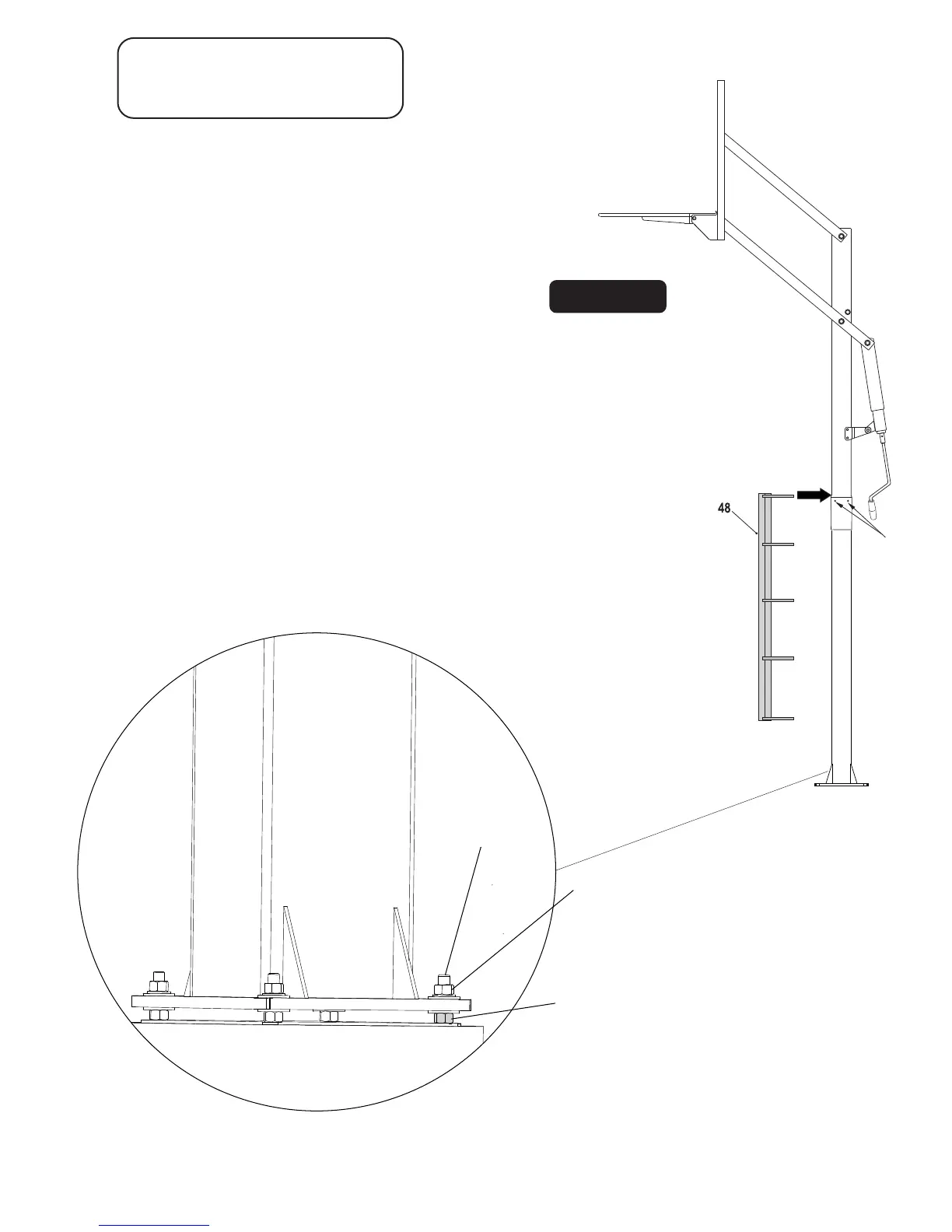

Figure 17
Two adults are recommended for
this step, one to level and one to
adjust the bottom #35 nuts.
If further leveling is required loosen top #35 nuts
but do not loosen past the top of #39 “J” Bolt. DO
NOT REMOVE NUTS #35 Place a level on pole .
and adjust bottom nuts #35 with a 15/16” open
end wrench until pole is level. Tighten top #35 hex
nuts. See Detail B.
29.
14
NOTE: Do not cover the Warning Label on the
front of the pole with the Pole Pad.
NOTE: Top of Pole Pad #48 should
cover Post Screws but remain
below Warning Label on the
front of the Pole.
Post Screws
Detail B
35
39
35
(Bottom)
Secure Post Pad (#48) to front of pole by wrapping straps
around pole and sticking to velcro on opposite side of Pad.
Post Pad should cover Post Screws but remain below
Warning Label on front of the Pole. See Figure 17. Make
sure to repostion Pole Pad if Sliding occurs.
NOTE: DO
NOT remove
top Nut #35
(Top)
To Next Page
