SilverBack SCALERA 1 - Page 43

43
REVO
BOTTOM BRACKET PIVOT ASSEMBLY
BOTTOM BRACKET PIVOT ASSEMBLY

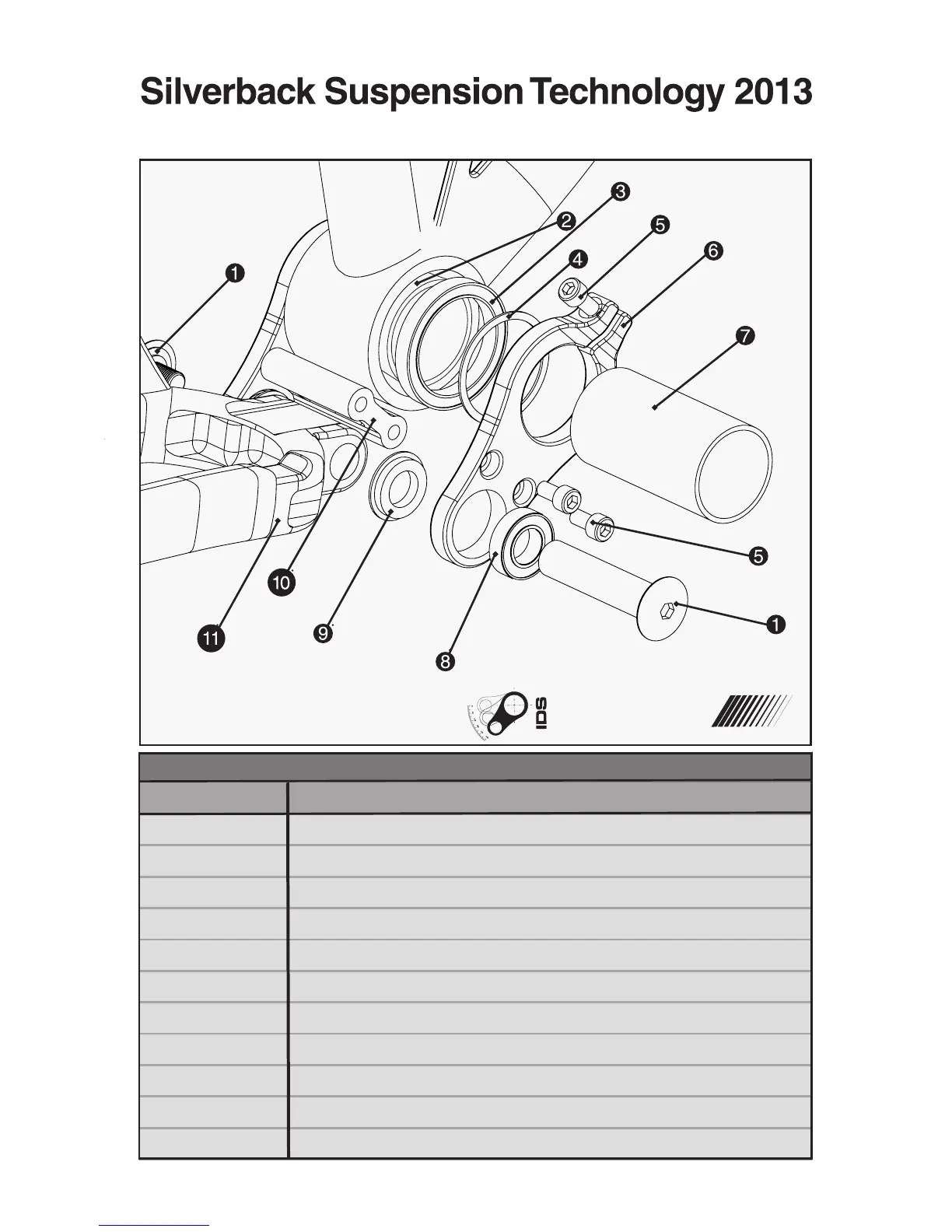

Bottom Bracket Pivot Assembly
Item number Description
1
Chainstay Pivot Bolt
2
DS Axle Bearing Spacer
3
Bearing 6808 x 2
4
IDS BB Spacer x 2
5
IDS Lower Linkage Bolts x 6
6
IDS BB Linkage Right and Left
7
IDS BB Axle
8
Bearing 6902 x 2
9
Rear Triangle Pivot Spacer
10
IDS Centre Support
11
Rear Triangle
