User manual 4
English

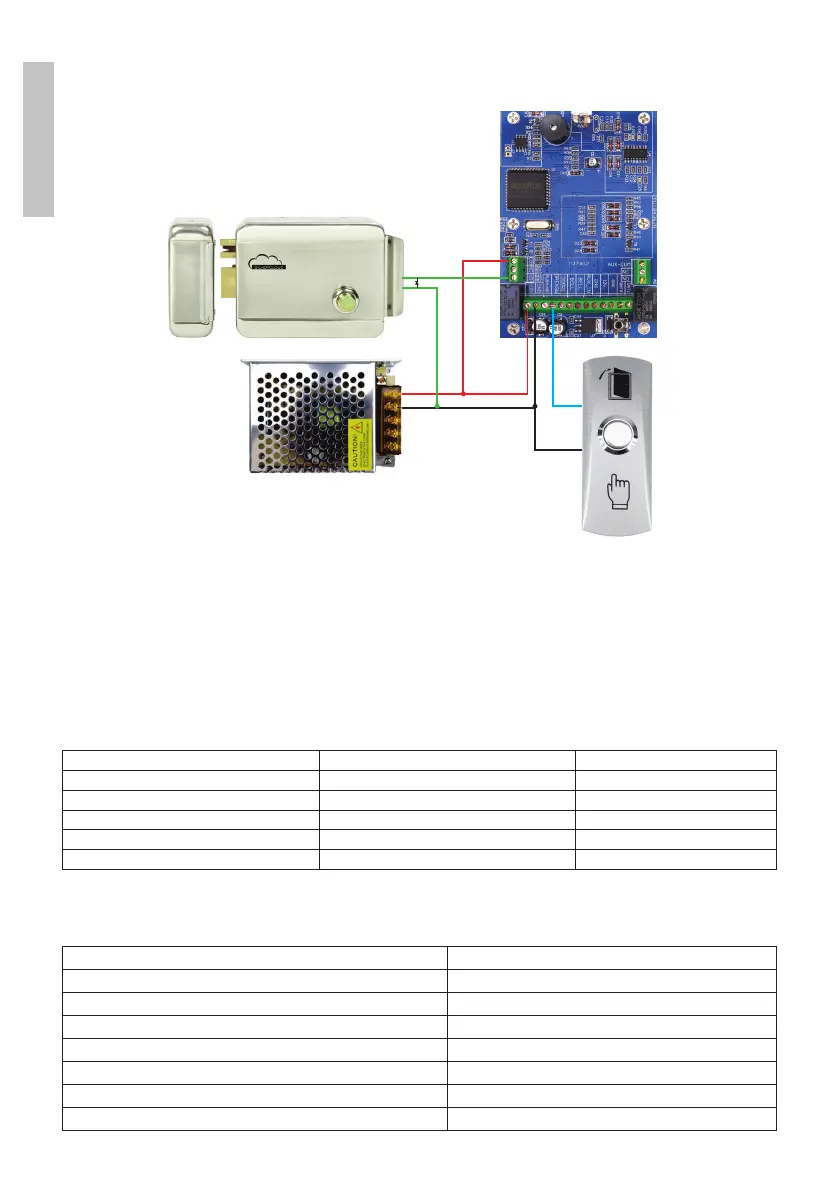

4. EXAMPLE OF INSTALLATION SCHEME:
COM
NO
+12V
- GND
A
C
D
A - Electric lock (PNI YR300, PNI YL500, PNI YE910)
B - Access control keypad (eg. PNI DK220, PNI DK110)
C- Switching power supply (eg. PNI ST3.4A)
D - Access button (eg. PNI PB410)
NOTE: The lock installation must be performed by specialized personnel only.
5. RECOMMENDED COPPER WIRE:
Section mm
2
Diameter Ø Length m
0,30 0,6 8
0,5 0,8 15
1 1,2 25
1,5 1,4 40
2,5 1,8 60
6. TECHNICAL DETAILS:
Electric lock outer housing material Nickel
Cylinder and latch material Brass
Operating voltage (only impulse) 0,5 - 3s @ 7 - 12 V d.c. / 2 - 3.5A
Lifespan at least 200.000 actions
Recommended door thickness 35 - 50 mm
Included keys Yes, 3 pcs.
Dimensions 125 x 101 x 39 mm
Operating temperature -26°C ~ +80°C
