Connection
17
Video Connection to a TV set/Beamer with Component Video
Inputs (YCbCr/YPbPr)
When using Component Video, the video signal is split into three separate “components”, resulting in a higher
picture quality than for S-Video or Composite video. For the Component video output you need a TV screen or
beamer featuring three Component video inputs.
Furthermore, you will need a special Component video cable (not included in the package) with separate
connectors for the Y, Cb/Pb and Cr/Pr signals. This cable also supports the high-end Progressive Scan mode
when used together with a high-end P-Scan-compatible screen.

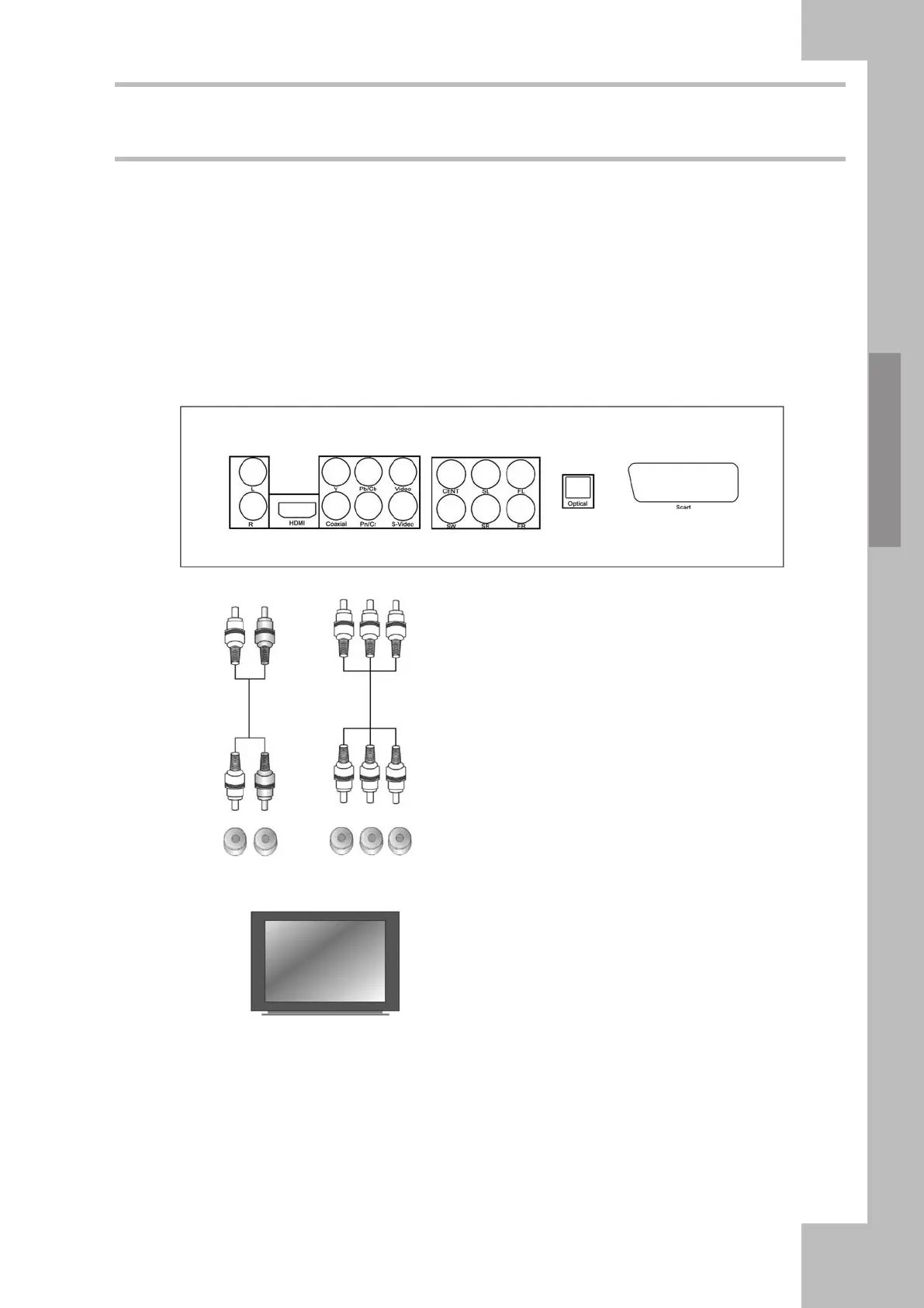

To use the Component video output or Progressive Scan mode, the following steps must be performed:
white red
Stereo Cinch
cable
to TV screen’s
stereo input
Component
Cinch cable
to TV screen’s
Component input*
* For displaying progressive-scan
pictures, the TV set must have a P-
Scan Component input
