Installation of the wall bracket
DANGER – ELECTRIC SHOCK!
► Ensure that there are no power cables or other conduits or pipes in the wall
at the location where you intend to bore the holes for the wall bracket
3.
Drilling into a current-carrying electric cable can be potentially fatal!

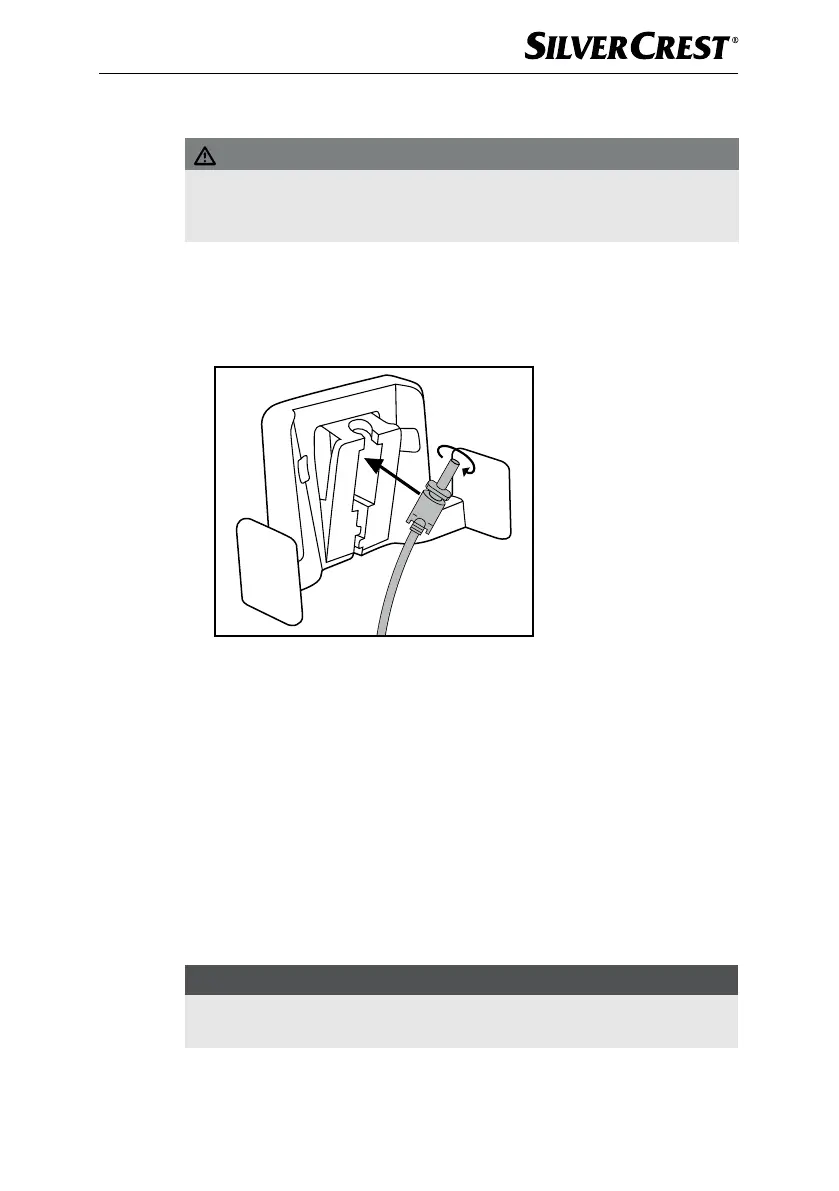

1) Insert the barrel plug
5 on the mains adapter 4 into the wall bracket 3 as
shown in the following diagram:
First, feed the cable through the cable routing and then push the barrel plug 5
into the opening in the wall bracket 3 so that it is firmly in place. Secure the
barrel plug 5 by turning it.
2) Select a suitable installation location for the wall bracket 3:
It must be possible to remove the handheld vacuum cleaner easily and there
must be an accessible mains power socket for the mains adapter 4.
3) Drill two holes about 60 mm apart. Use the wall bracket
3 to mark the
holes, to ensure the correct spacing. The drill holes must be suitable for 6 mm
wall plugs.
4) Push the wall plugs into the holes and then screw the wall bracket
3 firmly
into place using the screws.
5) You can place the nozzles on the accessories holder on the side.
6) Connect the mains adapter
4 to a mains power socket.
Charging
NOTE
► Check to ensure that the on/off switch
6 has been pushed back (to the
position "0") before starting the charging process.
■ Place the handheld vacuum cleaner from above into the wall bracket
3 so
that the barrel plug 5 slips into the socket on the handheld vacuum cleaner.
The charge indicator lamp 7 lights up red and the charging process begins.
