This document describes the SilverCrest Mechanical Socket Timer, a device designed for controlling the on/off times of connected electrical appliances.

Function Description

The SilverCrest Mechanical Socket Timer is a daily timer switch intended for private use in enclosed, dry rooms. It allows users to set specific switching times for connected devices, enabling automatic power on and off. The timer operates with a clock ring and switching pins. Each switching pin corresponds to approximately 15 minutes of switching time. Users push down the pins to set the desired "on" periods. The device also features a toggle switch to select between two operating modes: switching mode (timed operation) and continuous mode (constant power).

In switching mode, the device will activate and deactivate the connected load according to the set switching times. For example, if pins are pushed down to cover the period from 8:30 pm to 10:30 pm, a connected load will be switched on during this time. The clock ring is used to adjust the current time, aligning it with a specific marking on the timer.

The device is equipped with a child-proofing feature, requiring both pins of a plug to be inserted into the socket simultaneously.

Important Technical Specifications

Model/Type number: 10615A/TE-10
Operating voltage: 240V~ 50Hz
Switched voltage: 240V~ 13(2)A
Switching capacity: max. 3120W
Shortest switching time: approx. 15 minutes
Power reserve: none (meaning it does not retain time settings during a power outage)
Use: Indoors only
Micro-switch: With a contact opening width of < 3 mm

Usage Features

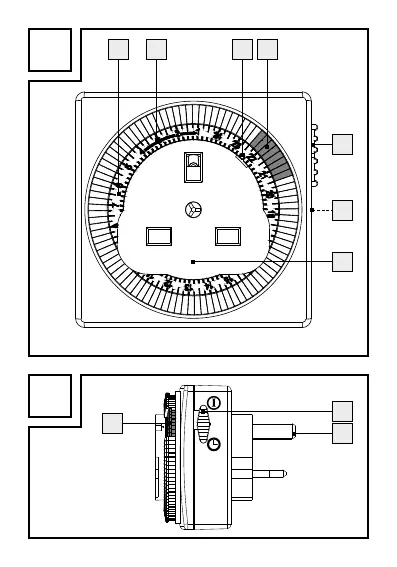

Setting Switching Times (Fig. A): To set the times when the connected device should switch on or off, use the switching pins (4). With a pointy object, such as a pen, push one or several pins down until they lock into place. Each pushed-down pin represents approximately 15 minutes of "on" time. For example, if the grey pins in Figure A mark 8:30 pm to 10:30 pm, the load will be switched on during this period. To disable a set switching time, push the corresponding pins back up.

Selecting the Operating Mode: The timer can operate in either switching mode (timed operation) or continuous mode (constant power).

Activating Switching Mode:
1. Plug the device into a socket.
2. Connect and switch on the load.
3. Slide the toggle switch (5) all the way into the clock symbol (①) position until it locks in.
Activating Continuous Operation:
1. Plug the device into a socket.
2. Connect and switch on the load.
3. Slide the toggle switch (5) all the way into the "I" symbol (①) position until it locks in.

Adjusting the Time: To set the current time:

Turn the clock ring (1) in the direction of rotation (2).
Align the current time with the marking (3).
Plug the device into a socket to switch it on.
Connect and switch on the load.

Safety Notices:

Read the operating instructions thoroughly before use and keep them in a safe place.
Children should not use the device unsupervised due to the dangers of improper use of electrical devices.
Only plug the device into conventional isolated ground receptacles with an alternating current of 240V~ and 50 Hz.
Only connect loads within the specified capacities of the device.
Do not cover the device, as heat accumulation can pose a fire hazard.
Regularly check the device for damage. Do not replace damaged parts; contact the manufacturer or dispose of the device responsibly.
Do not touch the device with wet hands.
Disconnect the device from the power mains to de-energise it.
Do not connect devices that could pose hazards during unsupervised operation (e.g., heaters).
The device is child-proofed; both pins of the plug must be inserted into the socket at the same time.

Maintenance Features

Cleaning:

ATTENTION! RISK OF ELECTRIC SHOCK! Always disconnect the device from the mains before cleaning.
ATTENTION! RISK OF ELECTRIC SHOCK! Do not allow liquids to enter the device, as this can result in a short circuit.
ATTENTION! Danger due to harsh cleaners. Never use harsh or scouring cleaners.
Clean the device with a soft, slightly damped cloth and mild detergent.
Ensure the device is completely dry before using it again.

Disposal:

The packaging materials are recyclable and should be disposed of at local recycling facilities. The packaging is marked with abbreviations (a) and numbers (b) indicating material types (e.g., 1-7: plastics, 20-22: paper and fibreboard, 80-98: composite materials).
The product itself is also recyclable. Do not dispose of electric equipment in household waste.
In accordance with European Directive 2012/19/EC, used electrical equipment must be collected separately and recycled in an environmentally responsible way. Contact your local municipality for information on collection facilities.

Warranty and Service:

This product comes with a 36-month warranty from the date of purchase.
The warranty does not cover damages due to improper handling, failure to comply with operating instructions, or manipulation by unauthorised persons.
In case of defects, contact your retailer immediately.
For service inquiries, contact Uni-Elektra GmbH at Hummelbergstr. 6, 72184 Eutingen im Gäu, GERMANY. Telephone: 00800 888 11 333. Email addresses for specific regions are provided (uni-service-GB@teknihall.com, uni-service-IE@teknihall.com, uni-service-NI@teknihall.com).
Have your receipt and the item number (IAN 354198_2010) ready when enquiring about your product.
