NOTE:
The hydraulic cylinder is designed to hold table. As is the nature of the hydraulic system, table lowers very
slowly over and extended period of time, Please note the table does not stay at the same position
ionindefiinitely.
4-3. Lowering table
WARNING
DO NOT put foot or hand in scissors mechanism.
Pull the lowering down and table lowers.
5. Specifications
Model
Capacity
(kg)
Table
(mm)
Table
Height(mm)
Stroke
L×W×H
(mm)
Pedal to top.
(approx. times)
Wheel
(mm)
φ
Weight
(kg)
BS15
150
700×450
225-760
535
1000×450×950
16
100
41
BS25
250
830×500
335-915
580
1100×500×1010
25
125
78
BS50
500
1010×520
430-1000
570
1130×520×1185
44
150
118
BS75
750
1010×520
432-1000
568
1130×520×1260
55
150
120
BS100
1000
1010×520
440-960
520
1130×520×1260
68
150
137
BS30D
300
1010×520
435-1585
1150
1130×520×1260
53
150
150
BS50D
500
1010×520
435-1585
1150
1130×520×1260
68
150
168
BS80D
800
1010×520
490-1400
910
1130×520×1275
95
150
165
6. Service instruction
6.1-1. Lubricate each point described below every month:
6.2.Change hydraulic oil every 12 months.

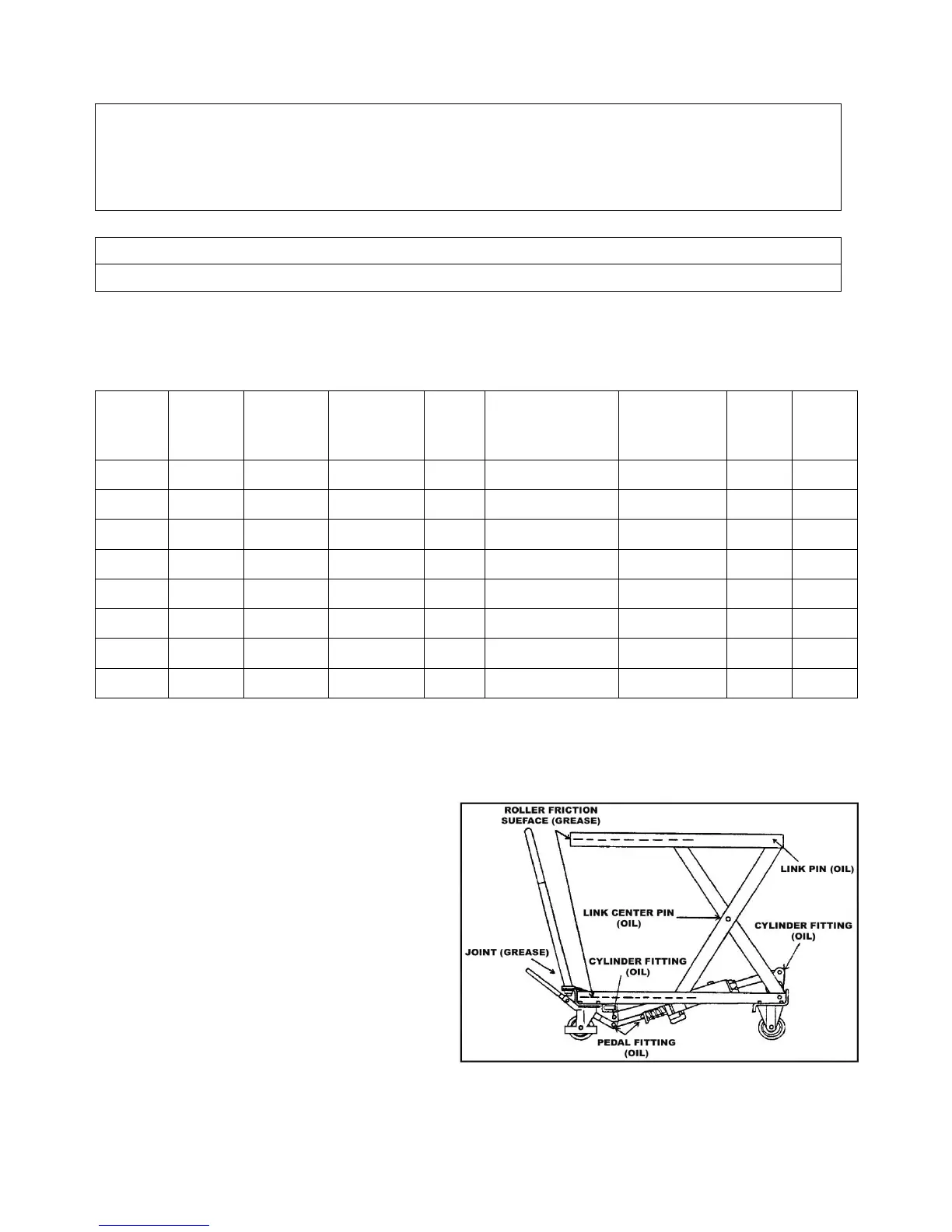

Lubricating Points
(1) Fitting of cylinder……Oil
(2) Roller friction surface……Grease
(3) Link Pin ……Oil
(4) Pedal fitting point……Oil
(5) Link center pin……Oil
(6) Joint……Grease
(7) Grease nipple……Grease
(8) Hydraulic circuit
