Produc t Over view
Specifications

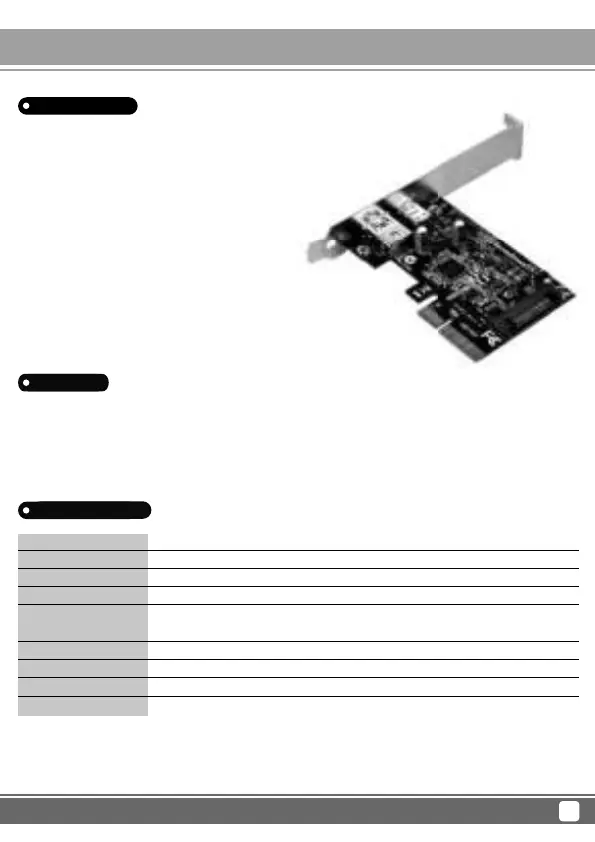

The SilverStone ECU03 is a USB 3.1 expansion card with external
Type A and Type C connector. It offers 10Gbps bandwidth for
excellent stability and transfer rate when multiple external USB
devices are in use simultaneously. The ECU03 is also backwards
compatible with USB 3.0/2.0/1.1 and supports UASP (USB Attached
SCSI Protocol) for enhanced performance. For operating systems
with XHCI (eXtensible Host Controller Interface), the ECU03 will
easily install without the need for any drivers because it also supports
XHCI. For those looking to upgrade or add additional USB 3.1 ports
or devices to their computer, the ECU03 is a great starting point.
SuperSpeed USB 3.1 with Type A and Type C ports
PCI-E Gen2.0 x2, throughput up to 10Gbps
Compliant with eXtensible Host Controller Interface (XHCI) specification Revision 1.1
Compliant with USB Attached SCSI Protocol Revision 1.0 (UASP)
Includes optional low profile slot cover for supporting low profile cases
Model No.
Power requirement
Form Factor
USB 3.1 controller
USB Ports
Transmitting Speed
Operating system support
Power Management
Current protection
* If your OS version is Windows 7 or earlier, please install driver (available from SilverStone website) prior to using the ECU03.
** Windows 8 or 8.1, 10 supports ECU03 automatically so you do not need to install additional driver for it.
*** User should check for XHCI function in Ubuntu/Linux or Mac OS, if computer system supports XHCI function then it can support ECU03 automatically
without additional driver installation.
SST-ECU03
5V via SATA 15-pin power connector
Low profile - PCI-E 2.0 x2 (10Gbps)
ASMedia ASM1142
USB 3.1 Type A x 1
USB 3.1 Type C x 1, DFP with Rp=10KΩ and up to 5V 3A
USB 3.1 Gen2 (10Gbps), USB 3.1 Gen1/USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Windows 7 (32bit/64bit)*, 8/8.1/10(32bit/64bit)**, Ubuntu/Linux/Mac OS***
Support USB 3.1 and USB 2.0 link power management
Support over current detection and protection
