Silverton 42 C - Battery #1 Switch Functions; Battery #2 Switch Functions

42C System Operations - 16

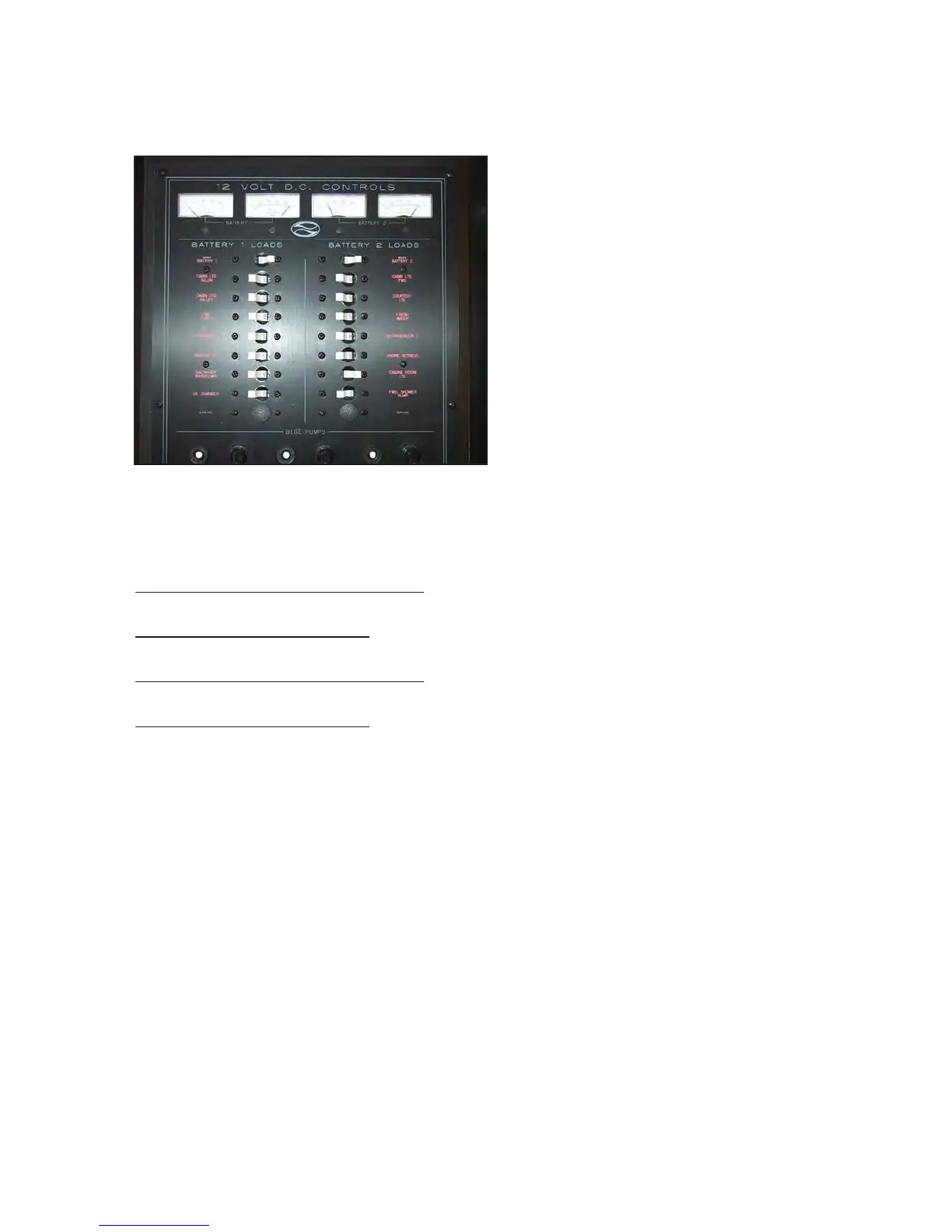

The photo below shows the top of the
AC/DC Panel. Notice the two columns of
switches.
There are four meters across the top of
the panel. They are as follows (from left to
right):
DC Amperage Meter for Battery #1 - Dis-
plays the Amperage Draw on Battery #1.
DC Volt Meter for Battery #1 - Displays
the Voltage Draw on Battery #1.
DC Amperage Meter for Battery #2 - Dis-
plays the Amperage Draw on Battery #2.
DC Volt Meter for Battery #2 - Displays
the Voltage Draw on Battery #2.
Below the meters are two columns of
switches. The left-hand side is all the
switches connected to battery #1. The
right-hand side is all the switches con-
nected to Battery #2.
The switches for the left column (BAT-
TERY #1) are as follows (from top to bot-
tom):
- DC Main #1: Supplies 12 Volt Power
from Battery #1 to all breaker switches
directly under this switch.
-Cabin Lights Salon: Supplies power to
the cabin lights in the salon and galley.
-Cabin Lights Galley: Supplies power to
the cabin lights in the galley.
-Forward Toilet: Supplies power to the
forward toilet.
-Refrigerator 1: Supplies DC power to the
refrigerator.
-Macerator: Supplies power to the Mac-
erator pump.
-Saltwater Washdown: Supplies power
to the Salt Water Washdown Unit in the
cockpit.
-Oil Changer: Supplies power to the op-
tional Oil Changer Unit.
-Spare: Supplies power to additional ac-
cessories.
The switches for the right column (Battery
#2) are as follows (from top to bottom):
-DC Main #2: Supplies 12 Volt DC power
from Battery #2 to all breaker switches
directly under it.
-Cabin Lights Forward: Supplies power to
the cabin lights in the forward stateroom
and forward head.
-Courtesy Lights: Supplies Power to all
courtesy lights throughout the yacht.
-Fresh Water: Supplies power to the fresh
water pump.
-Refrigerator #2: Supplies DC Power to
the refrigerator.
-Shore Retrieve: This switch controls the
optional Glendinning.
Engine Room Lights: Supplies power to
the Engine Room Lights.
-Forward Shower Pump: Supplies Power
to the Forward Shower Sump Pump.
-Spare: Supplies power to additional ac-
cessories.
