42C System Operations - 21
FUSE BOXES
In the AC/DC Panel, located in the upper
portion of the electrical cabinet, there are
two (2) fuse boxes.
Turn off all electric power to your AC/
DC Panel when opening the door to the
electrical cabinet. The power can be
turned off by the two main DC switches
at the top of the panel, and the main AC
switch in the lower portion of the Panel.

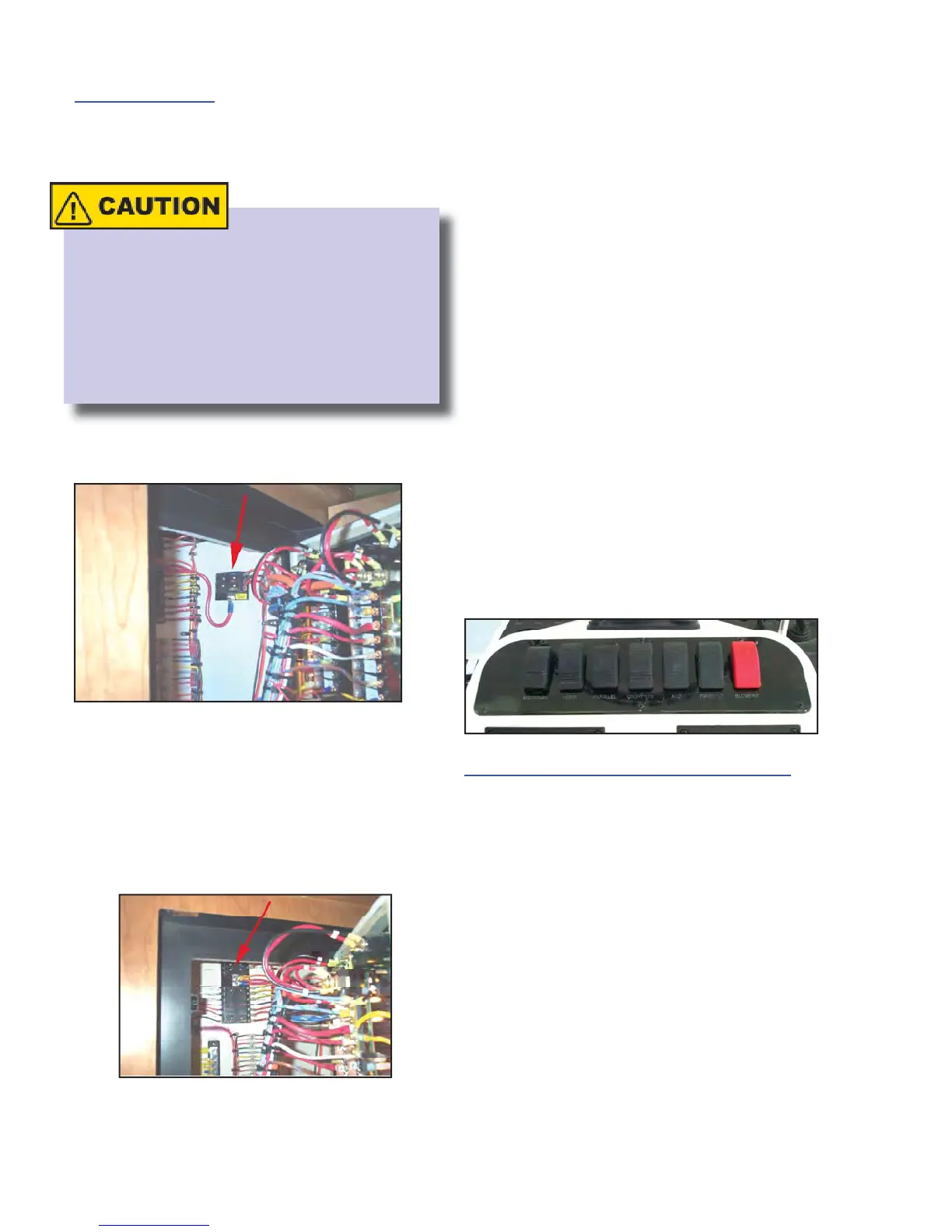

The photo below shows the upper right
fuse box.
In this fuse box you will fi nd the following
(on the right hand side):
From top to bottom-
• Stereo Memory - 15 amp.
• 12 VDC Outlet - 15 amp.
The photo below shows the upper left fuse
box.
In this fuse box you will fi nd the following
(left side, from top to bottom):
• CO Monitor (forward) - 1 amp.
• CO Monitor (mid) - 1 amp.
• CO Monitor (salon) - 1 amp.
• Waste Meter - 3 amp.
• Water Meter - 3 amp.
• 12 Volt DC Stereo - 15 amp.
• Locker Lights - 10 amp.
• Shower Sump Pump - 7.5 amp.
• Oil Changer - 15 amp.
• Shore Return - 20 amp.
Also (right side, from top to bottom):
• Galley Exhaust - 5 amp.
• Head exhaust - 5 amp.
• Shower Exhaust - 5 amp.
• Panel Lights - 5 amp.
• Port Window - 15 amp.
• Starboard Window - 15 amp.
• Fish Box Pump - 20 amp.
• Amp. Antenna - 5 amp.
HELM ELECTRICAL SWITCHES
In addition to the switches on the AC/DC
Panel, there are also switches at the helm.
These switches are 12 Volt Switches.
These switches will be described in order
(from left to right).
ANCHOR/NAVIGATIONAL LIGHTS - This
switch is a three position switch. The three
positions are OFF, Navigation Lights, and
Anchor Lights.
HORN - This is a push button switch. To
