PROPELLERS

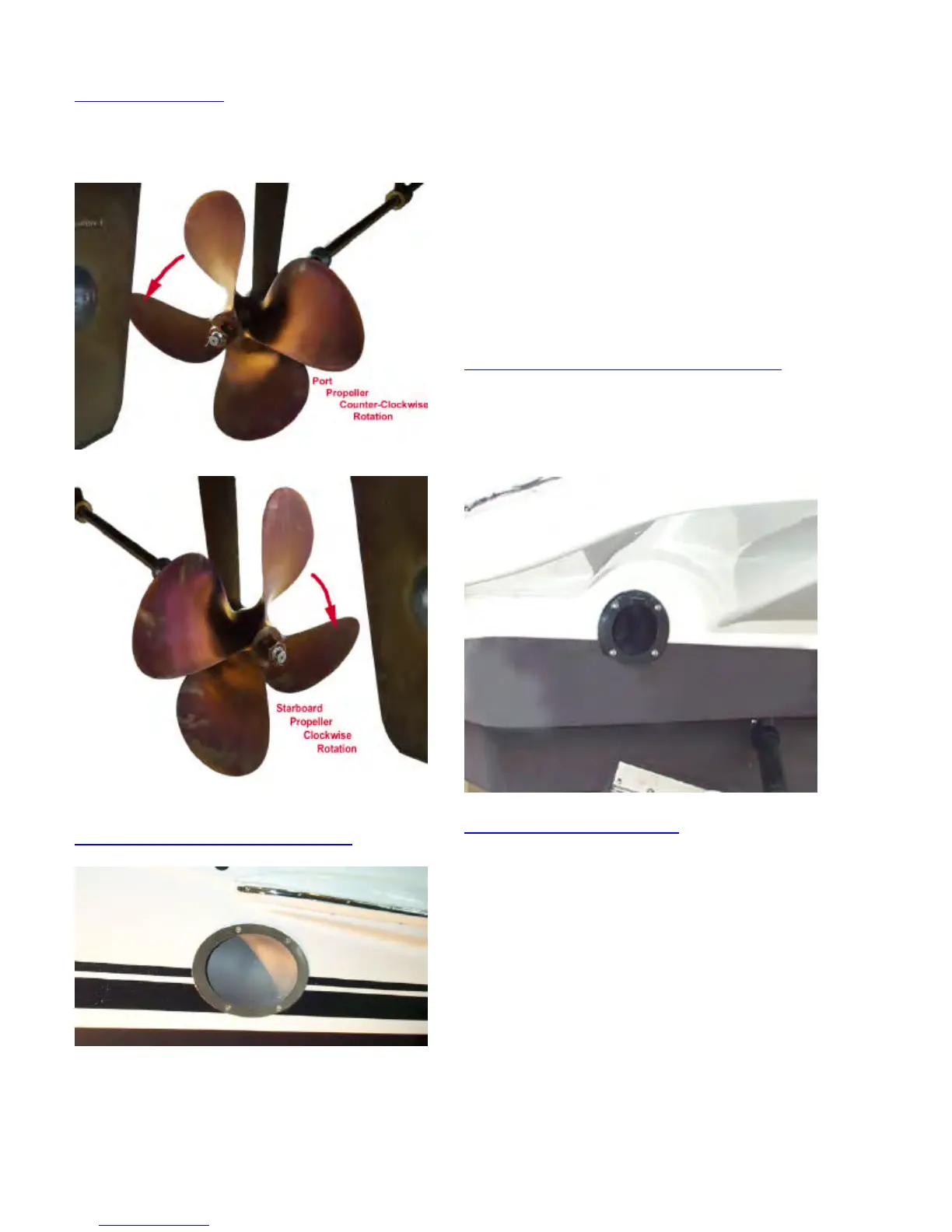

The photographs below display the propel-
ler rotation for the Port and Starboard
sides.
ENGINE EXHAUST PORTS
There are two Engine Exhaust Ports; one
for each engine. The Port Engine Exhaust
Port is located on the Port side of the hull
forward of the transom and the Starboard
Engine Exhaust Port is located on the
Starboard side of the hull forward of the
transom. The photograph above displays
the Port Engine Exhaust Port. The Star-
board Engine Exhaust Port is in the identi-
cal location on the port side of the yacht.
GENERATOR EXHAUST PORT
The photograph below displays the Gen-
erator Exhaust Port. It is located on the
port side of the transom, outboard of the
port trim tab.
DISCHARGE PORTS
The various Discharge Ports (also known
as through-hull ports) are located on the
starboard and port sides of the hull. Refer
to the Thru-Hull Schematic Drawings in
the SCHEMATICS SECTION of this
manual.
