Silverton 43 - Page 74

74

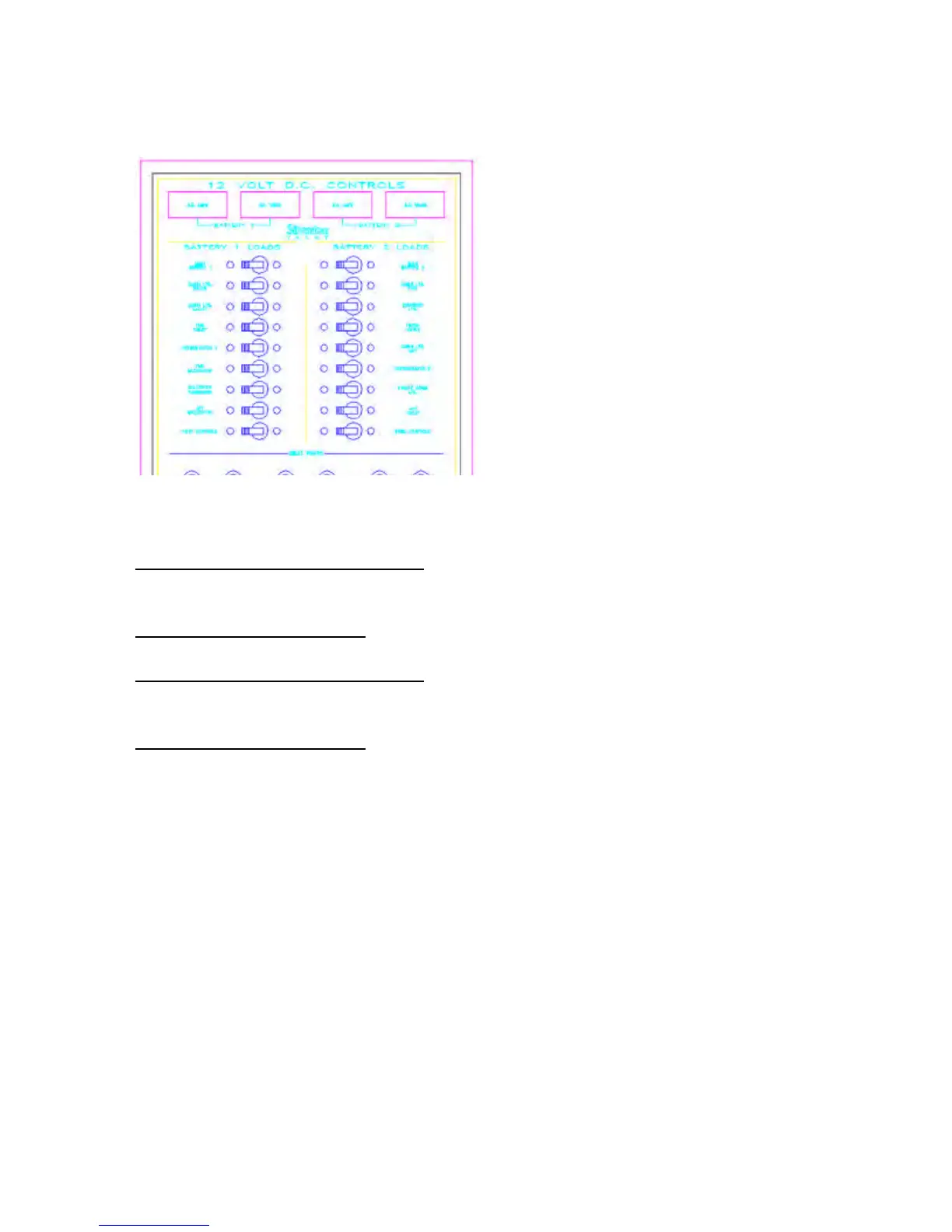

The photo below shows the top of the AC/
DC Panel. Notice the two columns of
switches.
There are four meters across the top of
the panel. They are(from left to right):
DC Amperage Meter for Battery #1 -
Displays the amperage draw on Battery
#1.
DC Volt Meter for Battery #1 - Displays the
Voltage draw on Battery #1.
DC Amperage Meter for Battery #2 -
Displays the amperage draw on Battery
#2.
DC Volt Meter for Battery #2 - Displays the
Voltage Draw on Battery #2.
Below the meters are two columns of
switches. The left hand side are all the
switches connected to battery #1. The
right hand side are all the switches con-
nected to Battery #2.
The switches for the left column (BAT-
TERY #1) are (from top to bottom):
- DC Main #1: Supplies 12 Volt Power from
Battery #1 to all breaker switches directly
under this switch.
-Cabin Lights Salon: Supplies power to the
cabin lights in the salon and galley.
-Cabin Lights Galley: Supplies power to
the cabin lights in the galley.
-Forward Toilet: Supplies power to the
forward toilet.
-Refrigerator 1: Supplies DC power to the
refrigerator.
-Fwd Macerator: Supplies power to the
forward Macerator pump.
-Court Lights Aft: Suppies the power to the
courtesy Lights in the Aft Stateroom.
-Aft Macerator: Supplies power to the aft
Macerator pump.
-Port Controls: Supplies power to addi-
tional accessories.
The switches for the right column (Battery
#2) are (from top to bottom):
-DC Main #2: Supplies 12 Volt DC power
from Battery #2 to all braeker switches
directly under it.
-Cabin Lights Forward: Supplies power to
the cabin lights in the forward stateroom
and forward head.
-Courtesy Lights: Supplies Power to all
courtesy lights throughout the yacht.
-Fresh Water: Supplies power to the fresh
water pump.
-Cabin Lights Aft: Supplies power to the
aft stateroom main lights.
-Refrigerator #2: Supplies DC Power to
the refrigerator.
-Engine Room Lights: Supplies power to
the Engine Room Lights.
-Aft Toilet: Supplies Power to the aft toilet.
-Stbd Controls: Supplies power to addi-
tional accessories.
