BATTERY SYSTEM
The batteries located in the Engine Compart-
ment are 12 volt batteries wired in series to
give 24 volt service. The “Battery 1” Battery
Switch located at the Battery Switch Panel
in the salon is fed from the port batteries.
The “Battery 2” Battery Switch is fed from
the starboard batteries.
The battery system is charged thru alterna-
tors of the engines.
The port & starboard battery banks may be
paralleled thru the parallel start switch at
the helm.
The generator Start is thru the starboard
bank of batteries.

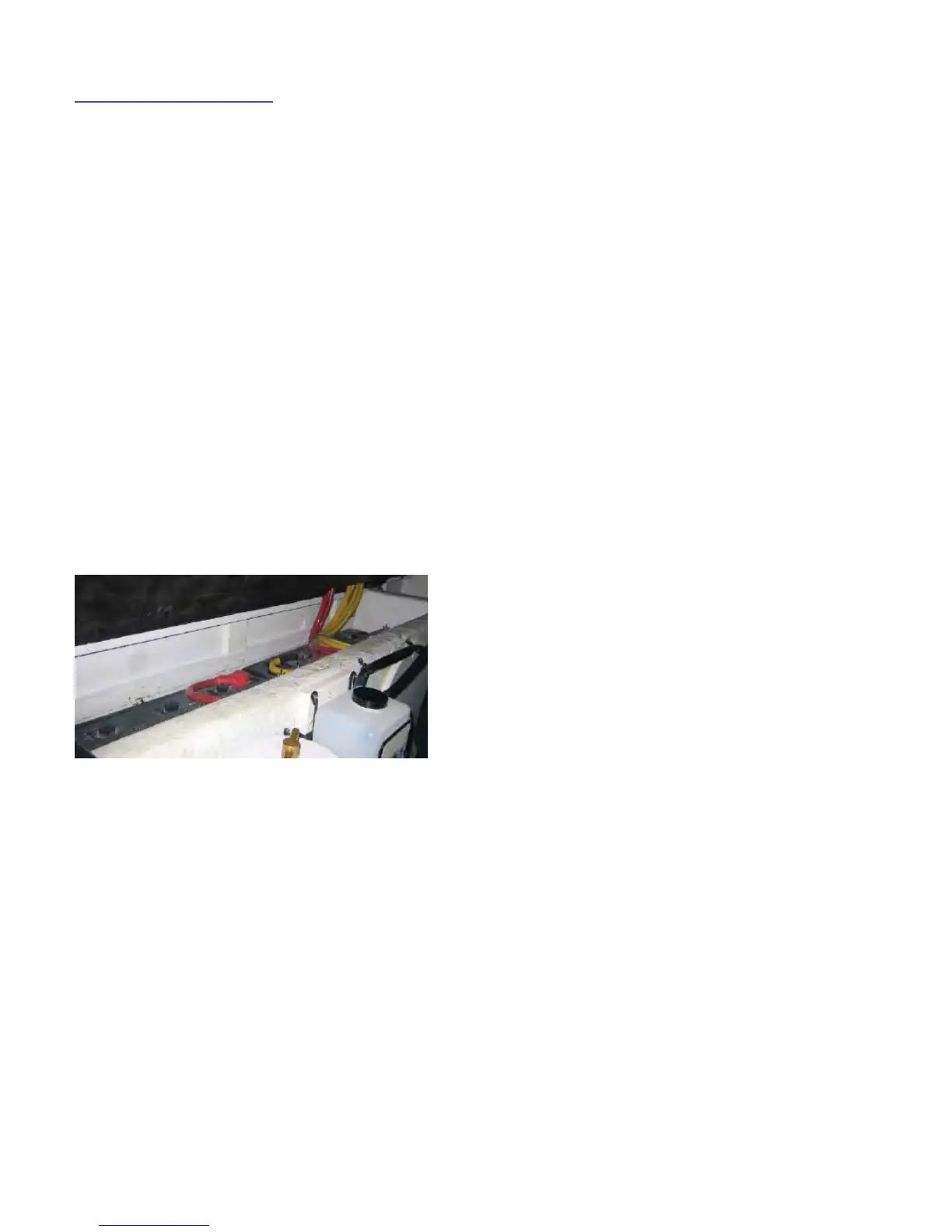

The photo below shows the Starboard Bat-
tery Bank.
BATTERY CHARGERS: Located above the
Batteries on each side of the engine room
are the battery Charges. The chargers have
an AC input from your 120 volt supply, and
a 24 volt output.
Refer to the Battery Chargers Owner’s
Manual for operation of these chargers.
Batteries also get charged from the en-
gines when they are running.
