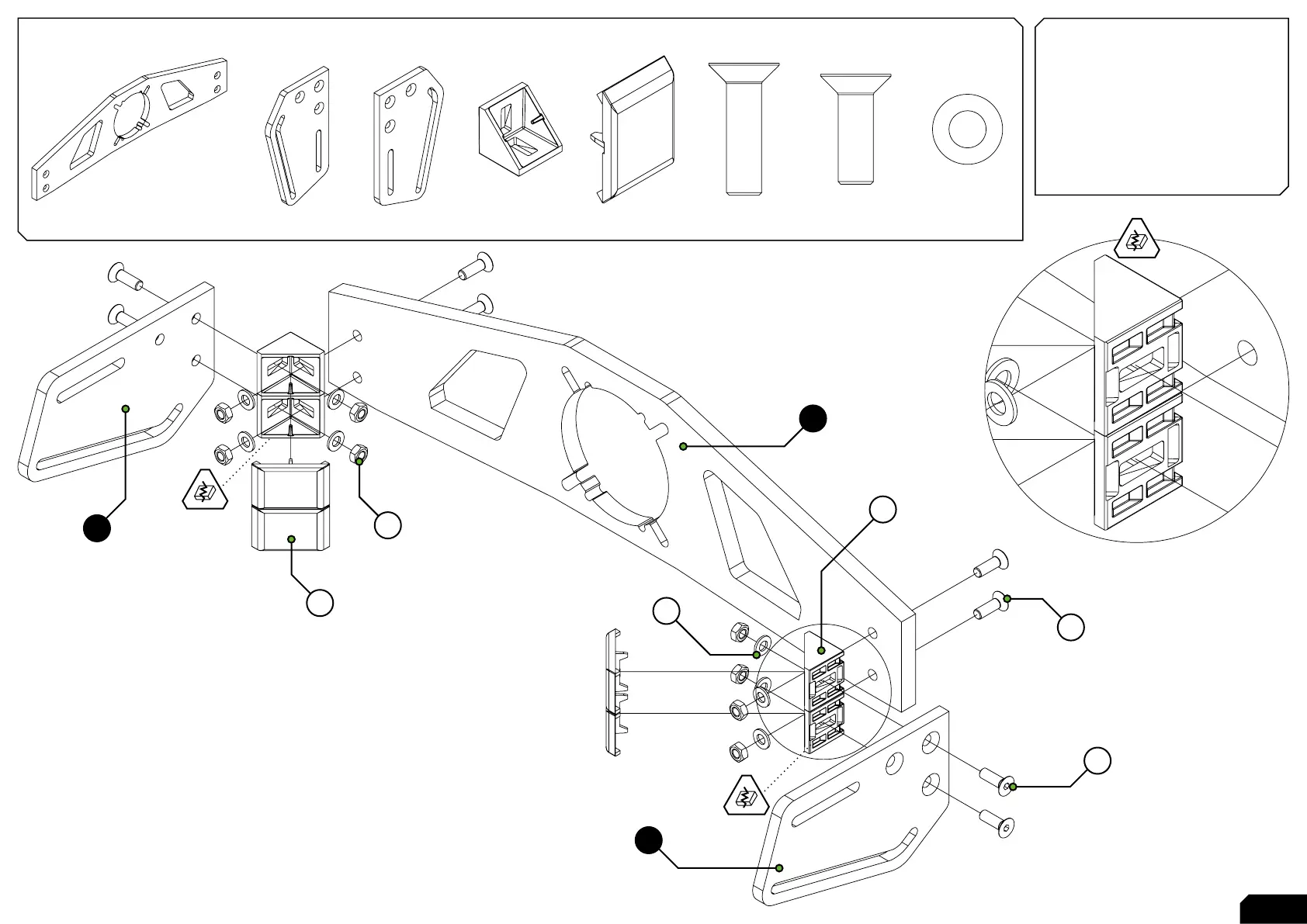

Sim-Lab P1-X - Front Mount Assembly; Front Mount Component Preparation

13
| 13 28
IF YOU PURCHASED THE
WHEEL DECK,
CONTINUE ON PAGE 15
IF YOU PURCHASED THE
SIDE MOUNT,
CONTINUE ON PAGE 17
Corner Bracket
Cap
4X
M8 X 30
(F9)
4X
Corner
Bracket**
4X
M8 X 25
(F10)
4X
Washer M8
(F12)
8X
Front Mount
Side Plate Right
1X
Front Mount
Side Plate Left
1X
Front Mount
1X
F10
F9
F5
F15
F12
F3
F2
F1
F4
