Sim2 CRYSTAL4-SH - Connectivity; Input;Output Ports and Signal Types

CRYSTAL4-SH
User Guide
20

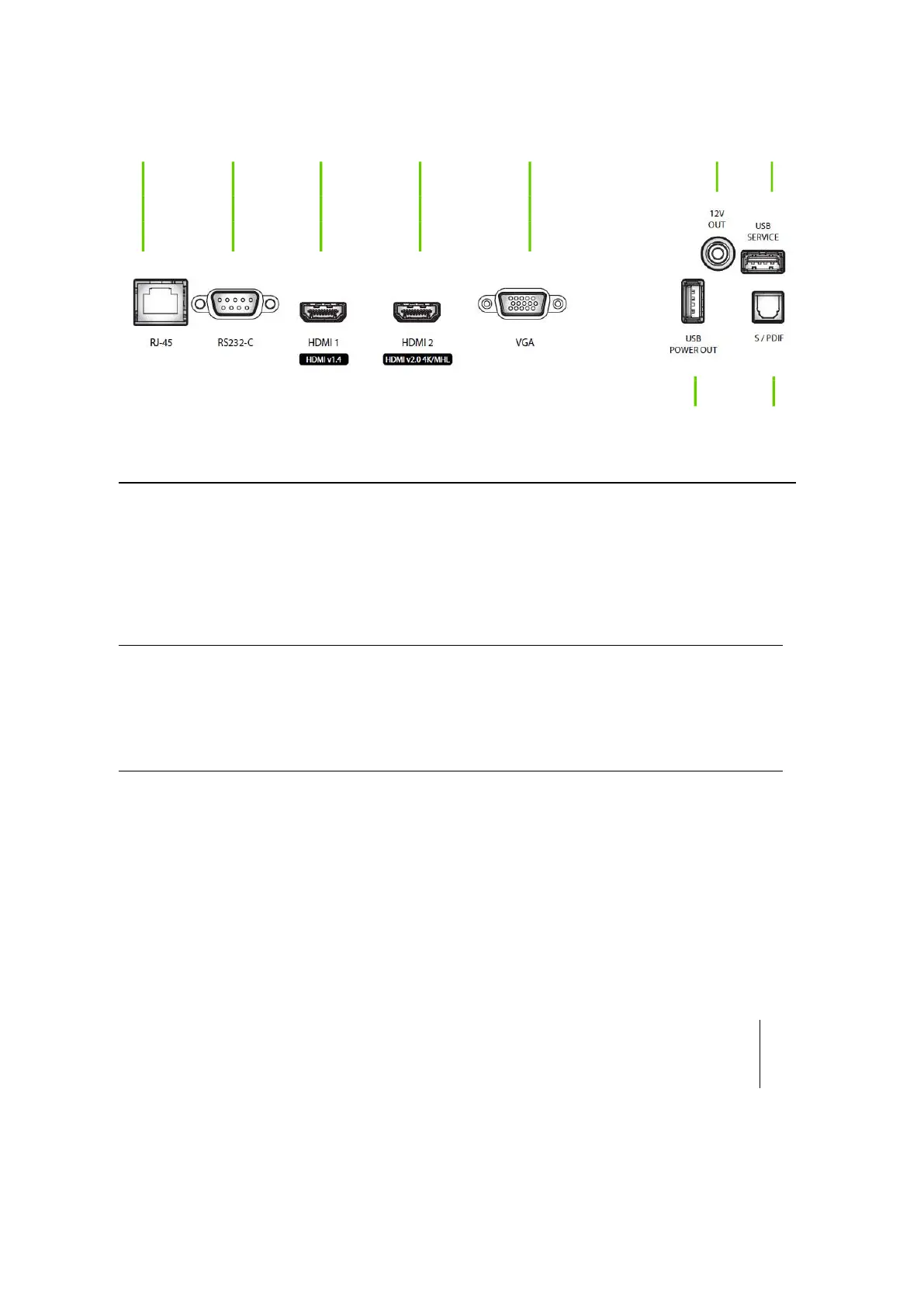

Connections
A B C D E F G
H I
Inputs
C
HDMI 1
v1.4a, HDCP 1.4 FHD
D
HDMI 2
v2.0, HDCP 2.2 UHD
, HDR/H
LG
, MHL 2.1
E
VGA/YPbPr
VESA HD15. Support YpbPr.
A
RJ45 Ehternet interface for commands and control. Support web
control.
K
Wired RC
Wired IR receiver
Control/
Service
G
USB SERVICE USB-A Software update
B
RS-232 RS232 (female D-Sub 9-pin) port for serial commands and
firmware upgrade.
H
USB POWER
USB type A, charger 5V/1.5A
Outputs
F
12V Trigger DC 12V 500mA max, 3.5mm jack female
I
S/PDIF Digital audio, Toslink connector
