Mechanical Lens Shift, Focus and Zoom
Mechanical Lens Shift
The CRYSTAL4-SH provides manual Vertical Shift controls.
Shift Vertical: +15%.
Use the Allen Screw (of 4mm or 0.15748 inch) available in the standard accessories in
the package.

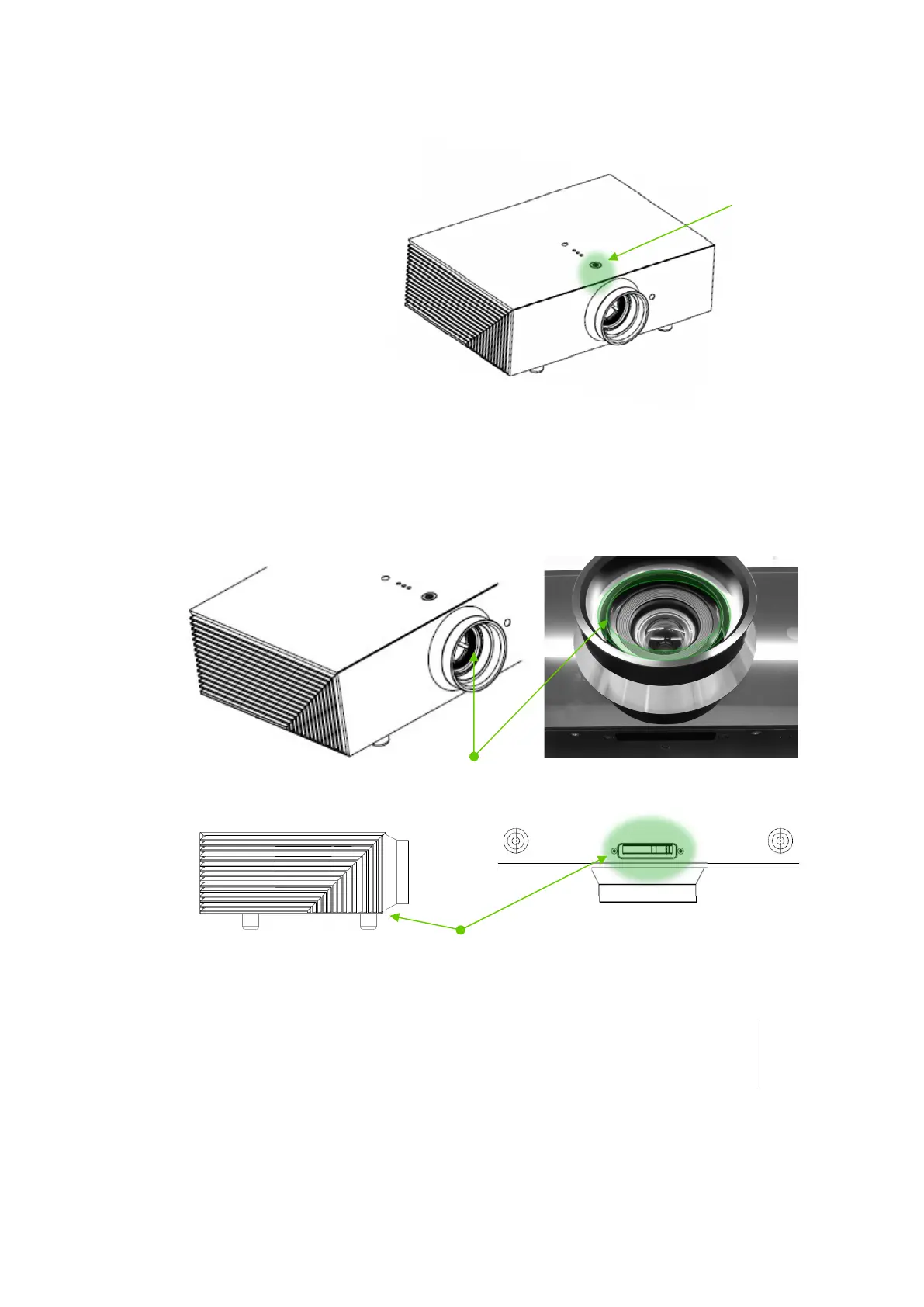

Mechanical Lens Shift and Zoom
The CRYSTAL4-SH provides manual Focus and Zoom controls
Zoom ratio: 1.6 x.
A
Zoom adjustment
Bottom view
Focus adjustment
