Part 3: Installation

■

Appliance layout anddimensions

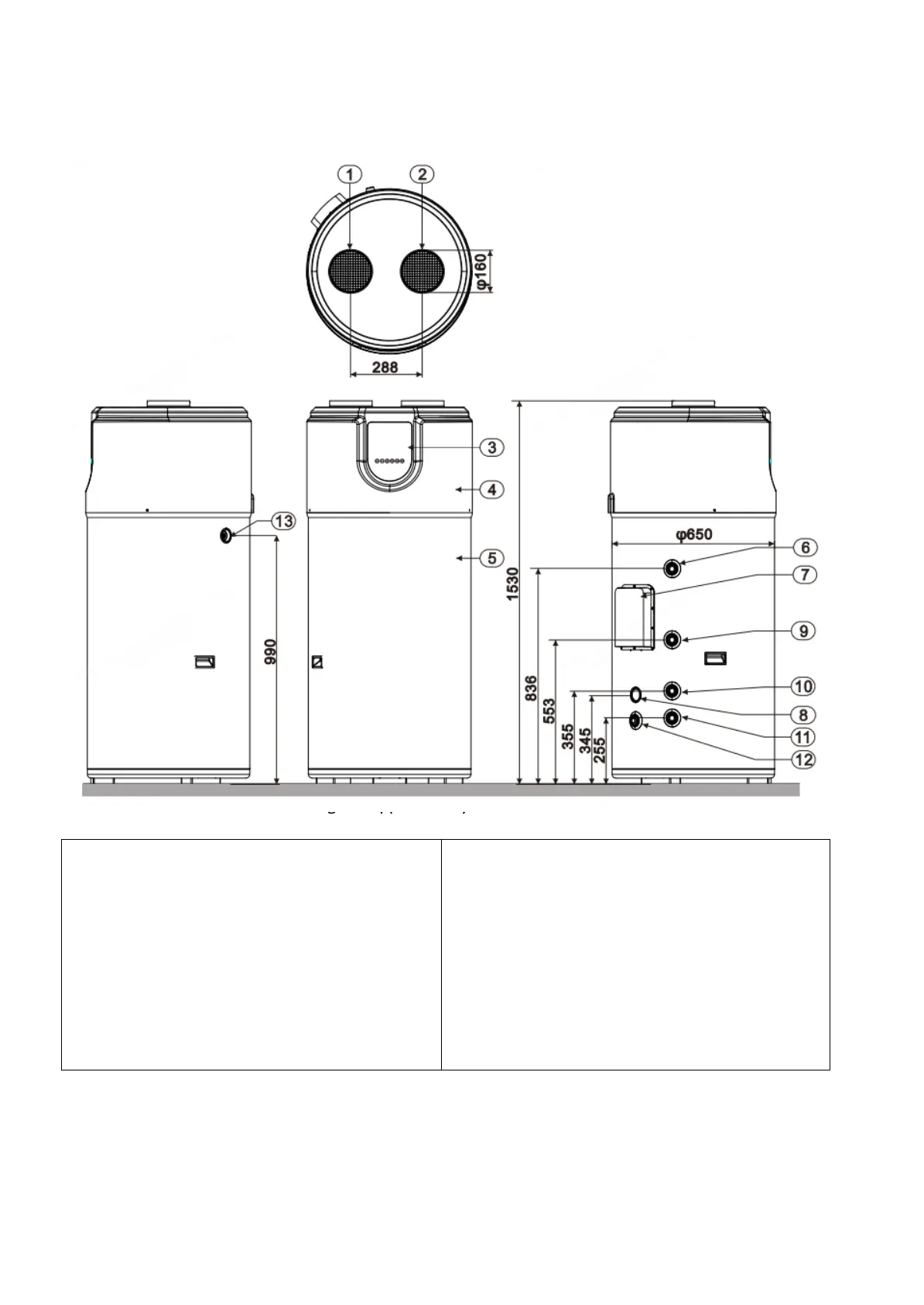

Fig.3.1 Appliance layout and dimensions

Part names: ECOMAXI VB 200 S

1. Air inlet –φ160mm

2. Air outlet –φ160mm

3. Control panel

4.Housing cover

5.Water tank – 200 litre

6.Hot water outlet –G 3/4" F

7.Electrical box (containing non-self-

resetting thermal cut-out, electric heating

element and electronic anode)

8.Magnesium rod

9.Solar energy inlet –G 3/4" F

10.Solar energy outlet –G 3/4" F

11.Cold water inlet –G 3/4" F

12.Sewage water outlet –G 3/4" F

13.Condensate outlet –G 1/2" F
