Sime MACK 3 - Boiler Fixing; 3 Installation; Overall Dimensions

2683
3
GB

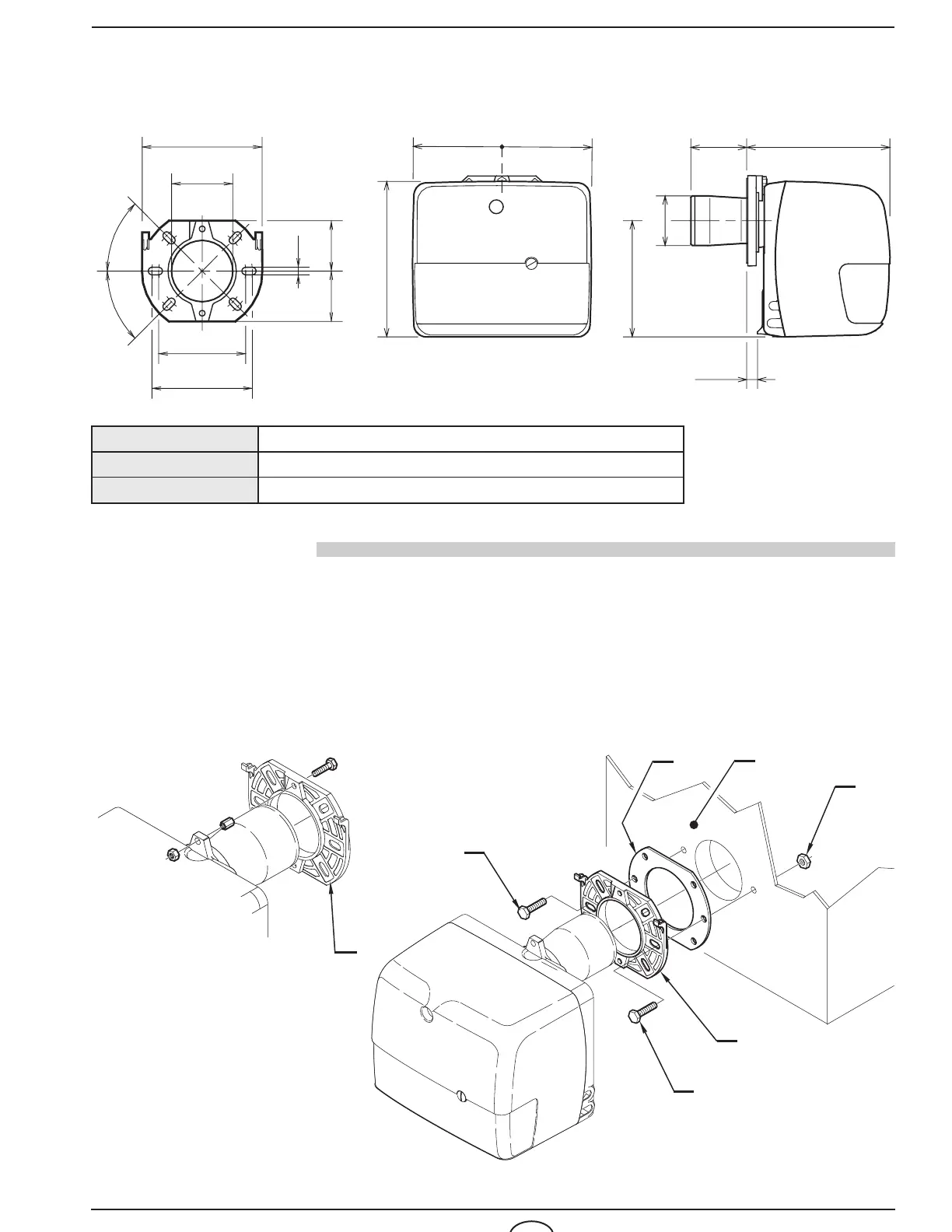

2.3 OVERALL DIMENSIONS
3. INSTALLATION
3.1 BOILER FIXING
➤
Put on the flange (1) the screw and two nuts, (see fig. 2).
➤
Widen, if necessary, the insulating gasket holes (5).
➤
Fix the flange (1) to the boiler door (4) using screws (2) and (if necessary) the nuts (3) interposing the
insulating gasket (5)
, (see fig. 3).
Model A B C D
ø
E F G
MACK 3 268 229 208 86 89 170 10
MACK 4 - MACK 5 285 249 230 86 89 186 16
Flange Burner
A D C
130
=
G
45
°
ø E
B
11
F
D6262
=
91
72 72
150
45
°
180
D5908
Fig. 2
E9132
1
1
E9131
Fig. 3
4
3
2
2
5
