BOLLITORE
PARAMETER SETTING
MURELLE HM 25 T - 35 T with
D.H.W sensor to be set:
PAR 2 = 3
MURELLE HM 25 T - 35 T only
for heating to be set:
PAR 2 = 5
Alternatively it is possible to
use a TA connected to the
entrance TA1.
R
M
SE
TA2
TA1
SE
TA1
SI
RL2
P2
P1
PB
RL1
BOLLITORE
PB
SB
SB
R
M
SE
CT2
TA1
SE
CT1
SI
RL2
P2
P1
TA2
RL1
ZONA
GIORNO
(70°C)
ZONA
NOTTE
(50°C)

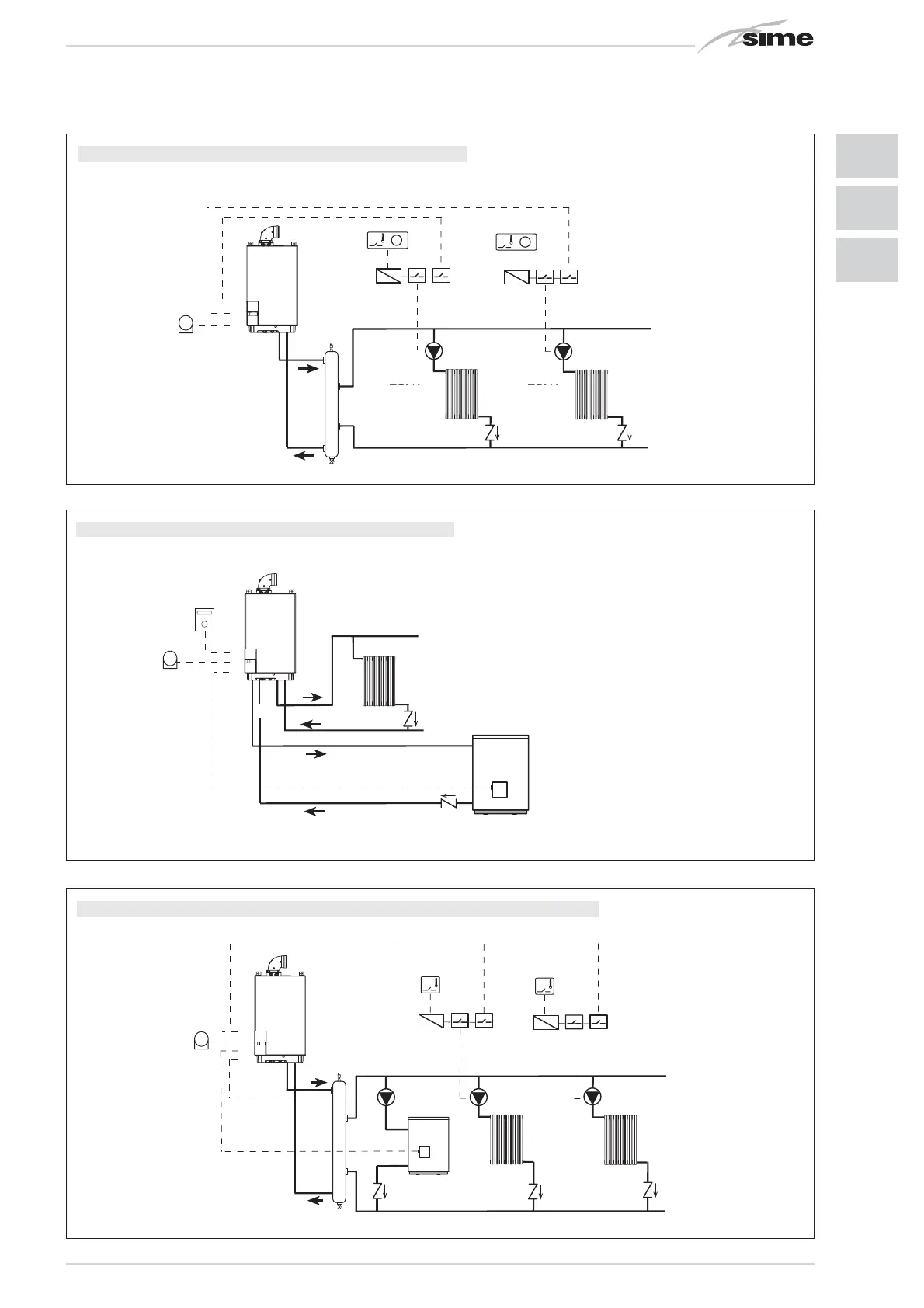

8 SYSTEM WITH DOUBLE TEMPERATURE OUTPUT
MULTI-ZONE SYSTEM WITH PUMP, CHRONOTHERMOSTAT AND EXTERNAL SENSOR (supplied with)
9 SYSTEM WITH REMOTE BOILING UNIT
10 SYSTEM WITH REMOTE BOILING UNIT AFTER THE HYDRAULIC SEPARATOR
DAY
ZONE
(70°C)
NIGHT
ZONE
(50°C)
D.H.W. TANK
D.H.W. TANK
