1.3 TECHNICAL FEATURES
19 26 37 48 55
Heat output kW 22,0 30,5 39,1 48,8 60,7
kcal/h 18.900 26.200 33.600 42.000 52.200
Heat input kW 25,0 34,8 44,8 55,0 69,2
kcal/h 21.500 29.900 38.500 47.300 59.500
Number of sections 34567
Water content l10 13 16 19 22
Power consumption W
16-100* 16-100* 16 16 16
Maximum water head bar44444
Maximum temperature °C 95 95 95 95 95
Expansion vessel
Water content/Preloading pressure l/bar 8/1 10/1 – – –
Smokes temperature ° C 119 118 110 13 0 141
Smokes flow gr/s 24,7 34,7 52,2 53,1 59,2
Category II
2H3+ II2H3+ II2H3+ II2H3+ II2H3+
Type B11BS B11BS B11BS B11BS B11BS
Weight kg 101-113* 126-138* 150 176 202
Main burner nozzles
Quantity n° 22333
Methane/G30 - G31 ø mm 3,15/1,80 3,65/2,10 3,40/1,95 3,90/2,20 4,05/2,45
Gas consumption **
Methane m
3
/h 2,64 3,68 4,73 5,82 7,32
Butane (G30)/Propane (G31) kg/h 1,97/1,94 2,74/2,69 3,53/3,47 4,34/4,27 5,45/5,37
Burner gas pressure
Methane mbar 9,8 9,6 9,6 9,1 11,5
Butane (G30)/Propane (G31) mbar 28/35 28/35 28/35 28/35 28/35
Gas supply pressure
Methane mbar 20 20 20 20 20
Butane (G30)/Propane (G31) mbar 30/37 30/37 30/37 30/37 30/37
* “PVA” vers. ** The gas consumptions refer to the calorific value at standard conditions at 15°C - 1013 mbar

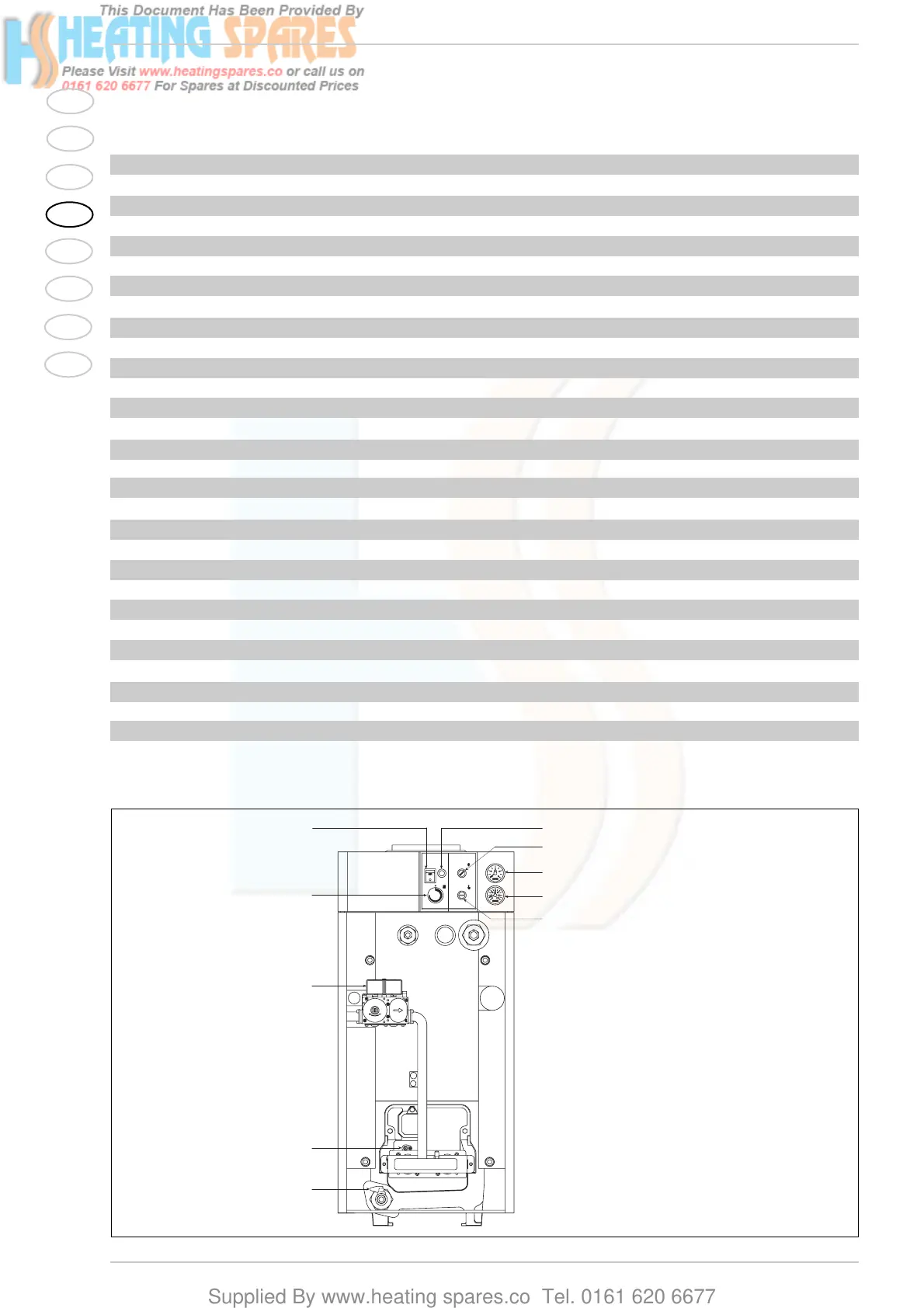

1.4 MAIN COMPONENTS
Fig. 2
1
2
3
5
6
11
15
16
4
10
KEY
1 Main switch
2 Lock out lamp
3 Smoke stat
4 Hydrometer
5 Thermometer
6 Safety stat
10 Drain cock (1/2”)
11 Detection electrode
15 Gas valve
16 Boiler stat
